Ignition Switch C1 Connector End View

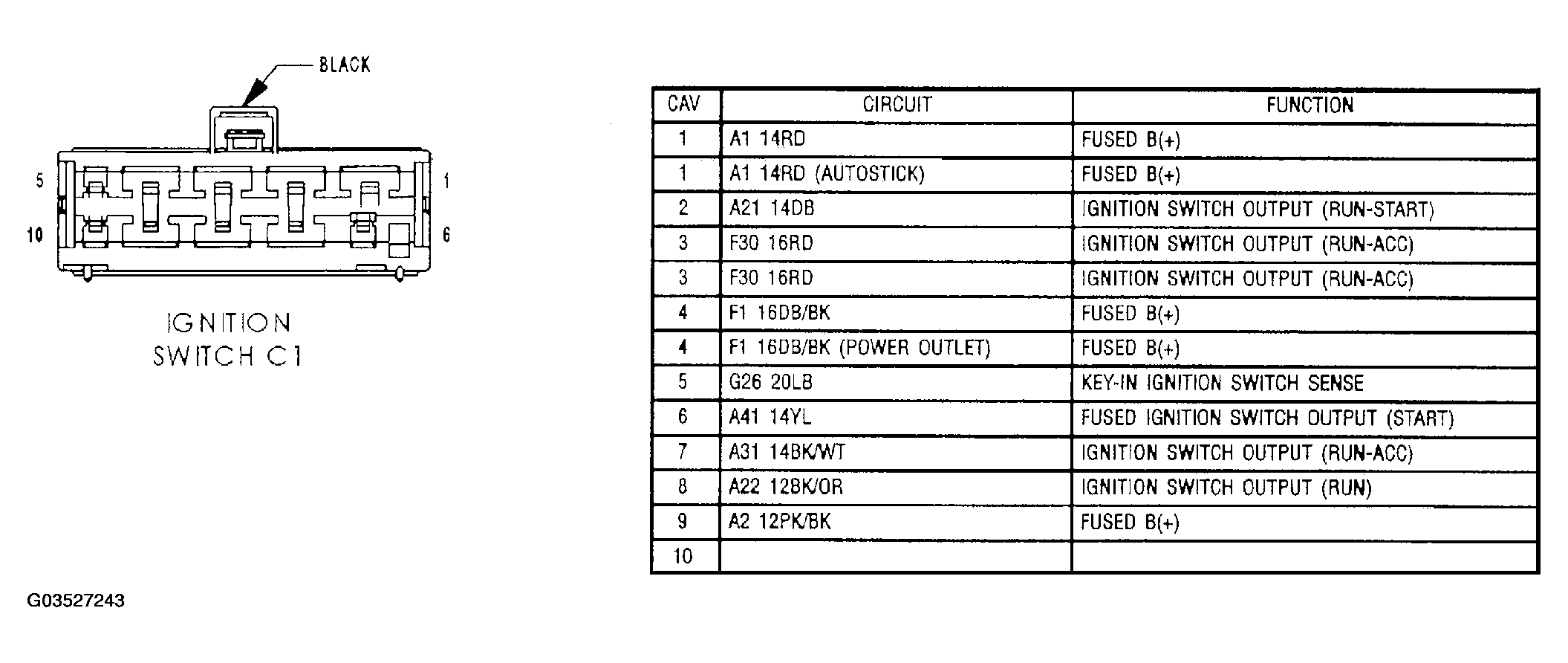

Fig 1: Ignition Switch Connector End View (C1)

G03527243

Courtesy of DAIMLERCHRYSLER CORP.
