C105 Connector End View

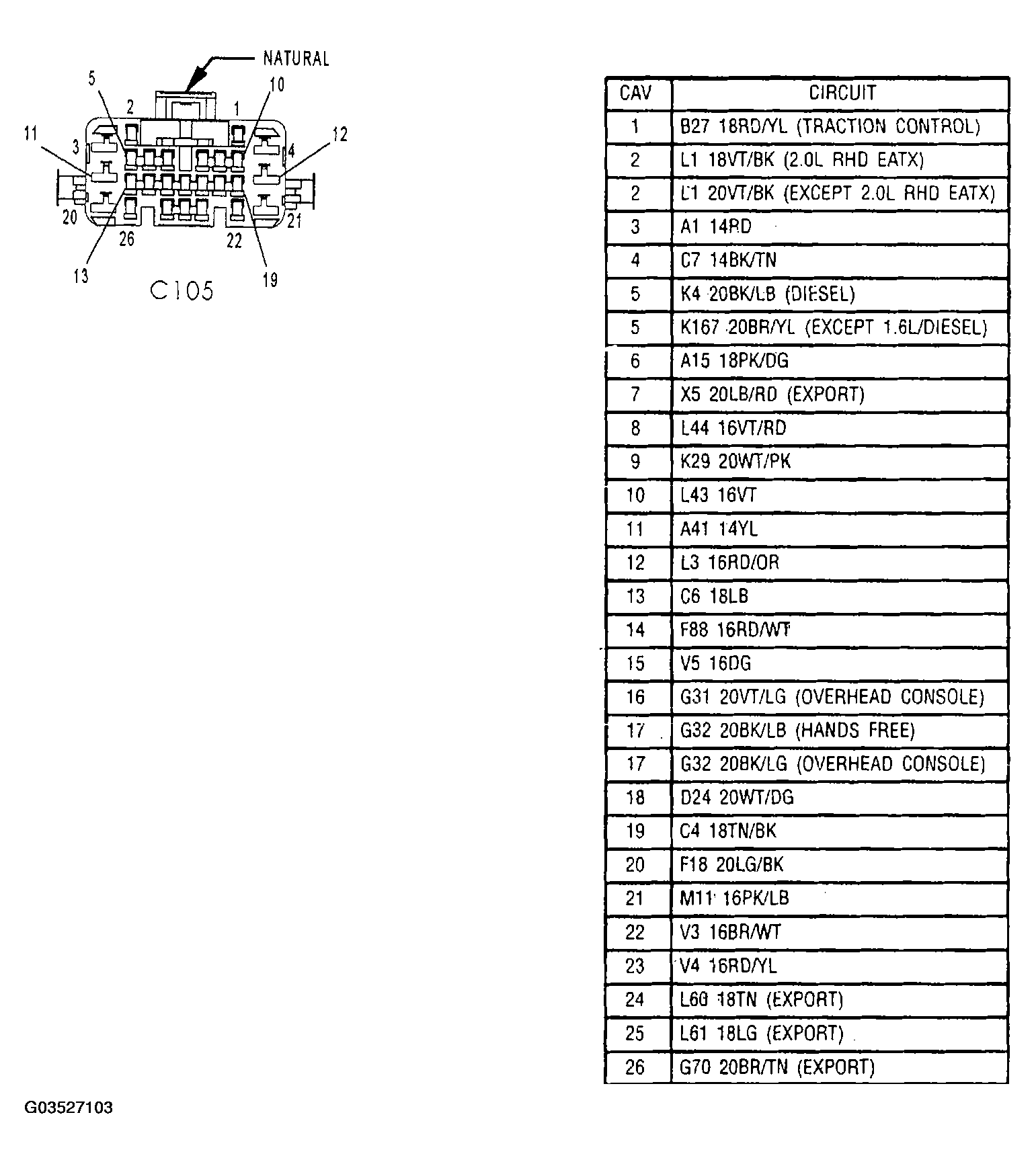

Fig 1: Headlamp & Dash Side Inline Connector End View (C105)
G03527103Courtesy of DAIMLERCHRYSLER CORP.

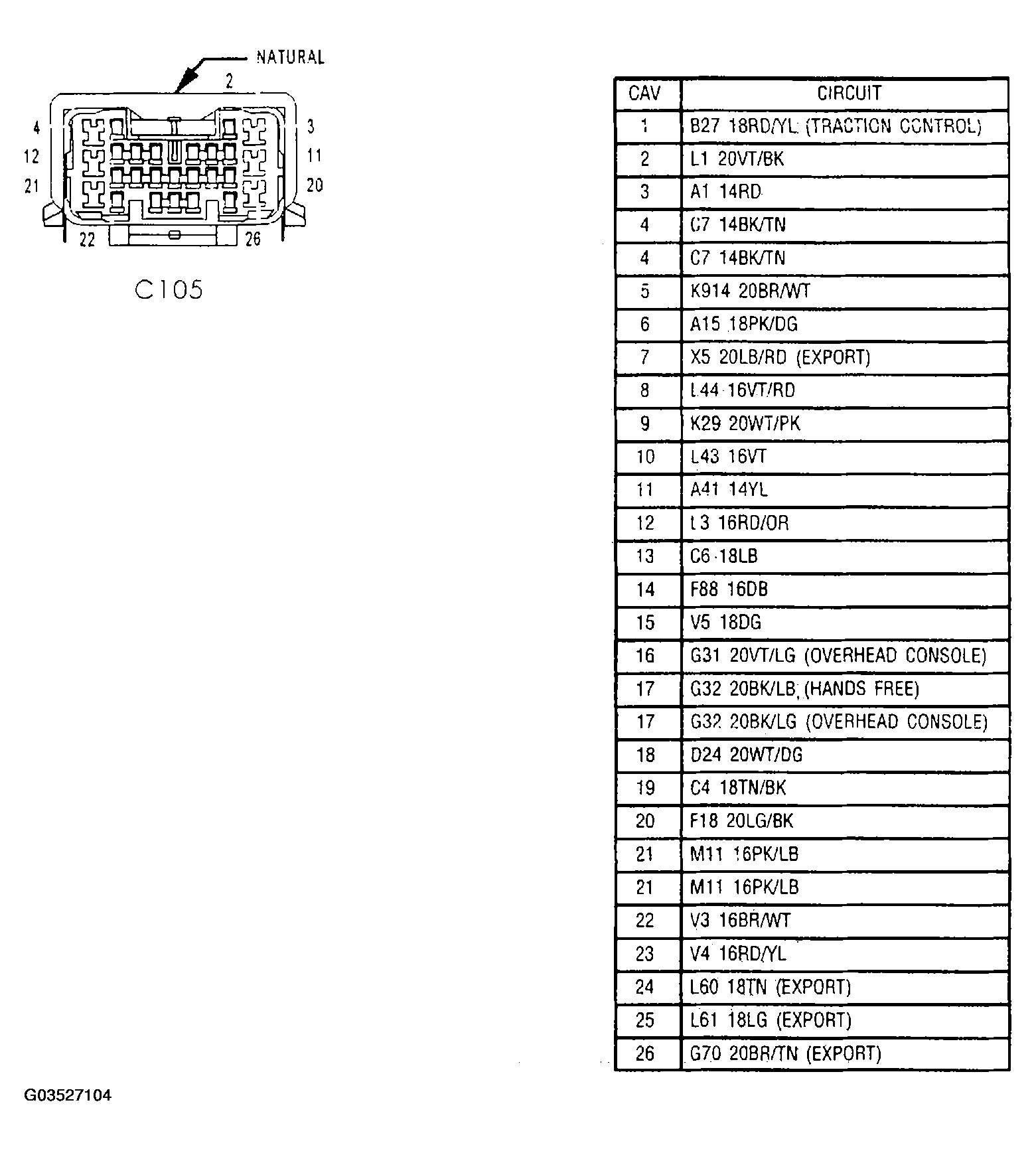

Fig 1: Instrument Panel Side Inline Connector End View (C105)
G03527104Courtesy of DAIMLERCHRYSLER CORP.
