Sunroof Trough Guide Assembly: Installation

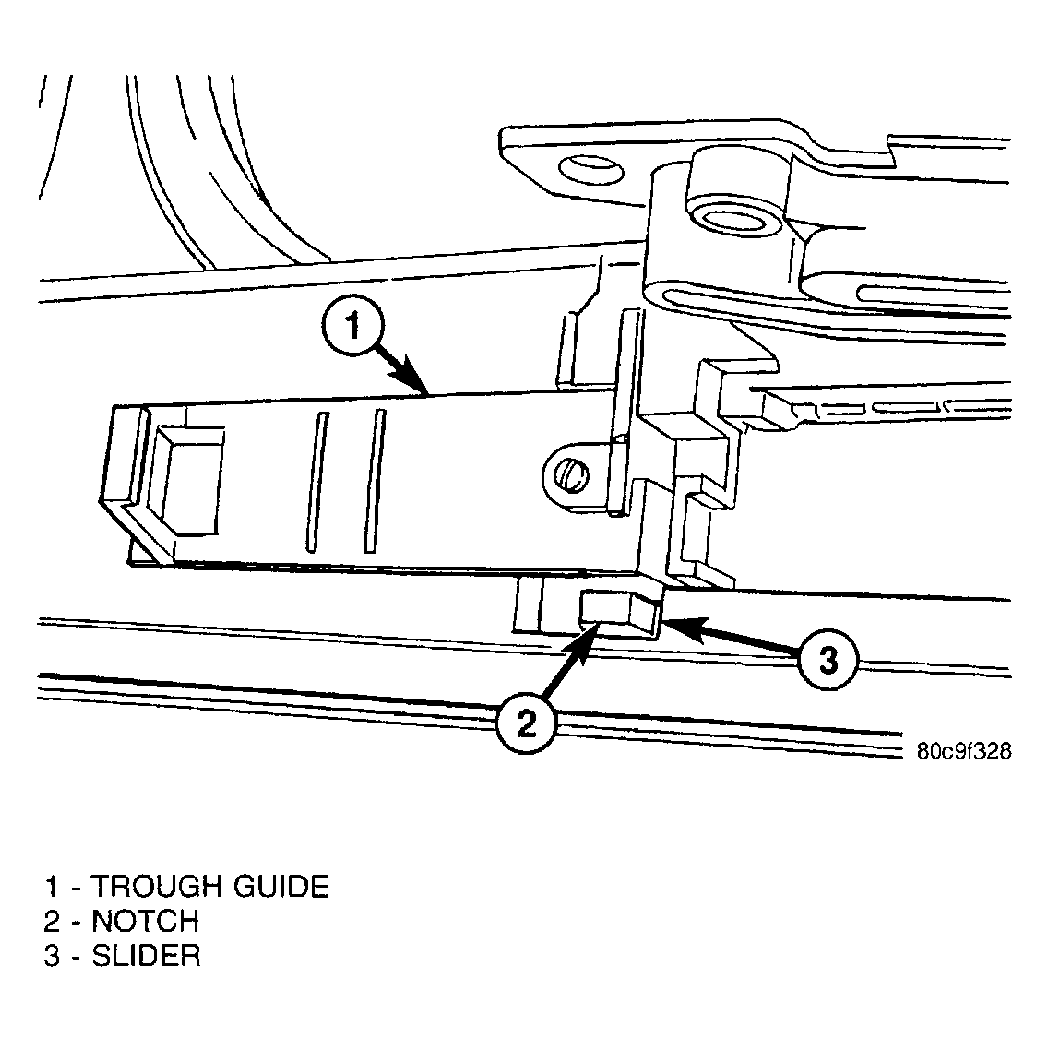

  1. Carefully twist trough guide through small slot (cut out) on track to install Figure).

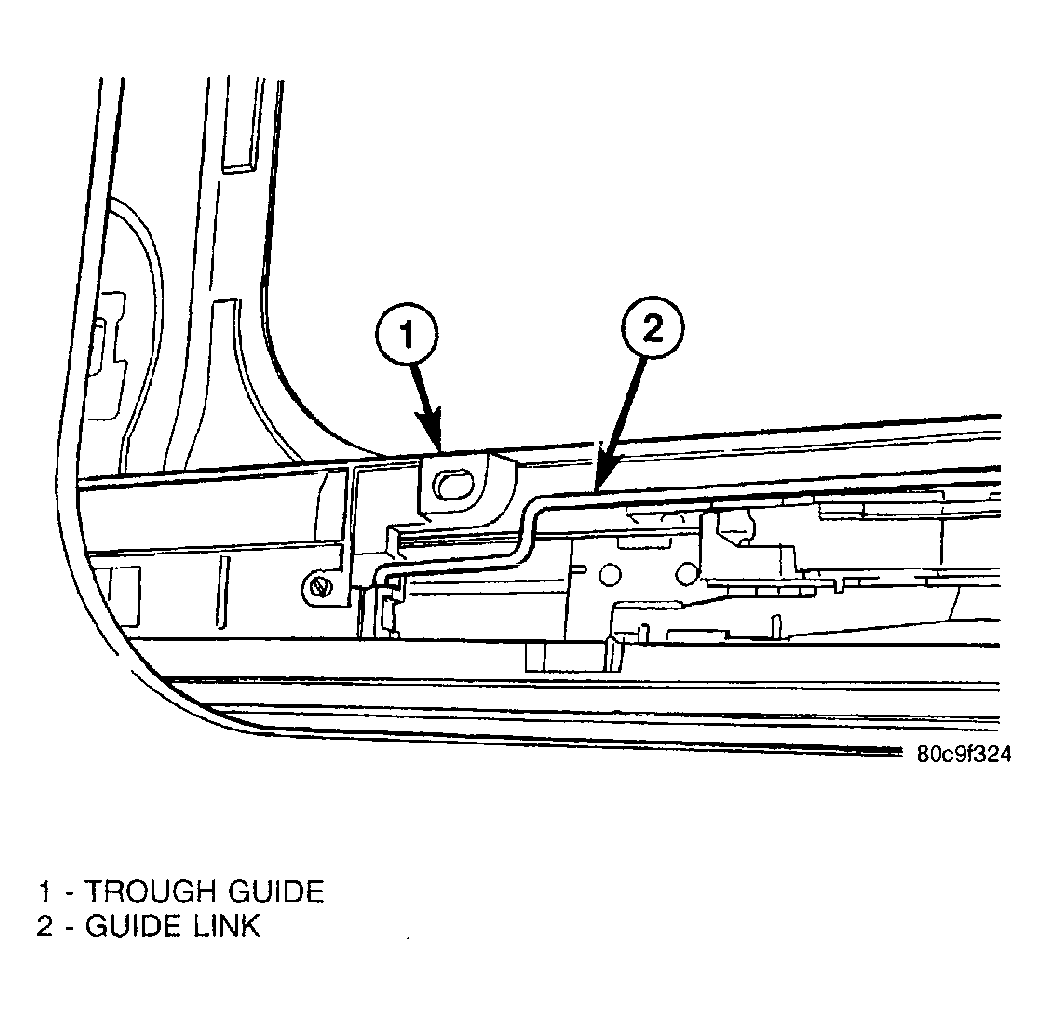

  2. Connect the trough guide wire to the lifter arm Figure).
  3. Place the trough into position on sunroof. Ensure that the trough crosses over the top of the sunshade.

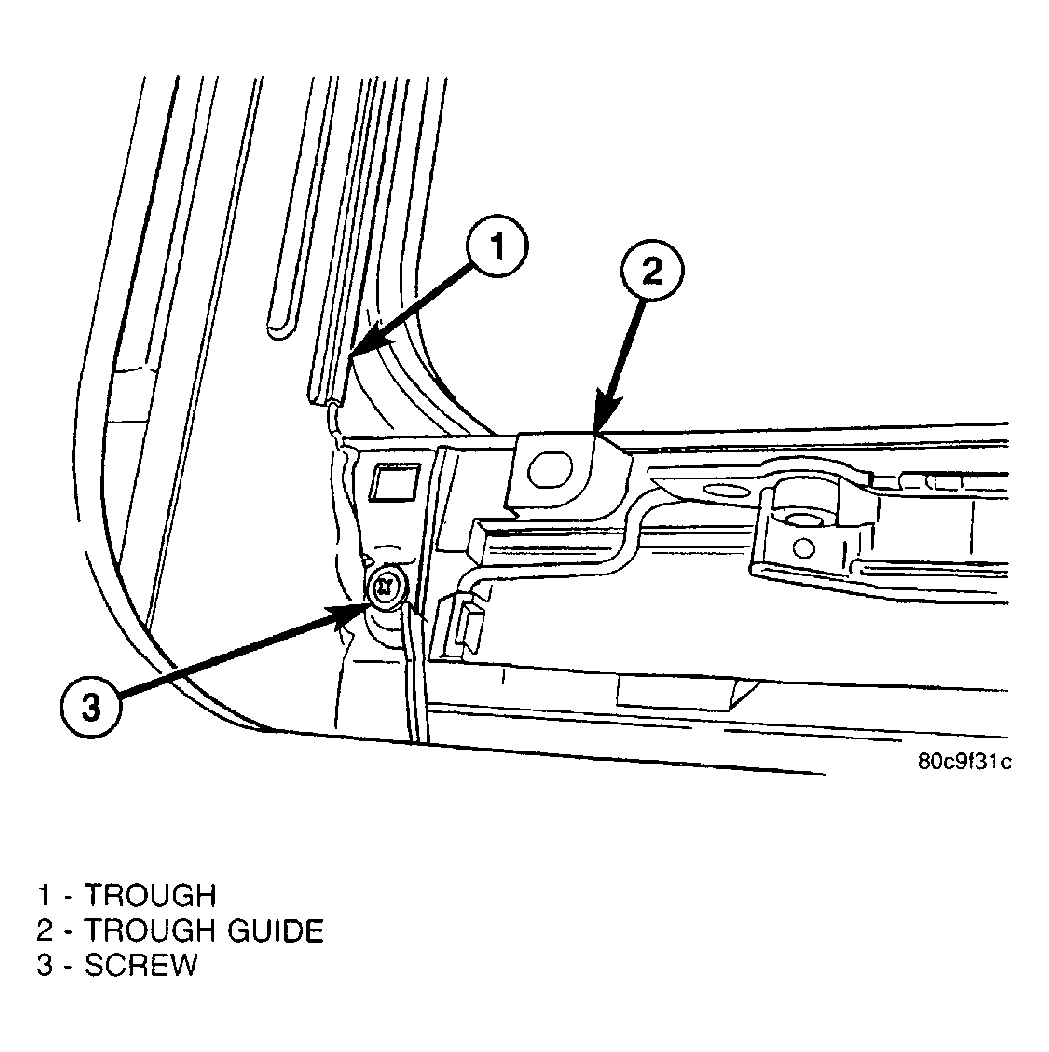

  4. Install the two screws that attach the trough to the trough guides Figure). Tighten screws to 1 N.m (9 in. lbs.) torque.
  5. Install sunroof glass panel (Refer to INSTALLATION ).
