Liftgate Lock Cylinder: Installation

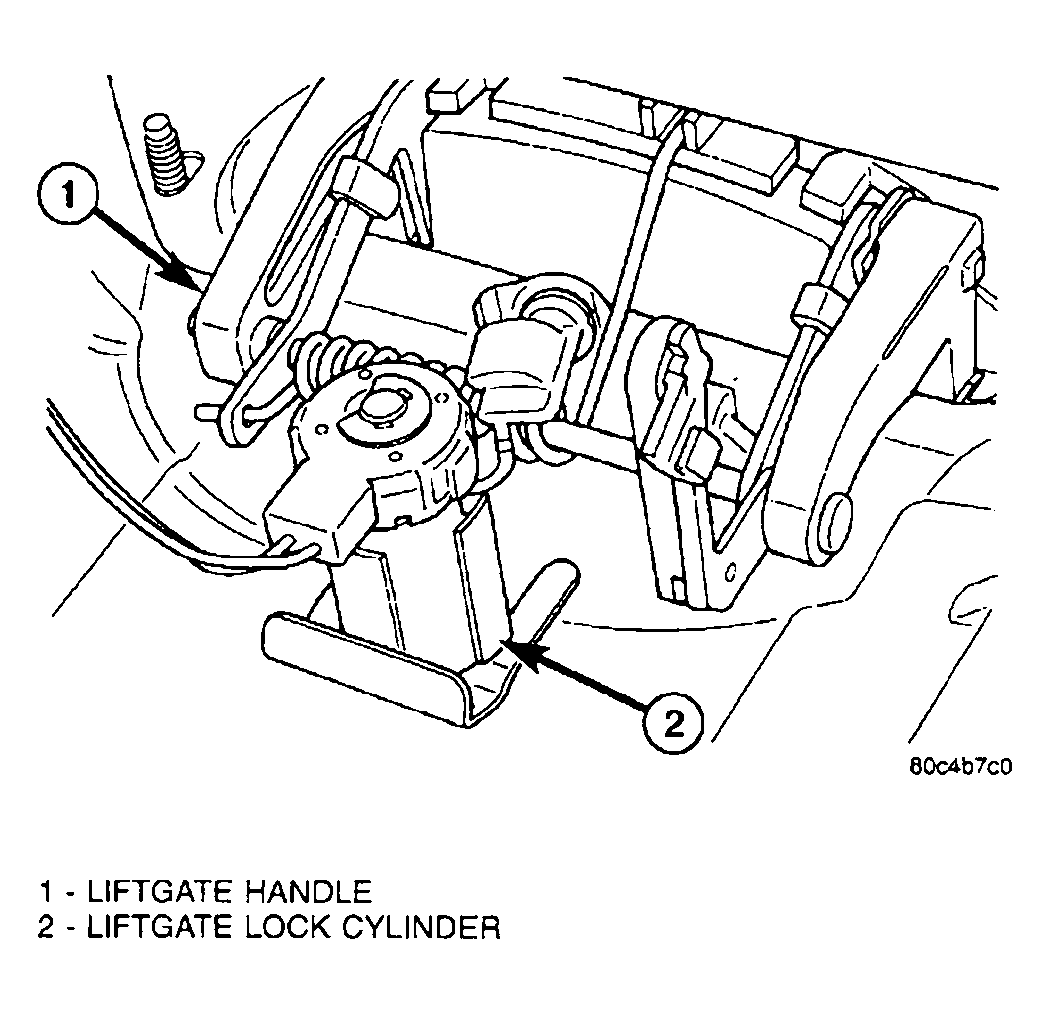

  1. Install lock cylinder clip into liftgate Figure).
  2. Push lock cylinder into handle until clip engages groove in lock cylinder with an audible click.
  3. Install outside liftgate handle.
  4. Verify lock cylinder operation.
