Interior Lighting

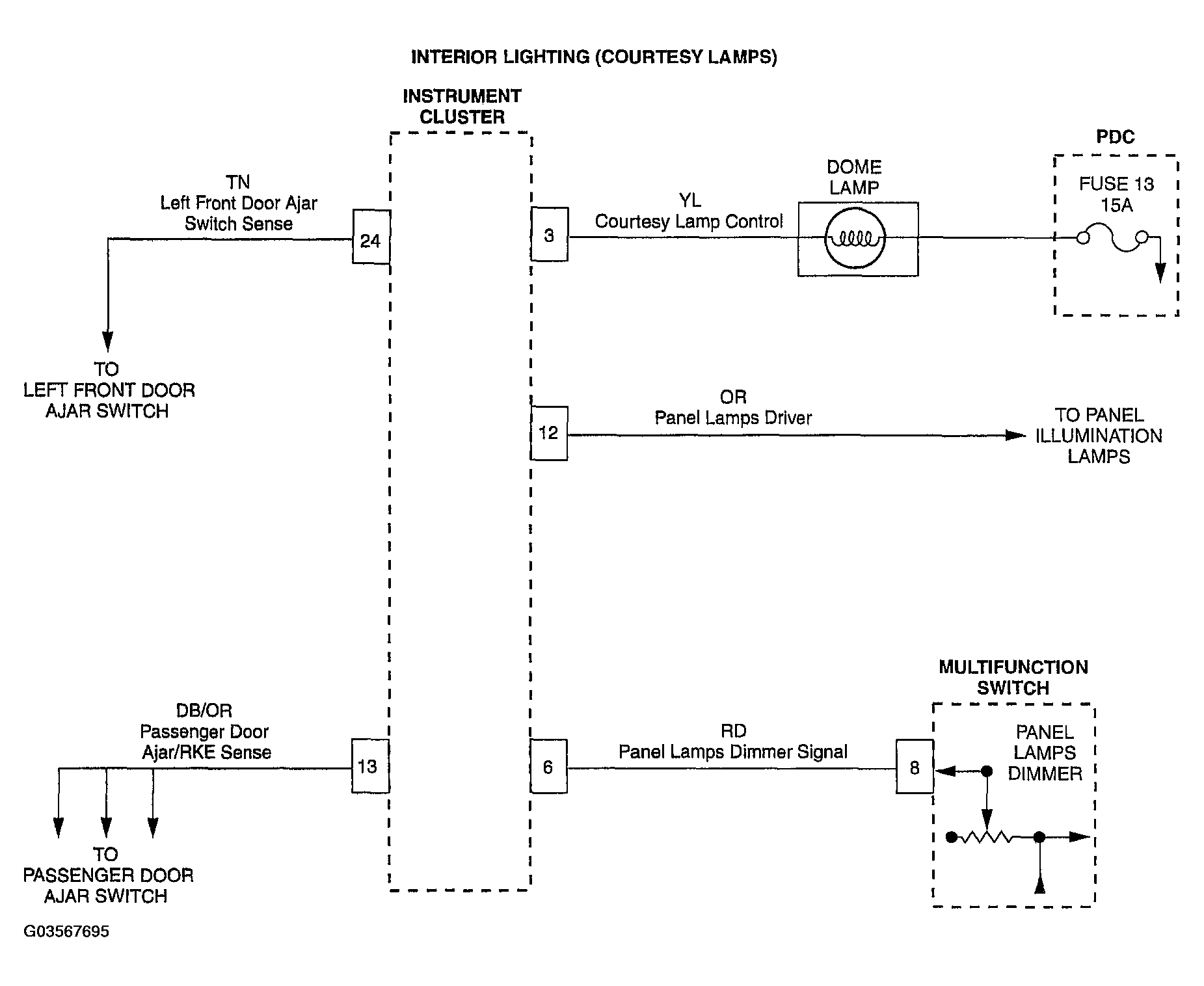

Fig 1: View Of Interior Lighting Schematic Diagram

G03567695

Courtesy of DAIMLERCHRYSLER CORP.
