Schematic Diagrams: Communication

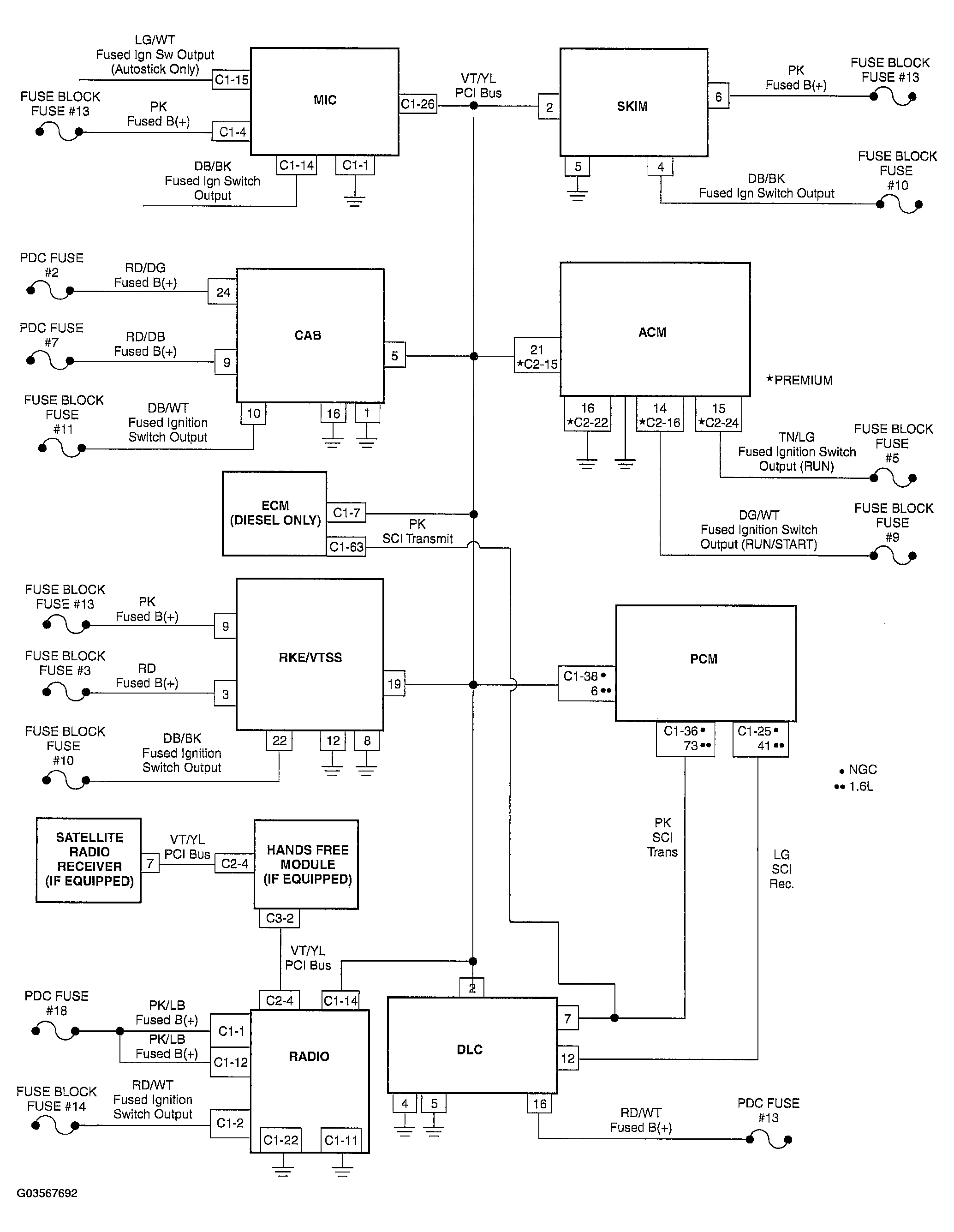

Fig 1: View Of Communication Schematic Diagram

G03567692

Courtesy of DAIMLERCHRYSLER CORP.
