Connector PINOUTS

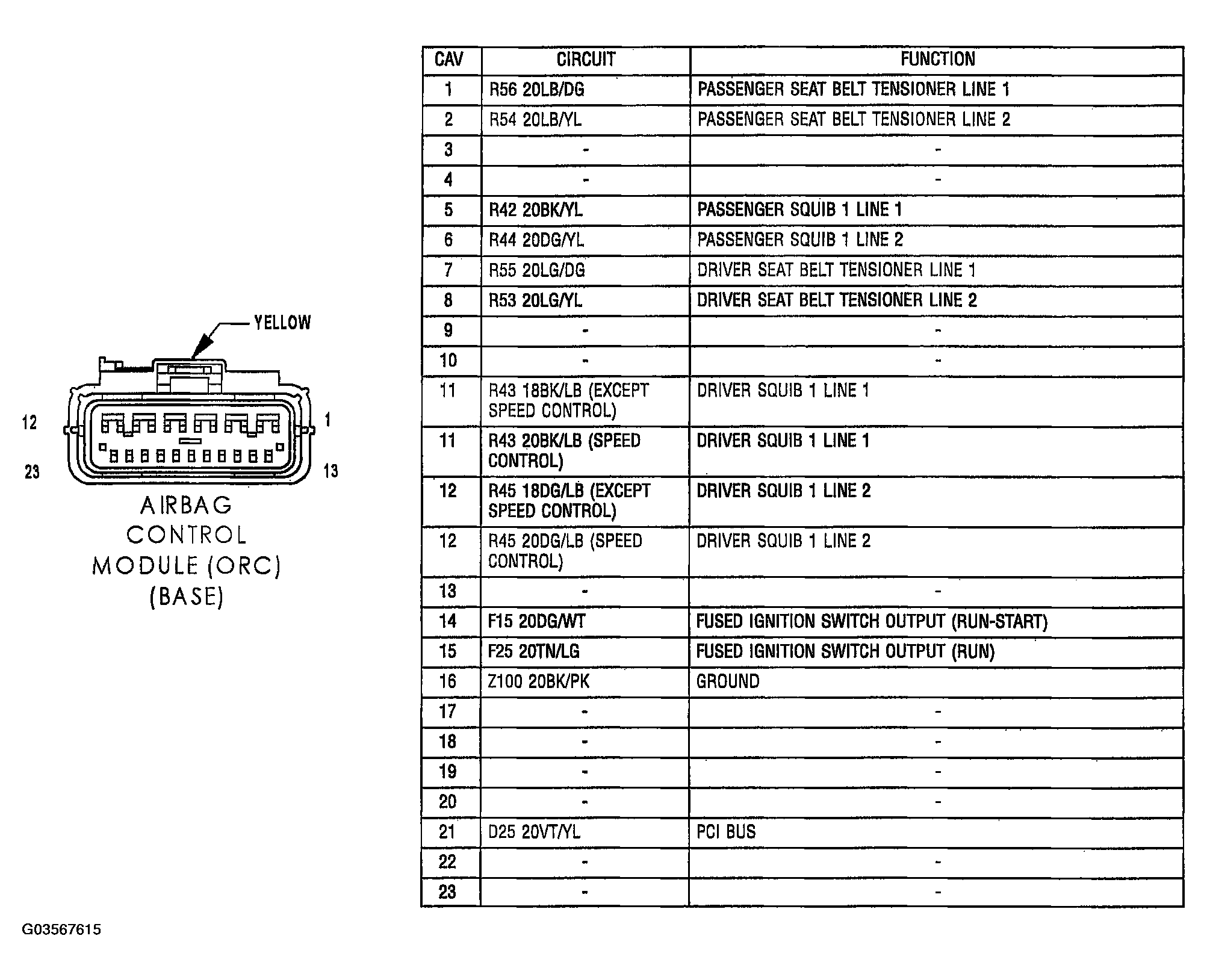

Fig 1: Identifying Airbag Control Module (Base) Connector Pinouts

G03567615

Courtesy of DAIMLERCHRYSLER CORP.

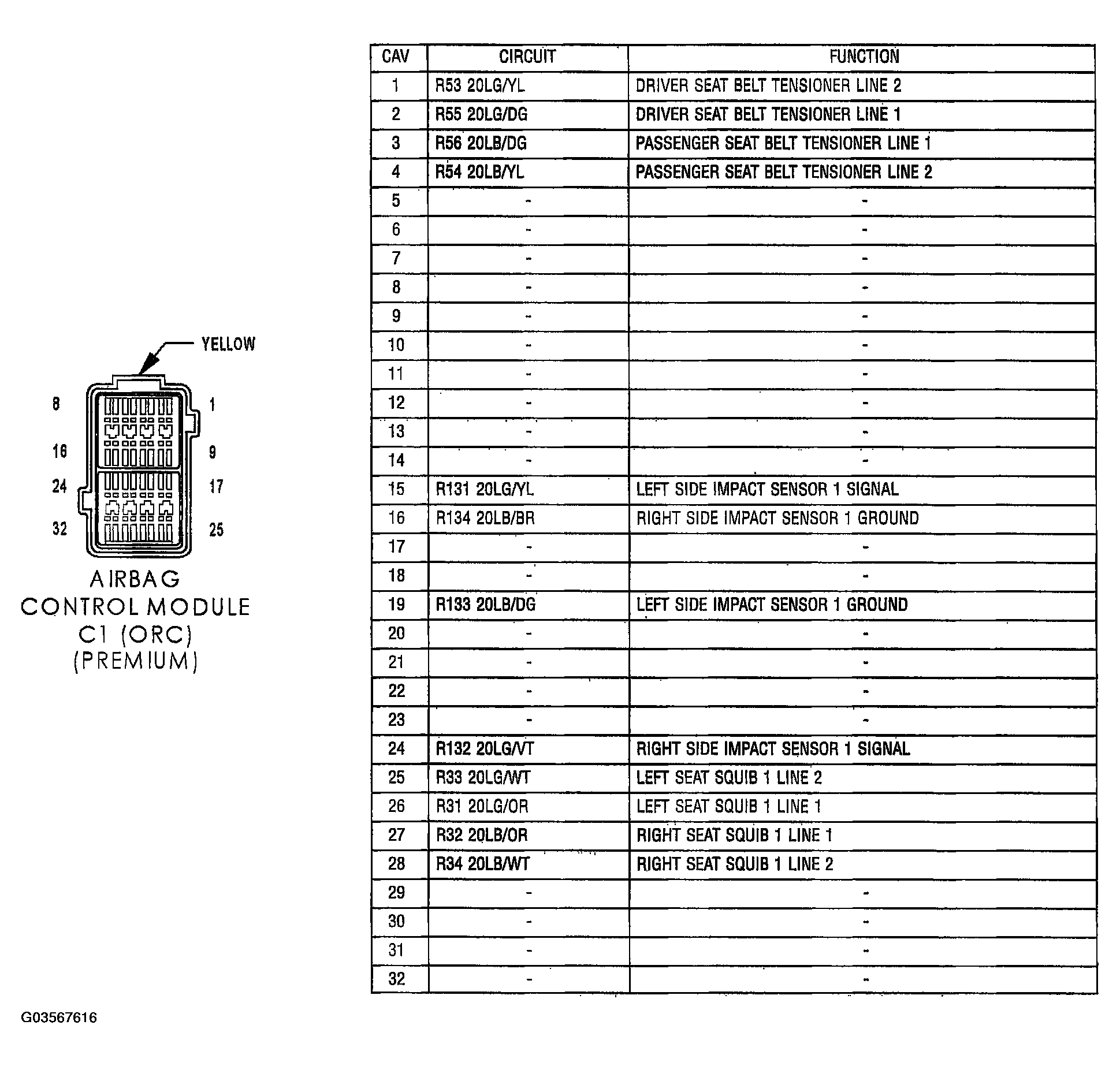

Fig 2: Identifying Airbag Control Module (Premium) Connector Pinouts

G03567616

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Identifying Airbag Control Module (Premium) Connector Pinouts

G03567617

Courtesy of DAIMLERCHRYSLER CORP.

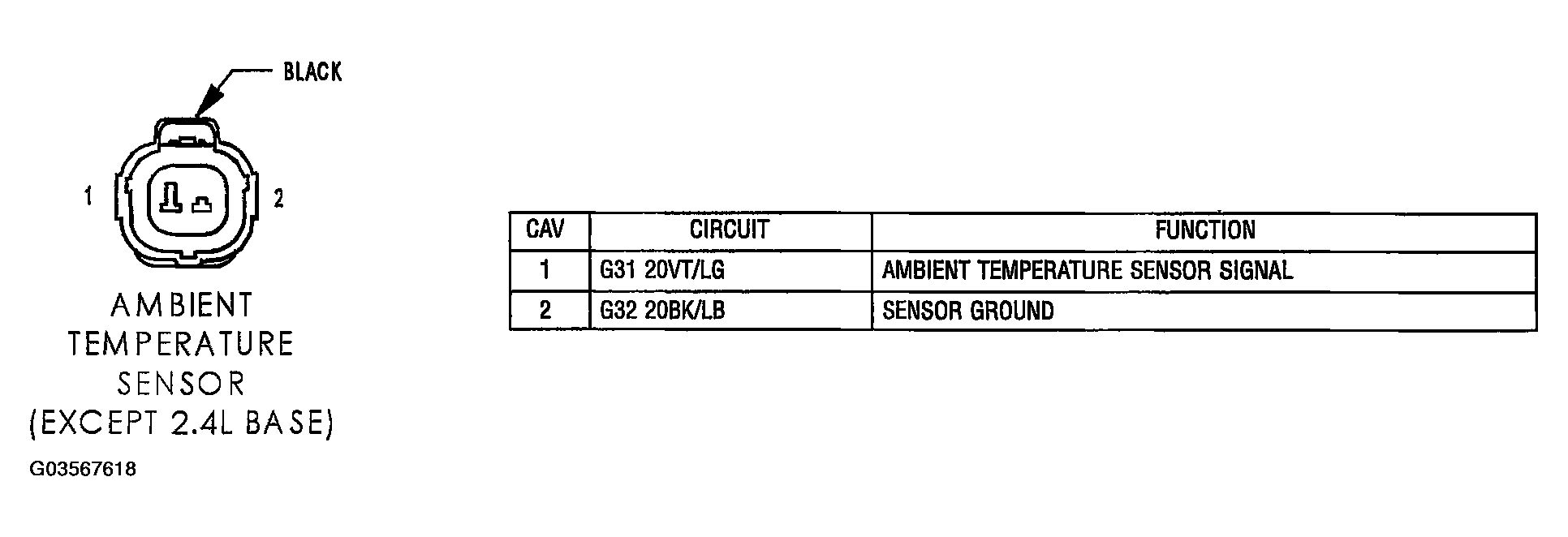

Fig 4: Identifying Ambient Temperature Sensor (Except 2.4L Base) Connector Pinouts

G03567618

Courtesy of DAIMLERCHRYSLER CORP.

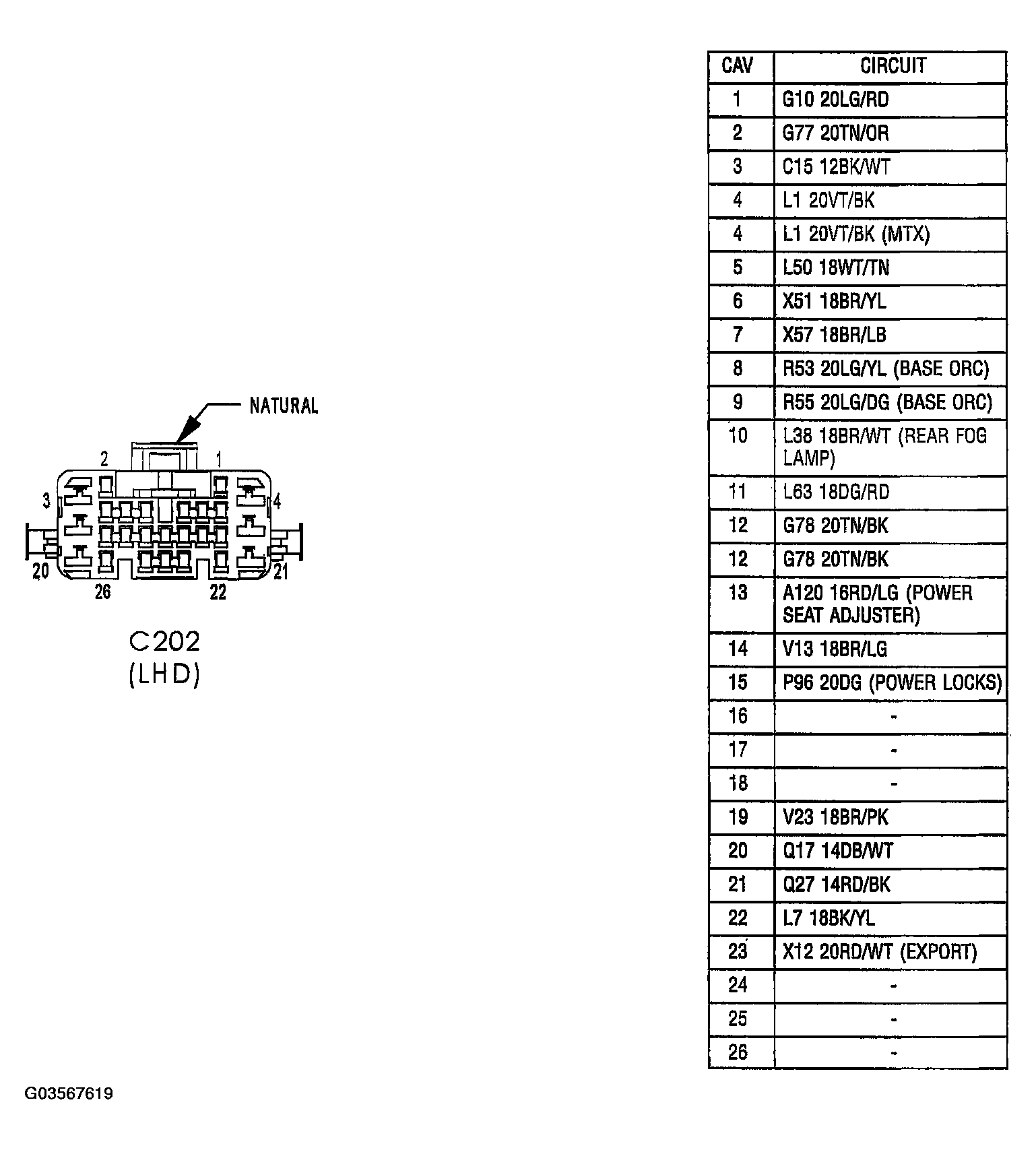

Fig 5: Identifying C202 (LHD) - Natural (Instrument Panel Side) Connector Pinouts

G03567619

Courtesy of DAIMLERCHRYSLER CORP.

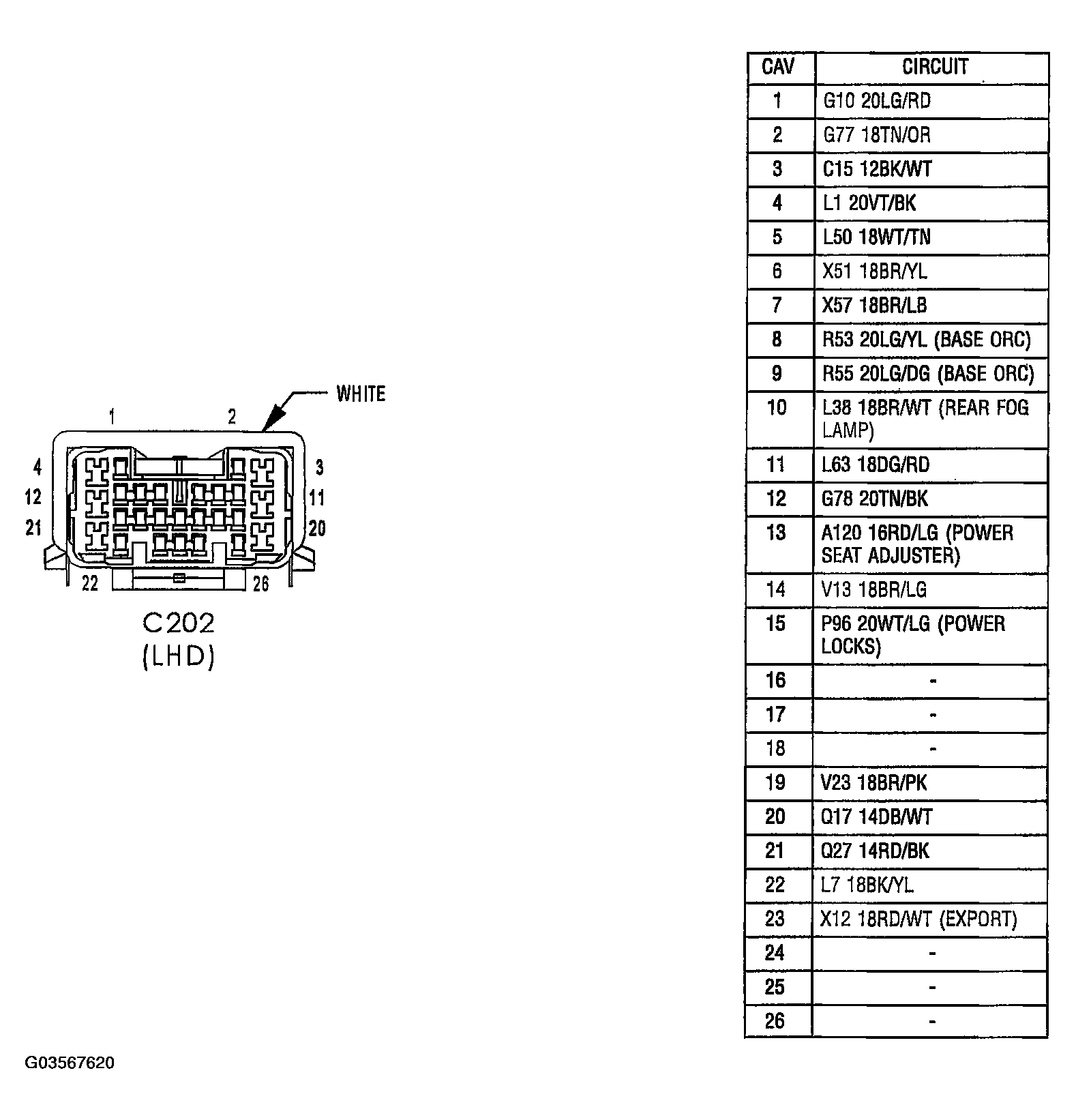

Fig 6: Identifying C202 (LHD) - White (Left Body Side) Connector Pinouts

G03567620

Courtesy of DAIMLERCHRYSLER CORP.

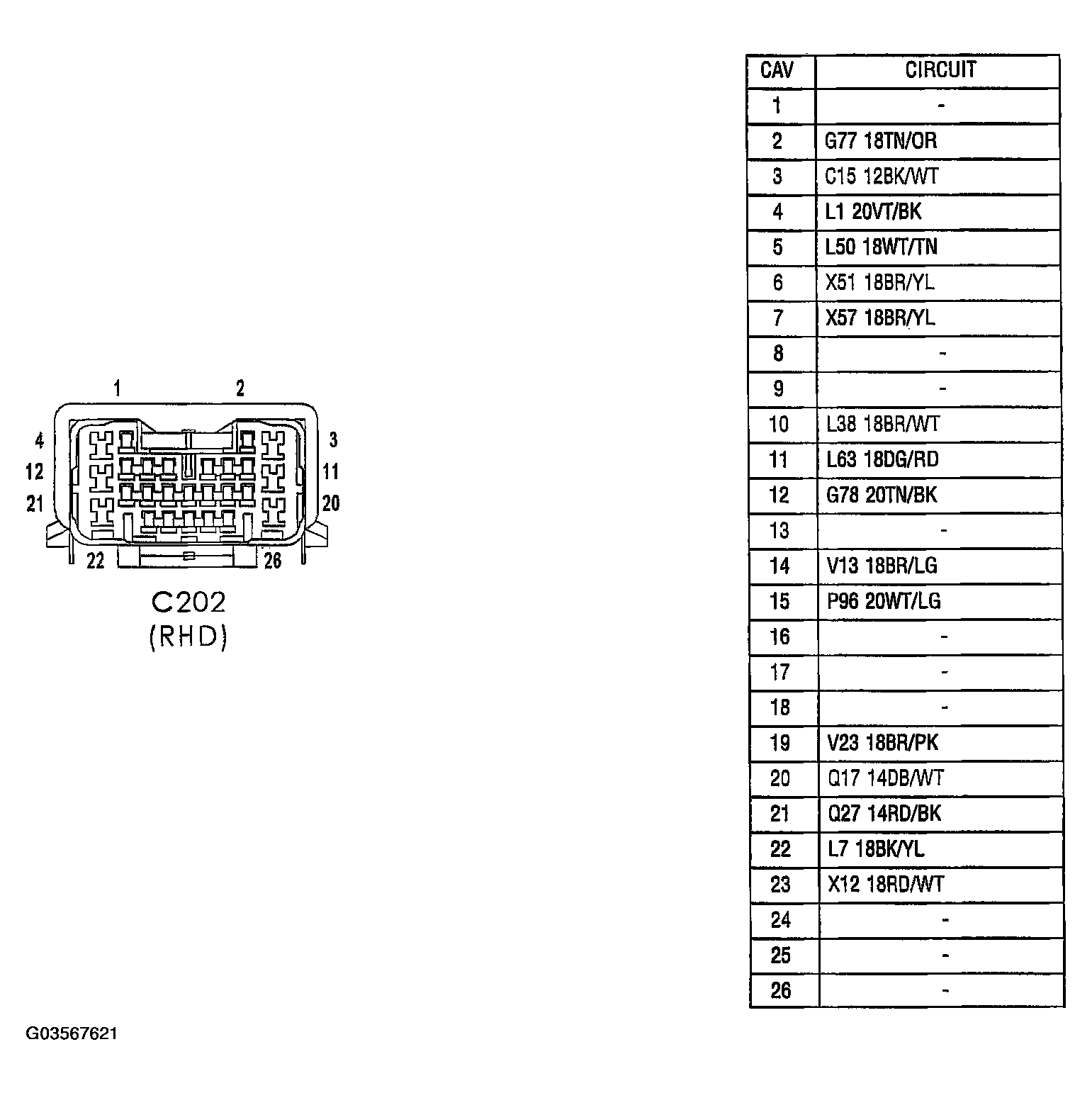

Fig 7: Identifying C202 (RHD) - (Left Body Side) Connector Pinouts

G03567621

Courtesy of DAIMLERCHRYSLER CORP.

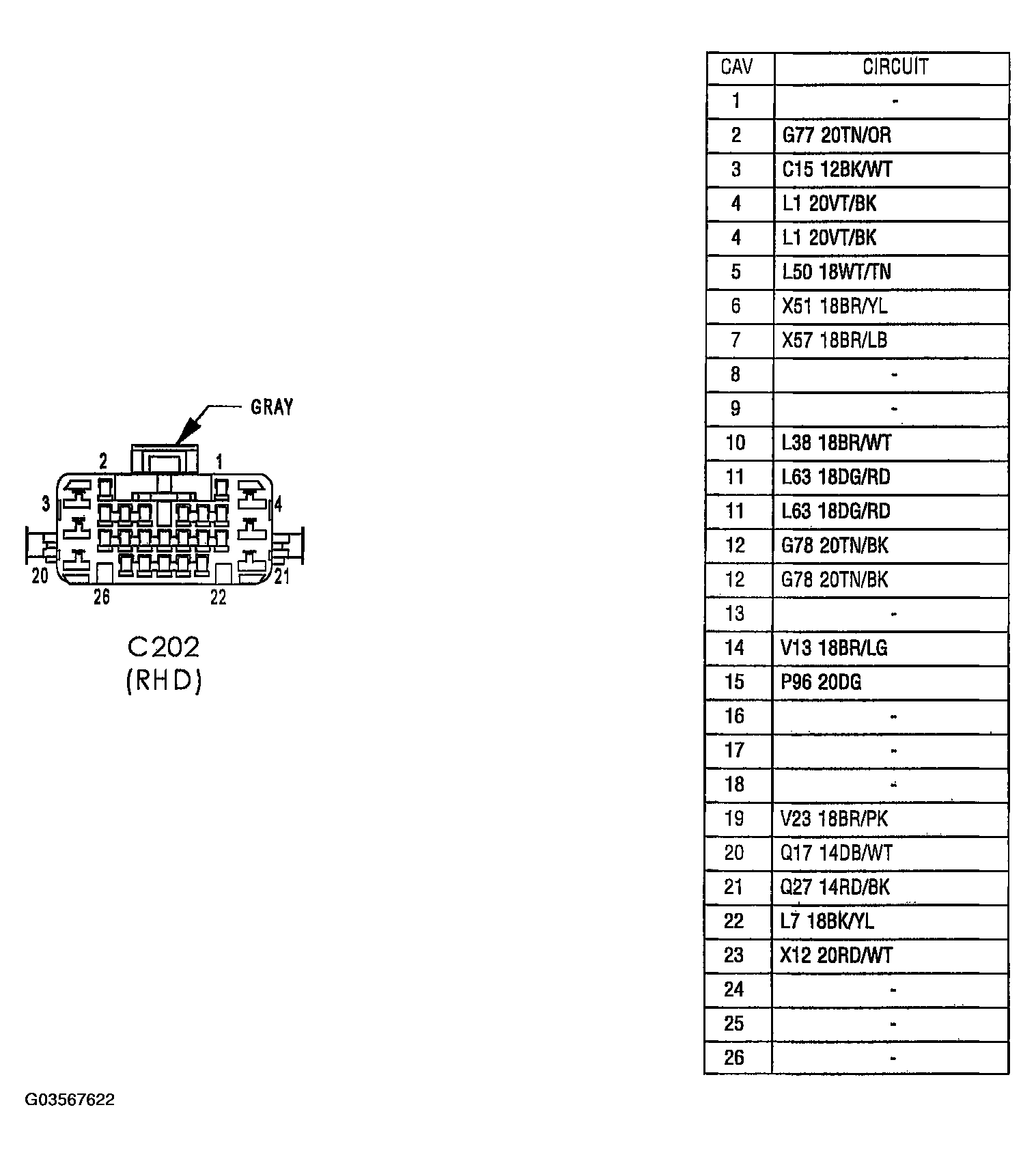

Fig 8: Identifying C202 (RHD) - Gray (Instrument Panel Side) Connector Pinouts

G03567622

Courtesy of DAIMLERCHRYSLER CORP.

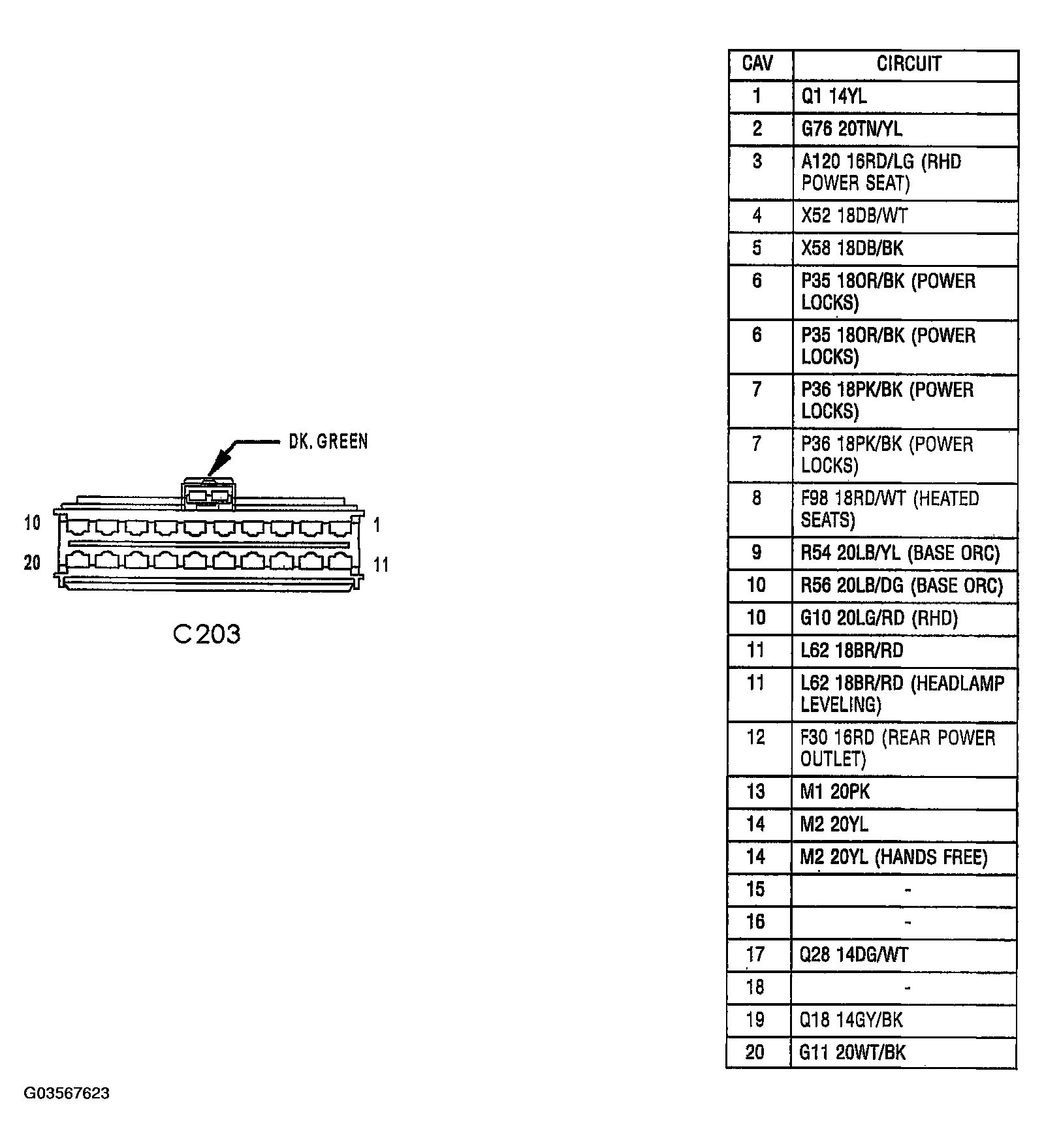

Fig 9: Identifying C203 - DK Green (Instrument Panel Side) Connector Pinouts

G03567623

Courtesy of DAIMLERCHRYSLER CORP.

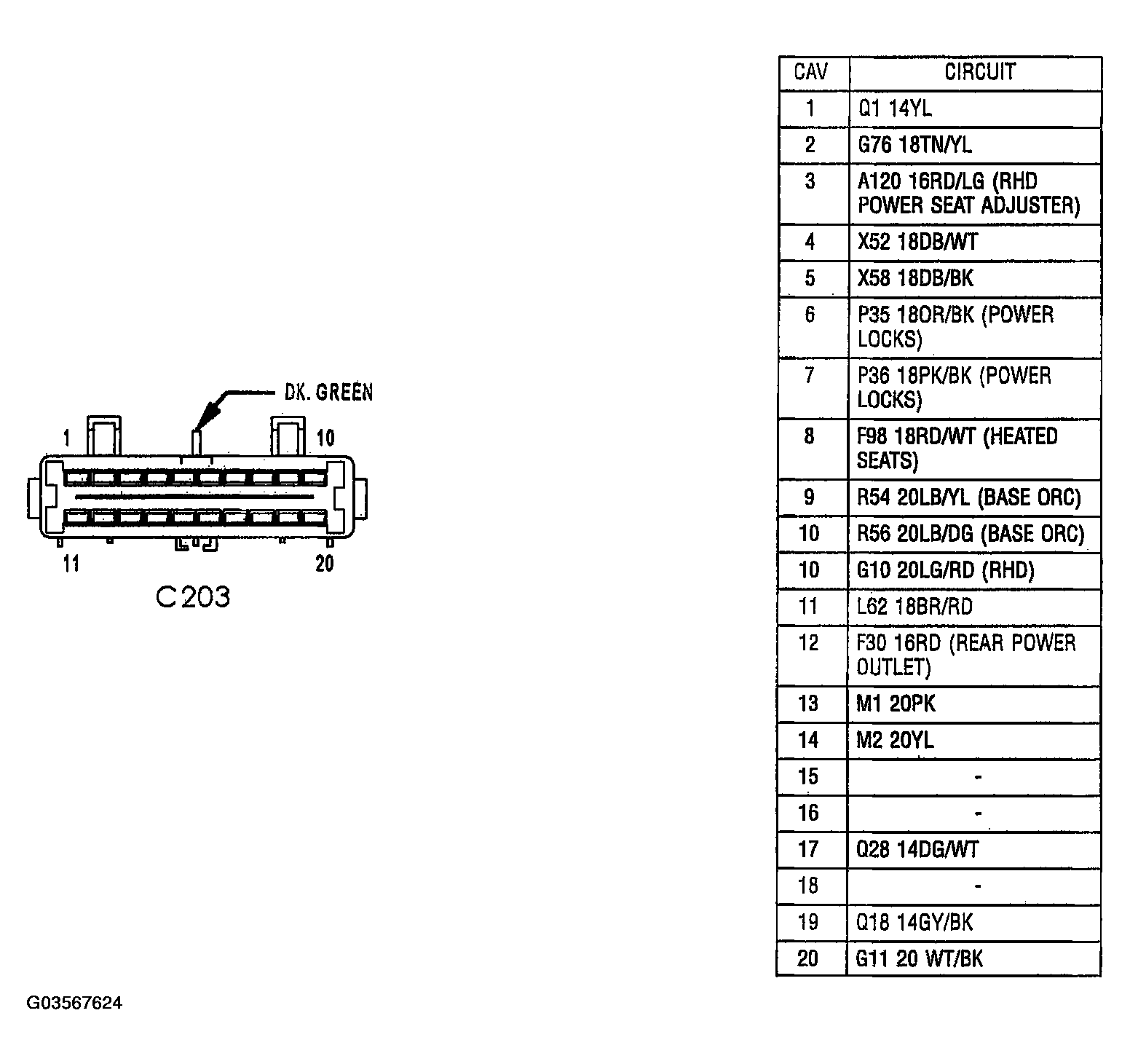

Fig 10: Identifying C203 - DK Green (Right Body Side) Connector Pinouts

G03567624

Courtesy of DAIMLERCHRYSLER CORP.

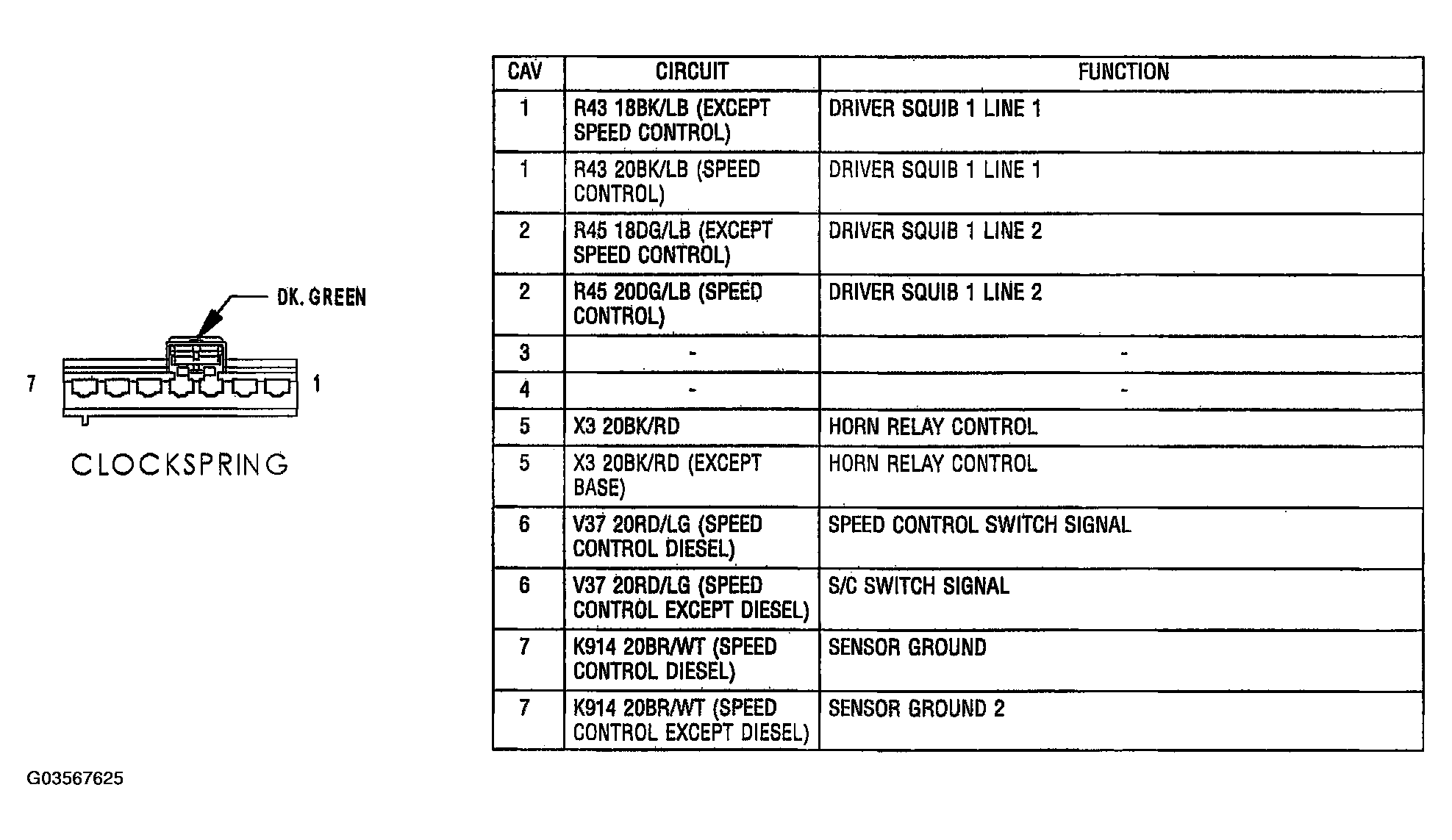

Fig 11: Identifying Clockspring - DK Green 7 Way Connector Pinouts

G03567625

Courtesy of DAIMLERCHRYSLER CORP.

Fig 12: Identifying Controller Antilock Brake - Black 24 Way Connector Pinouts

G03567626

Courtesy of DAIMLERCHRYSLER CORP.

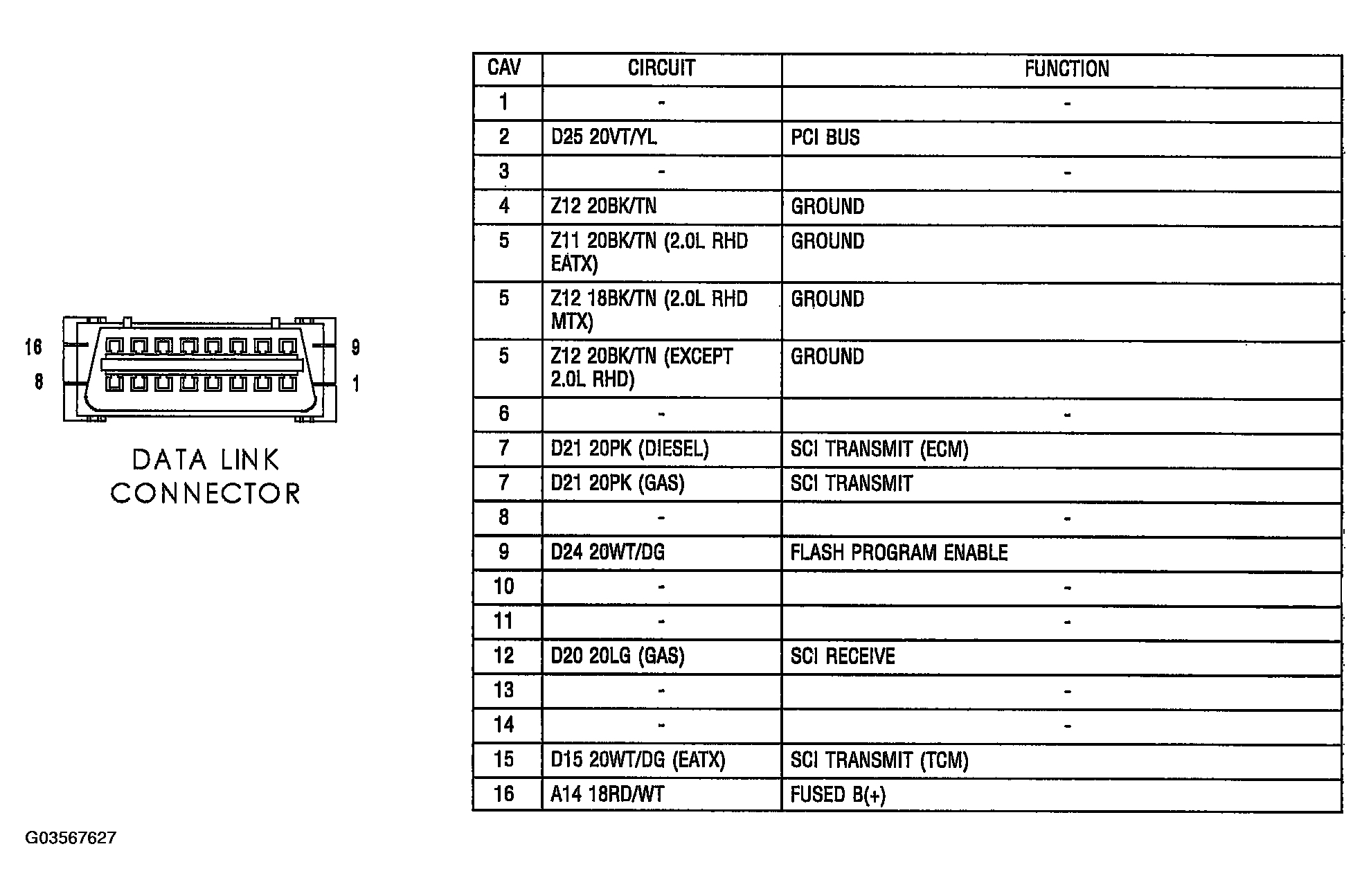

Fig 13: Identifying Data Link Connector -16 Way Connector Pinouts

G03567627

Courtesy of DAIMLERCHRYSLER CORP.

Fig 14: Identifying Dome Lamp - Black 3 Way Connector Pinouts

G03567628

Courtesy of DAIMLERCHRYSLER CORP.

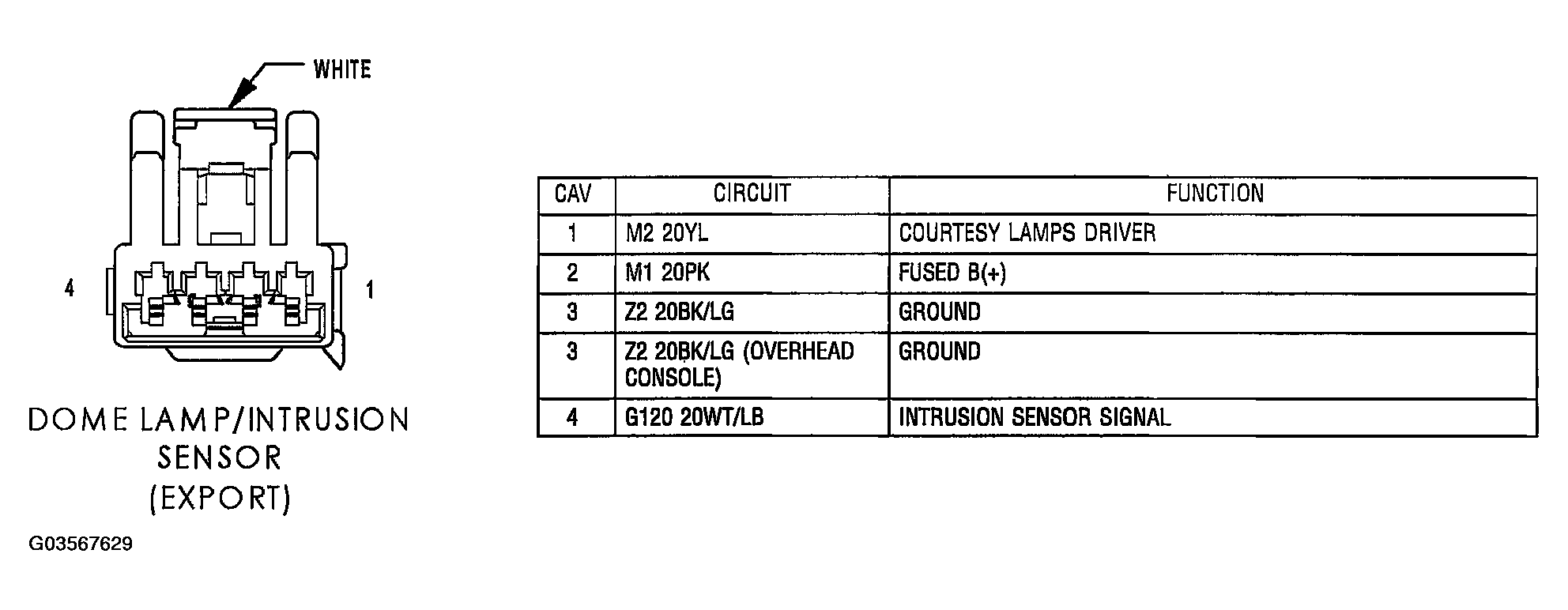

Fig 15: Identifying Dome Lamp/Intrusion Sensor (Export) Connector Pinouts

G03567629

Courtesy of DAIMLERCHRYSLER CORP.

Fig 16: Identifying Driver Airbag Squib 1 Connector Pinouts

G03567630

Courtesy of DAIMLERCHRYSLER CORP.

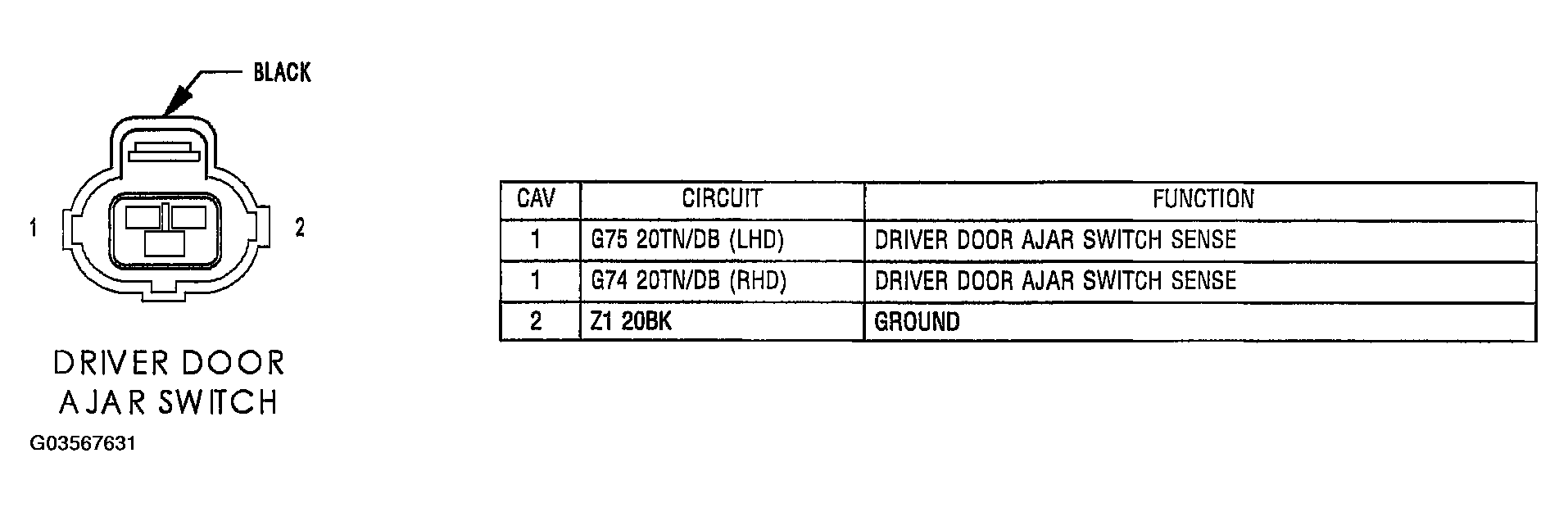

Fig 17: Identifying Driver Door Ajar Switch - Black 2 Way Connector Pinouts

G03567631

Courtesy of DAIMLERCHRYSLER CORP.

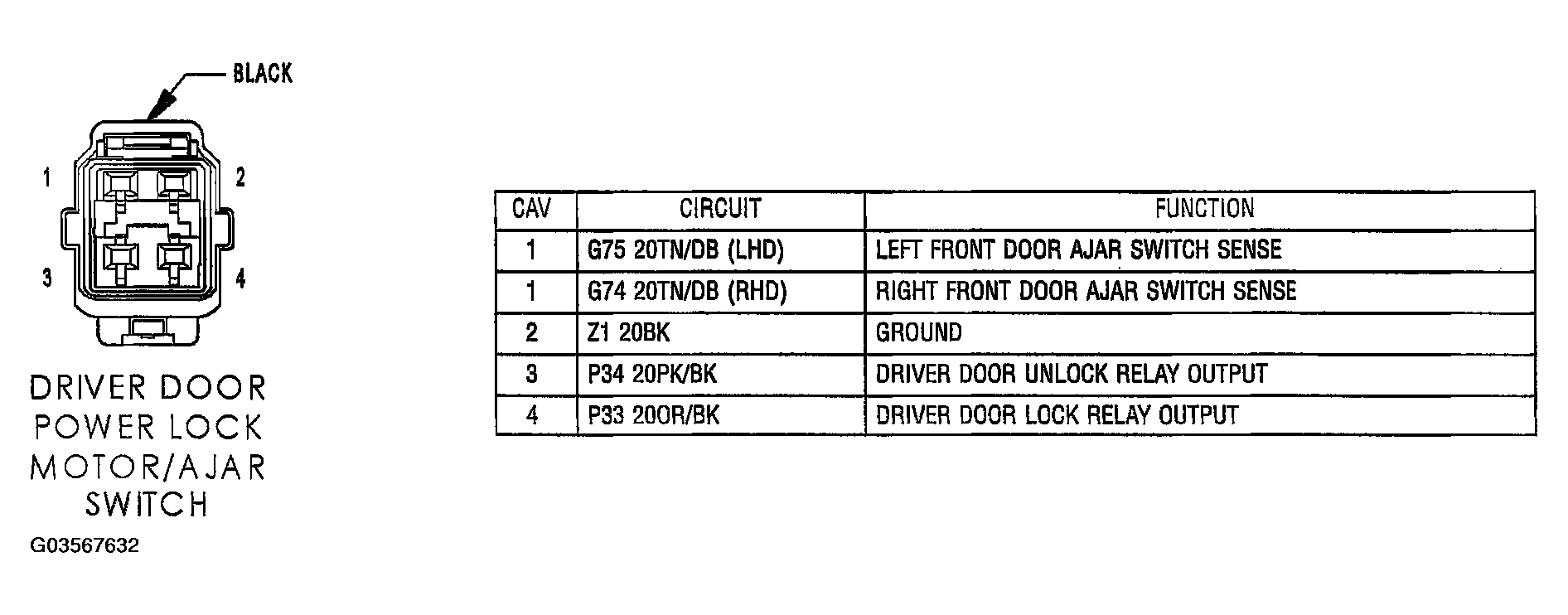

Fig 18: Identifying Driver Door Power Lock Motor/Ajar Switch - Black 4 Way Connector Pinouts

G03567632

Courtesy of DAIMLERCHRYSLER CORP.

Fig 19: Identifying Driver Seat Belt Switch - Black 2 Way Connector Pinouts

G03567633

Courtesy of DAIMLERCHRYSLER CORP.

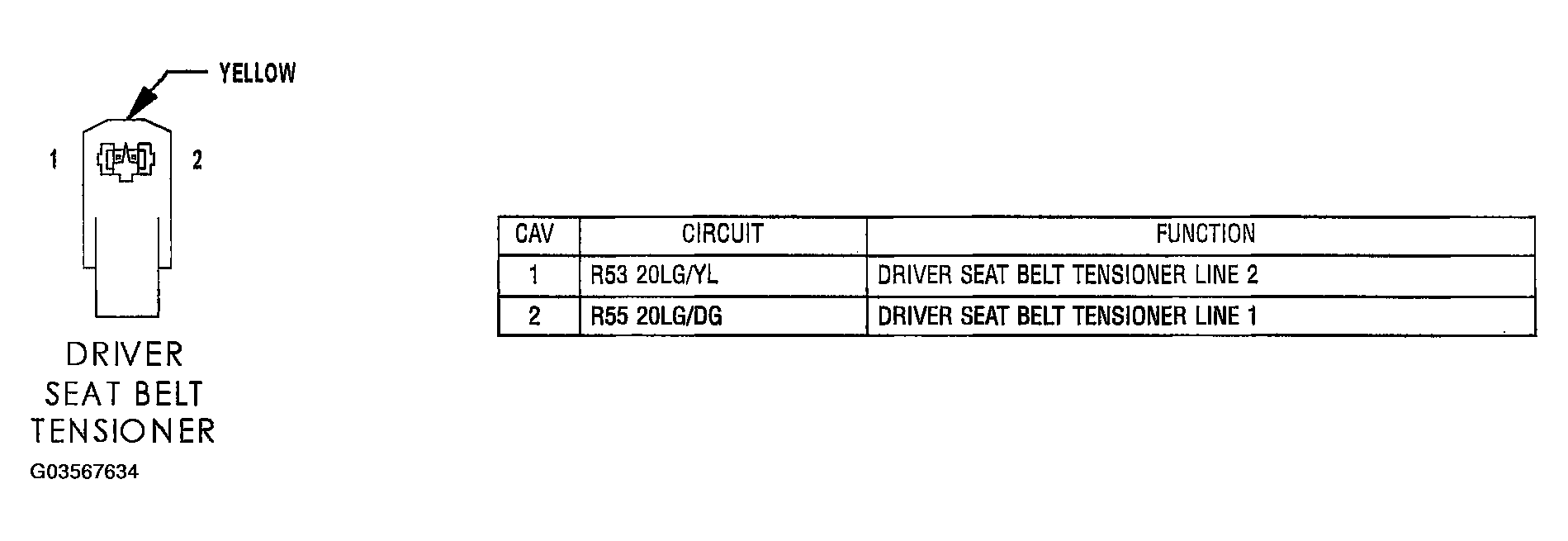

Fig 20: Identifying Driver Seat Belt Tensioner - Yellow 2 Way Connector Pinouts

G03567634

Courtesy of DAIMLERCHRYSLER CORP.

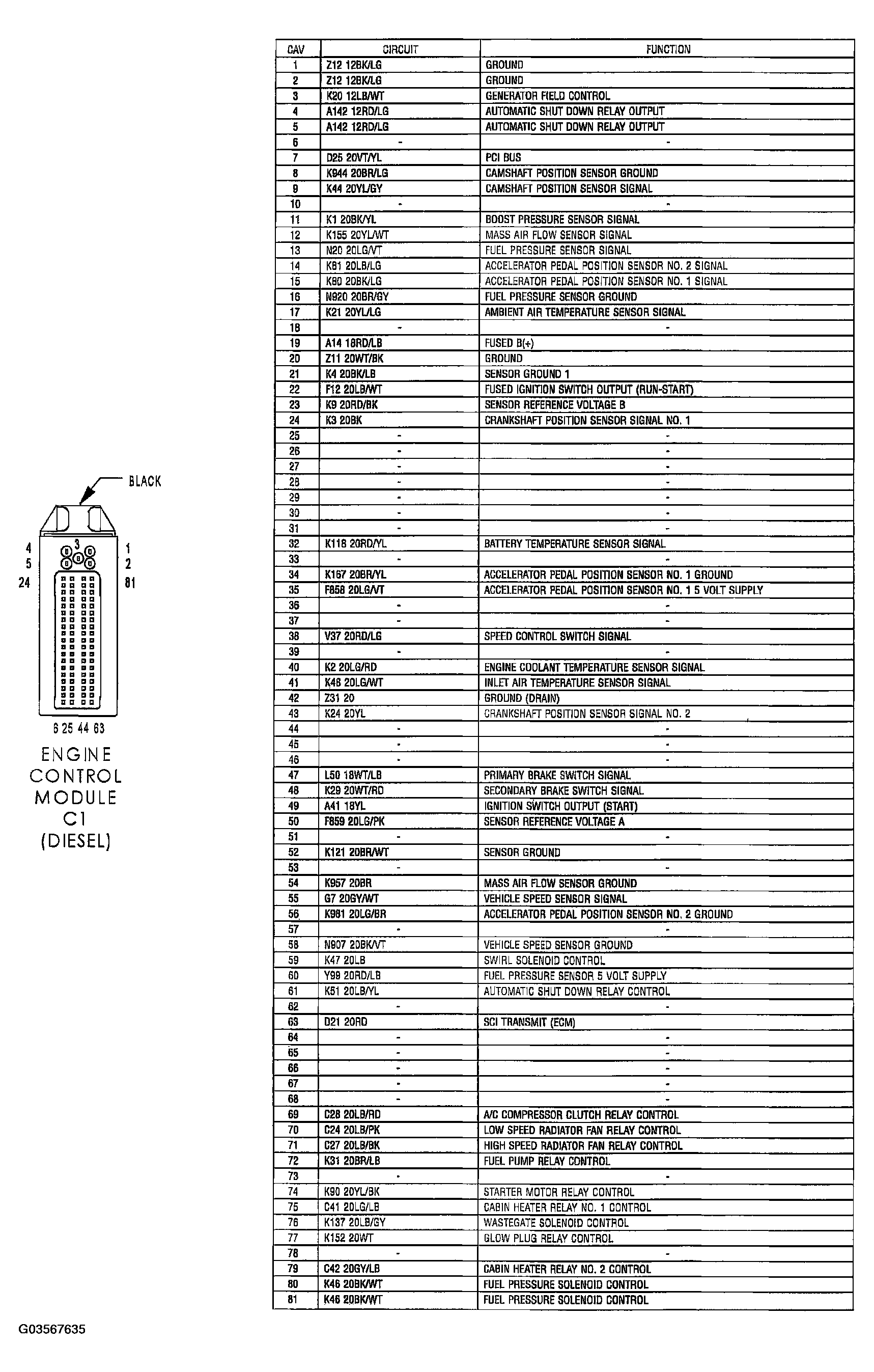

Fig 21: Identifying Engine Control Module C1 (Diesel) Connector Pinouts

G03567635

Courtesy of DAIMLERCHRYSLER CORP.

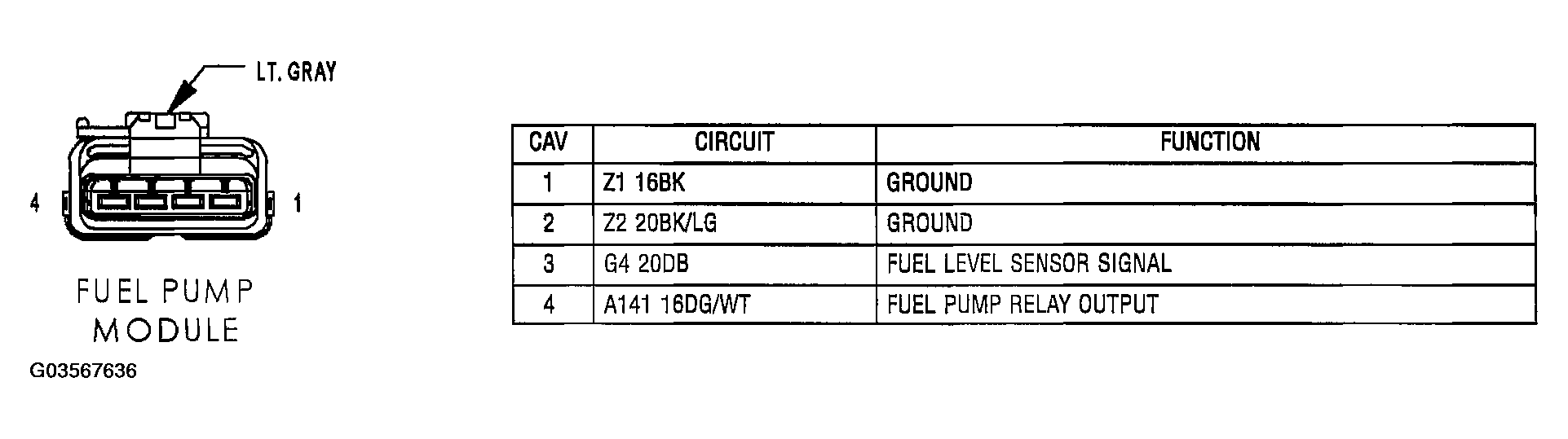

Fig 22: Identifying Fuel Pump Module - LT Gray 4 Way Connector Pinouts

G03567636

Courtesy of DAIMLERCHRYSLER CORP.

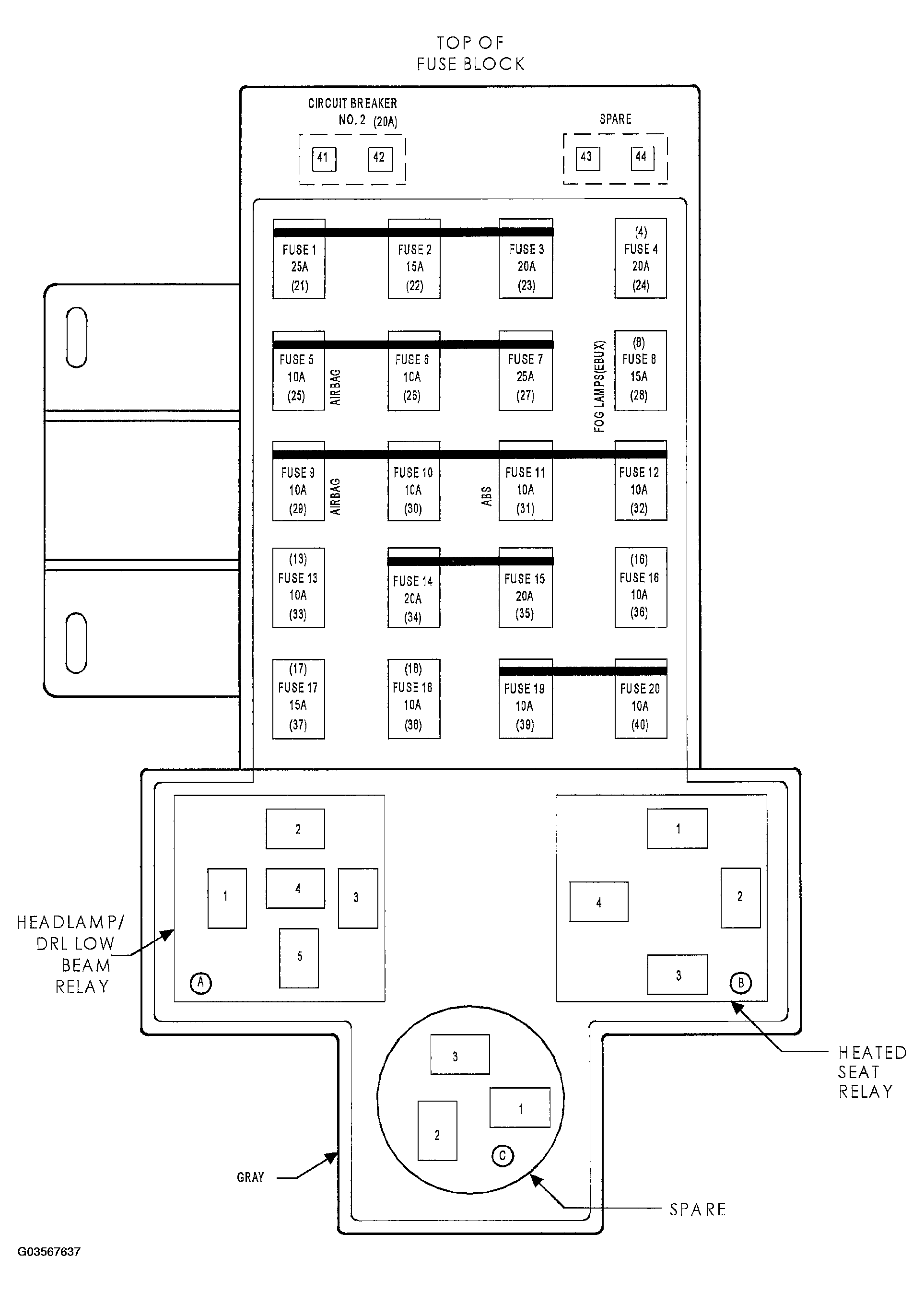

Fig 23: Identifying Fuse Block

G03567637

Courtesy of DAIMLERCHRYSLER CORP.

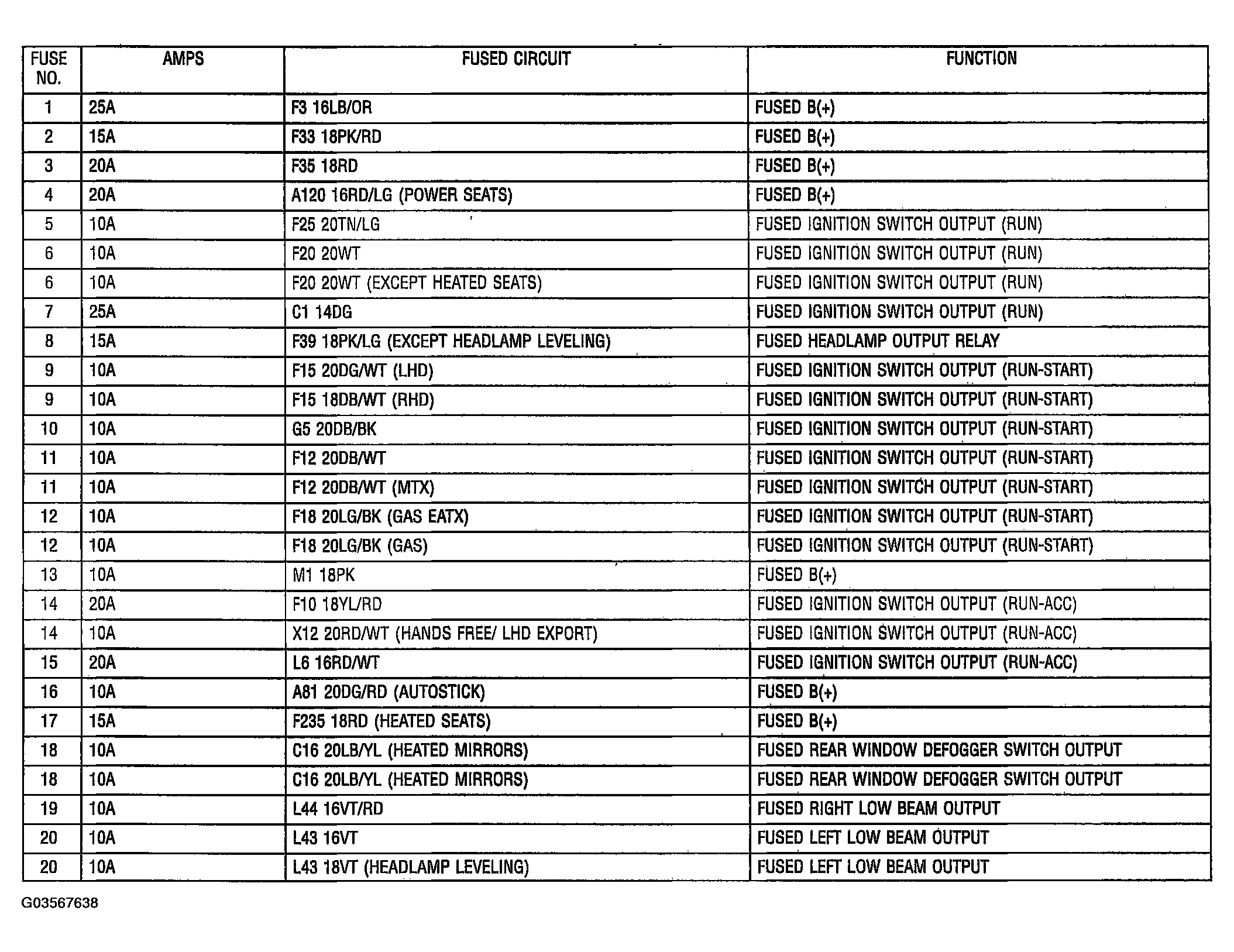

Fig 24: View Of Fuse Block Connector Fuses (FB)

G03567638

Courtesy of DAIMLERCHRYSLER CORP.

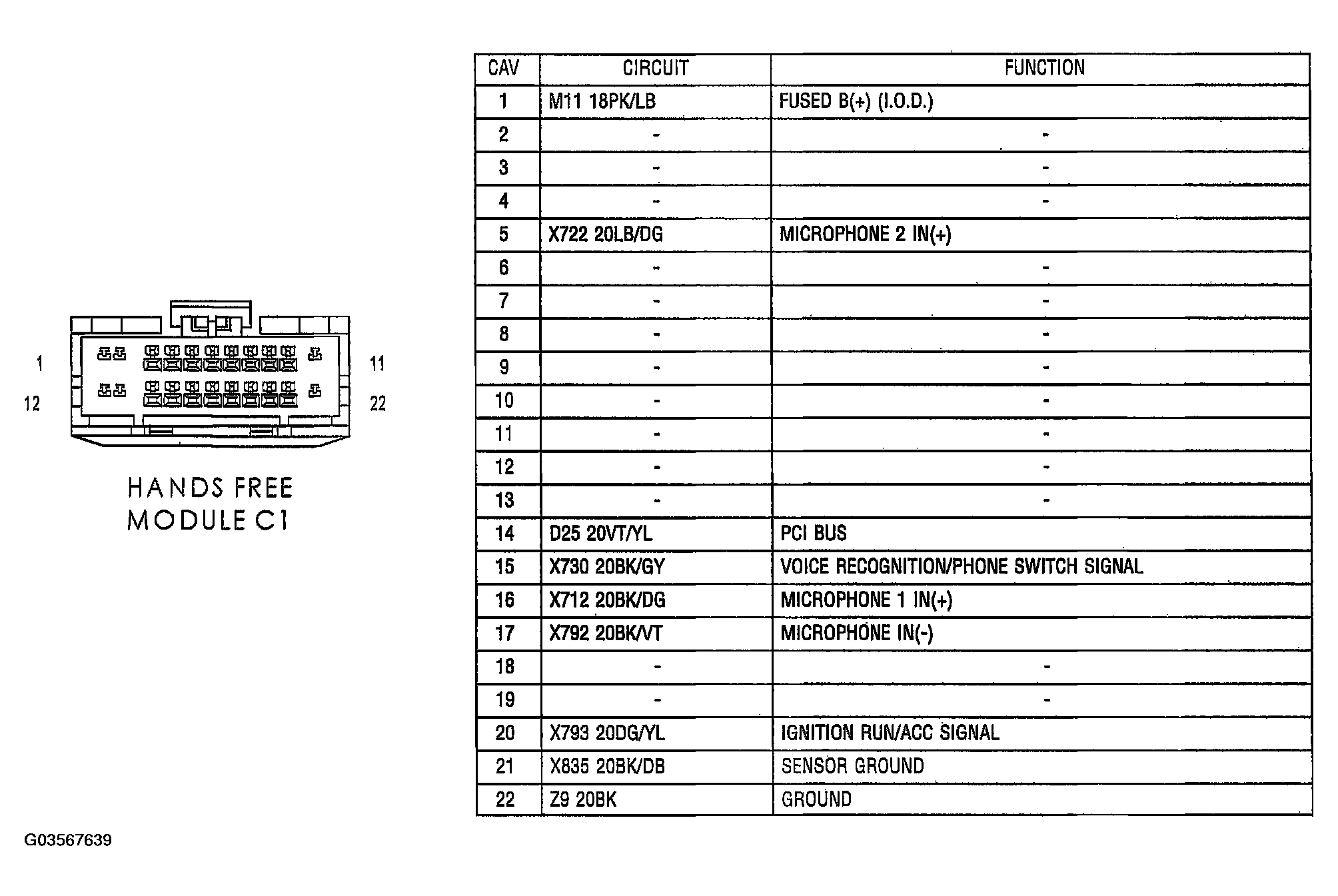

Fig 25: Identifying Hands Free Module C1 - 22 Way Connector Pinouts

G03567639

Courtesy of DAIMLERCHRYSLER CORP.

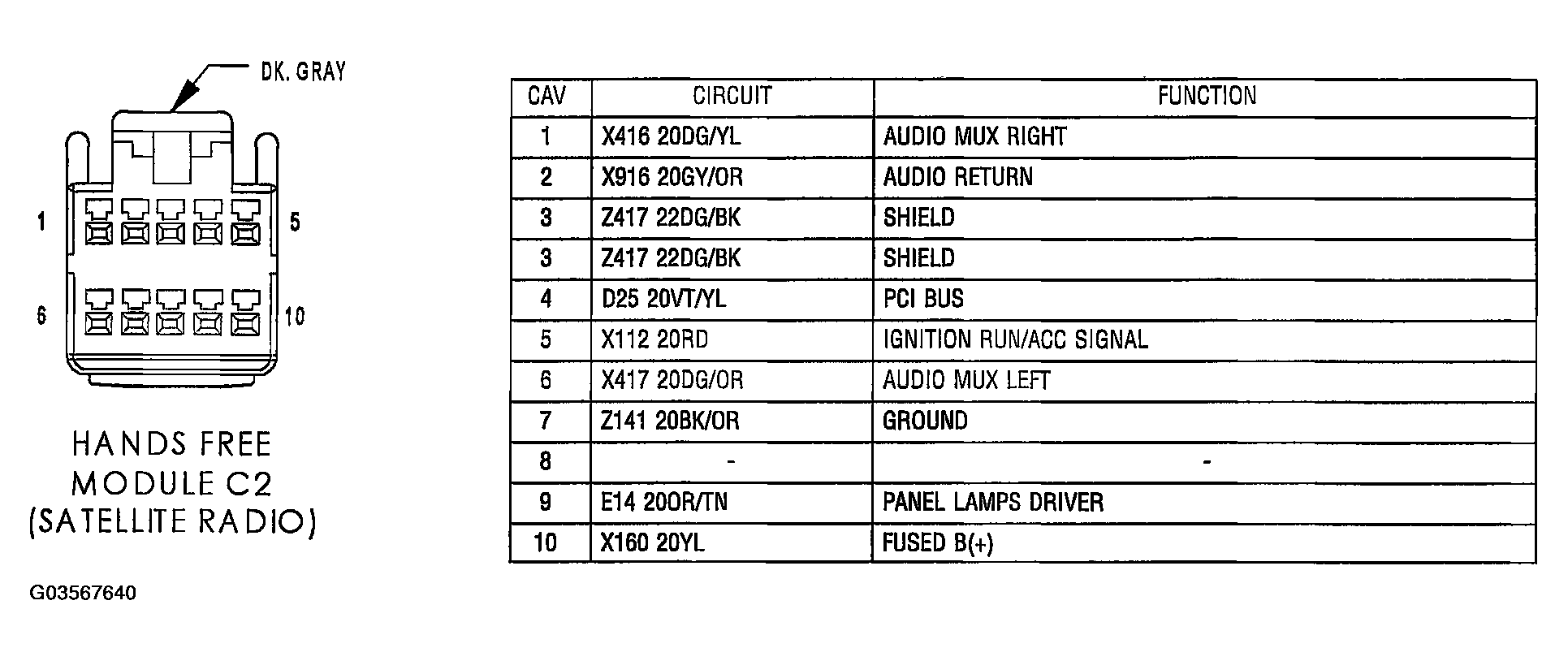

Fig 26: Identifying Hands Free Module C2 (Satellite Radio) Connector Pinouts

G03567640

Courtesy of DAIMLERCHRYSLER CORP.

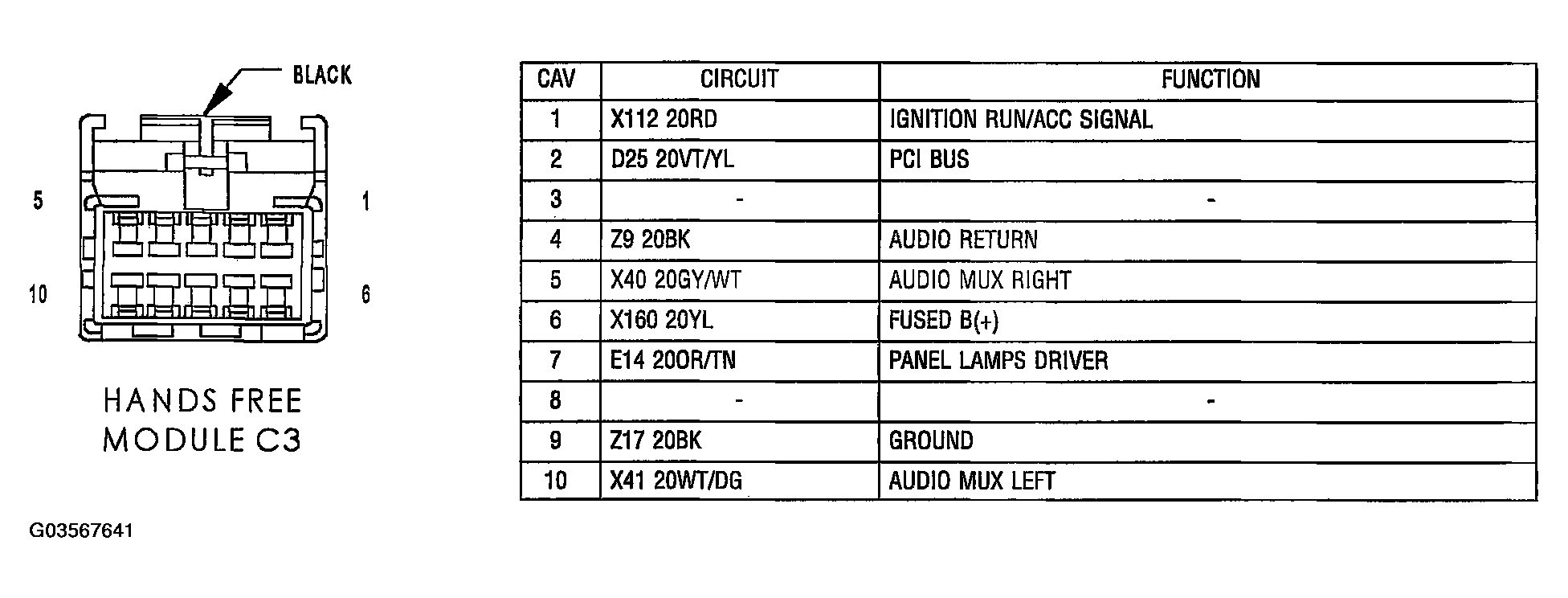

Fig 27: Identifying Hands Free Module C3 - Connector Pinouts

G03567641

Courtesy of DAIMLERCHRYSLER CORP.

Fig 28: Identifying High Note Horn (Export) - Connector Pinouts

G03567642

Courtesy of DAIMLERCHRYSLER CORP.

Fig 29: Identifying Hood Ajar Switch (Export) - Connector Pinouts

G03567643

Courtesy of DAIMLERCHRYSLER CORP.

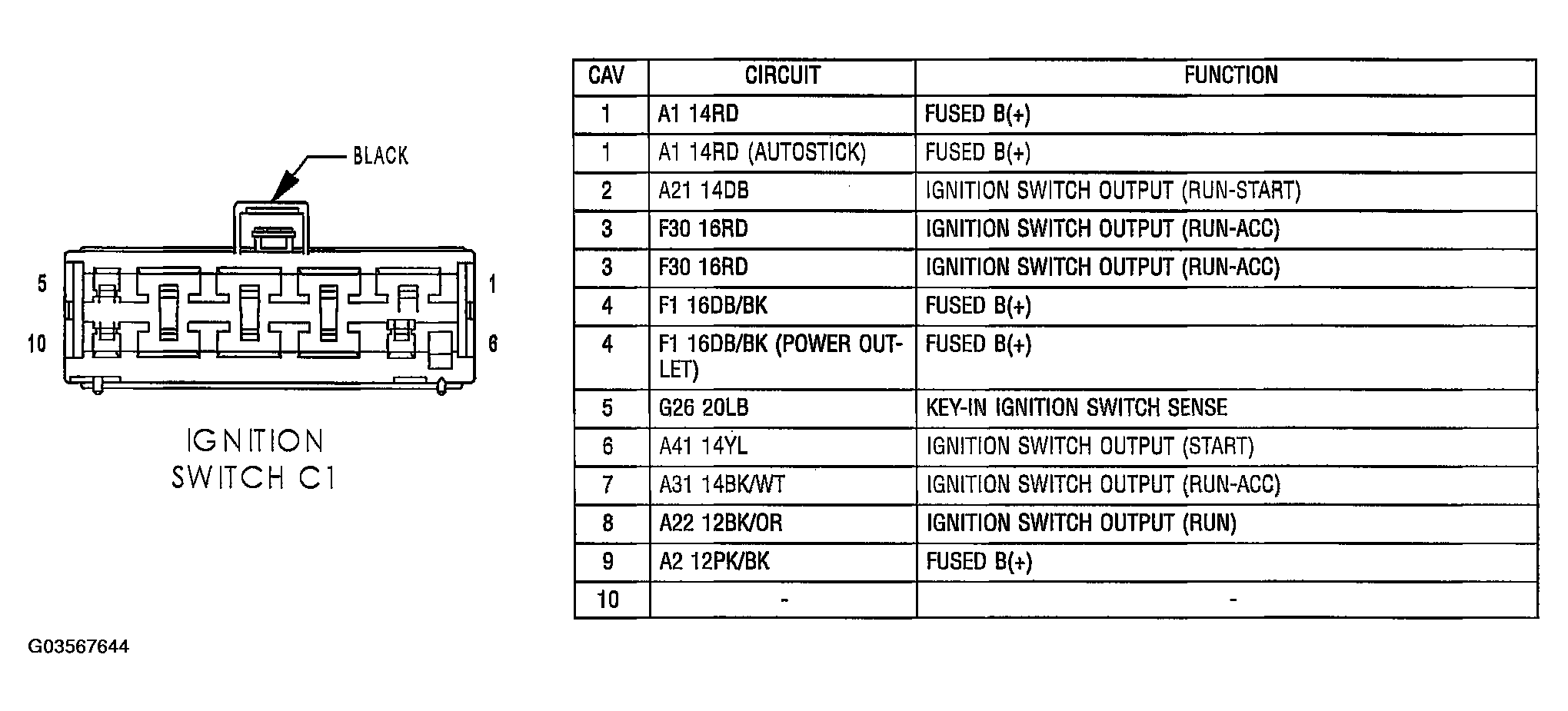

Fig 30: Identifying Ignition Switch C1 - Connector Pinouts

G03567644

Courtesy of DAIMLERCHRYSLER CORP.

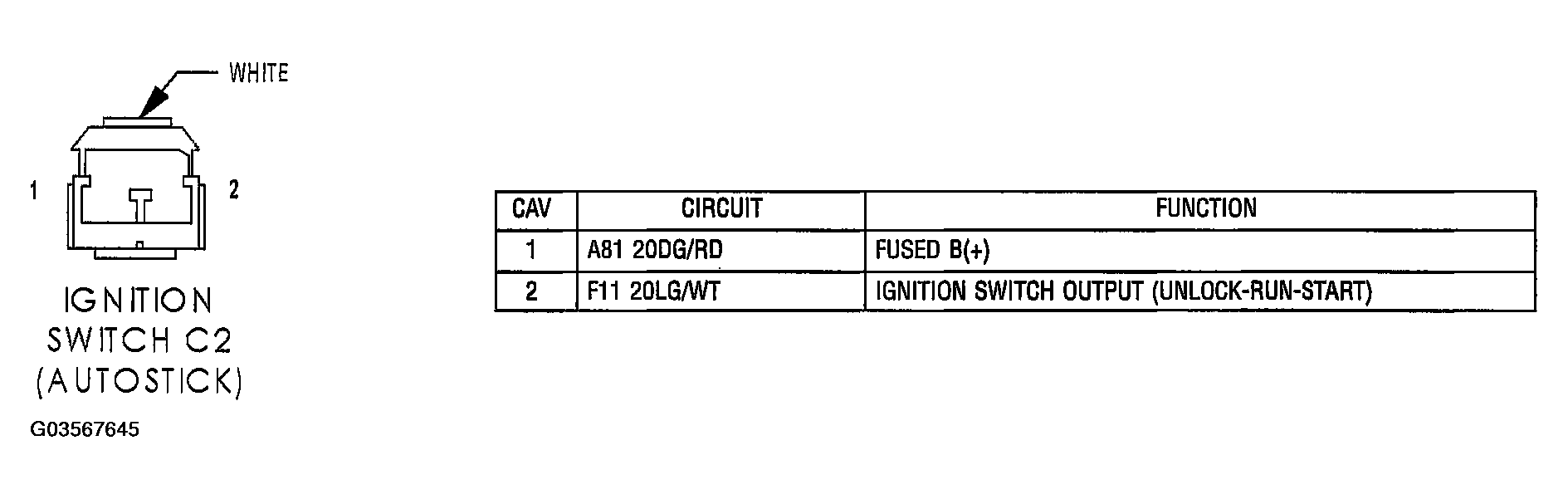

Fig 31: Identifying Ignition Switch C2 (Autostick) - Connector Pinouts

G03567645

Courtesy of DAIMLERCHRYSLER CORP.

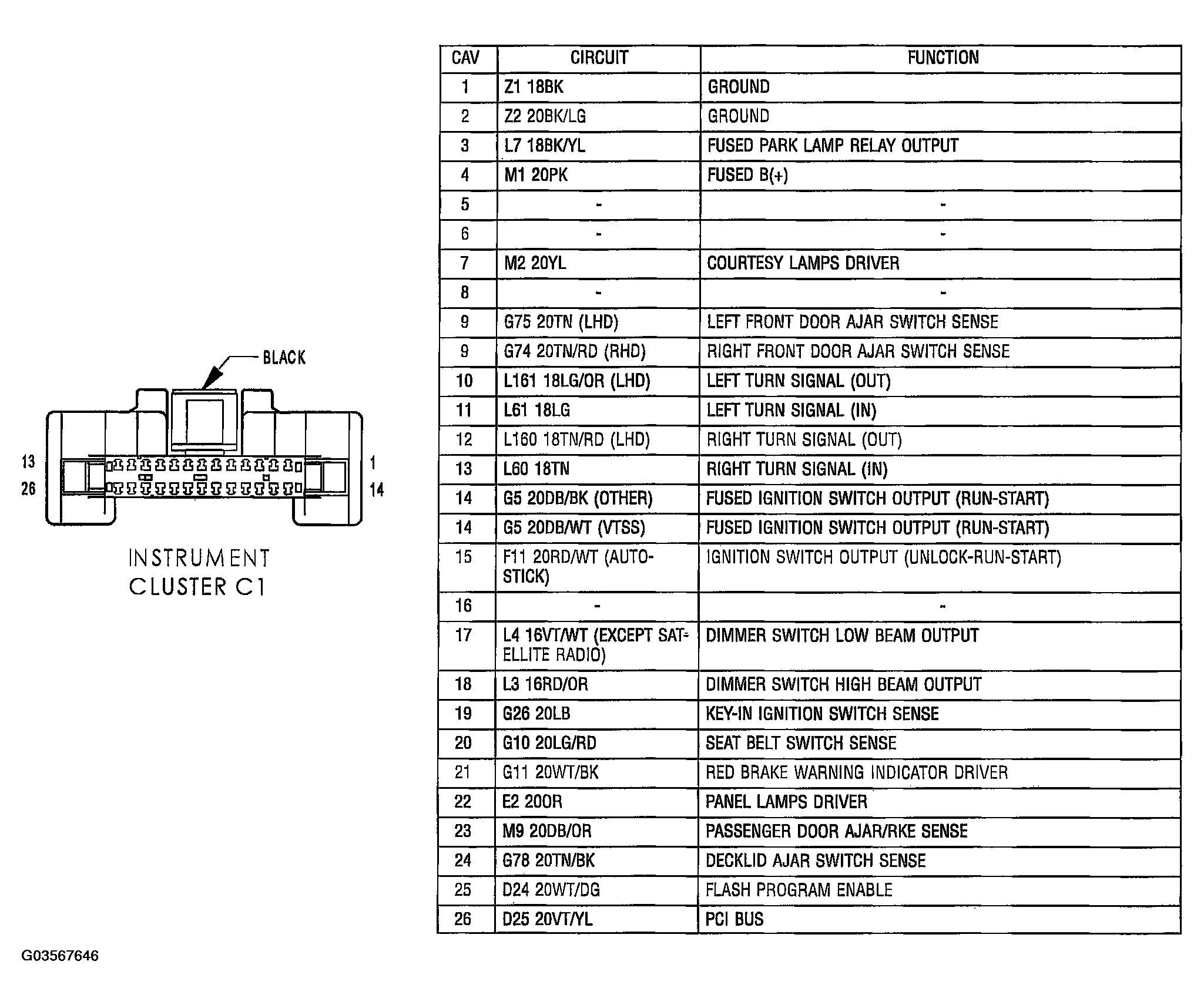

Fig 32: Identifying Instrument Cluster C1 - Connector Pinouts

G03567646

Courtesy of DAIMLERCHRYSLER CORP.

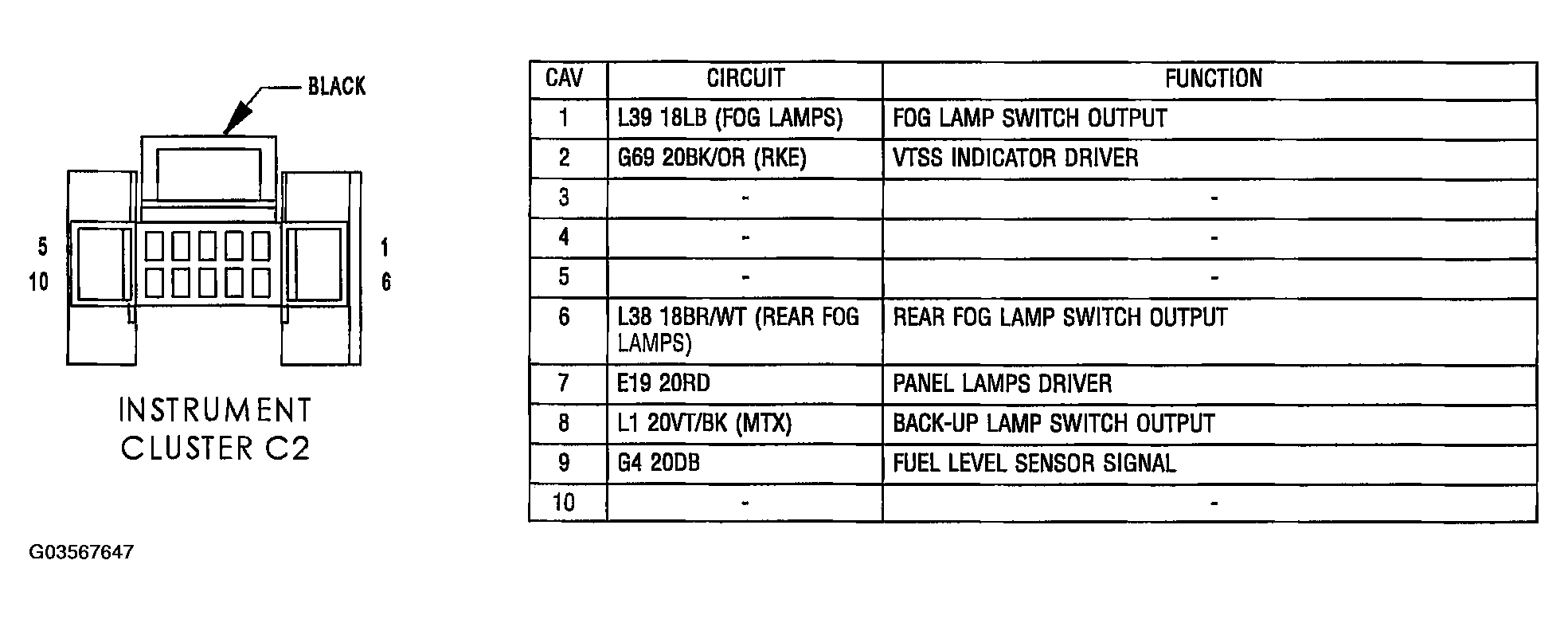

Fig 33: Identifying Instrument Cluster C2 - Connector Pinouts

G03567647

Courtesy of DAIMLERCHRYSLER CORP.

Fig 34: Identifying Left Cylinder Lock Switch - Connector Pinouts

G03567648

Courtesy of DAIMLERCHRYSLER CORP.

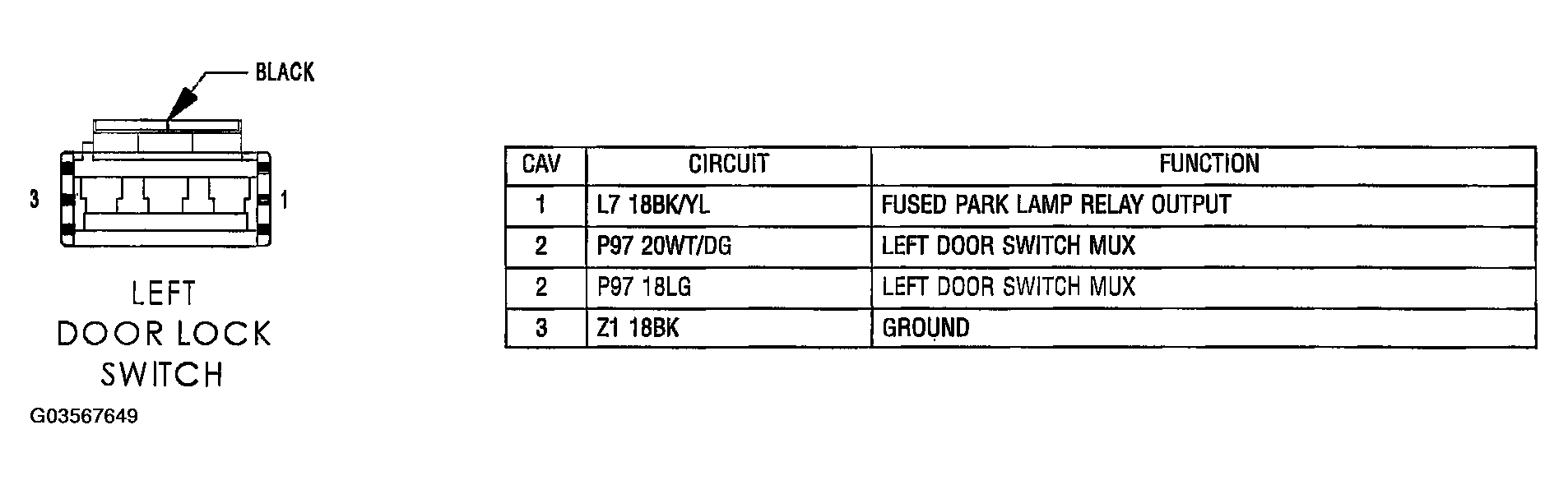

Fig 35: Identifying Left Door Lock Switch - Connector Pinouts

G03567649

Courtesy of DAIMLERCHRYSLER CORP.

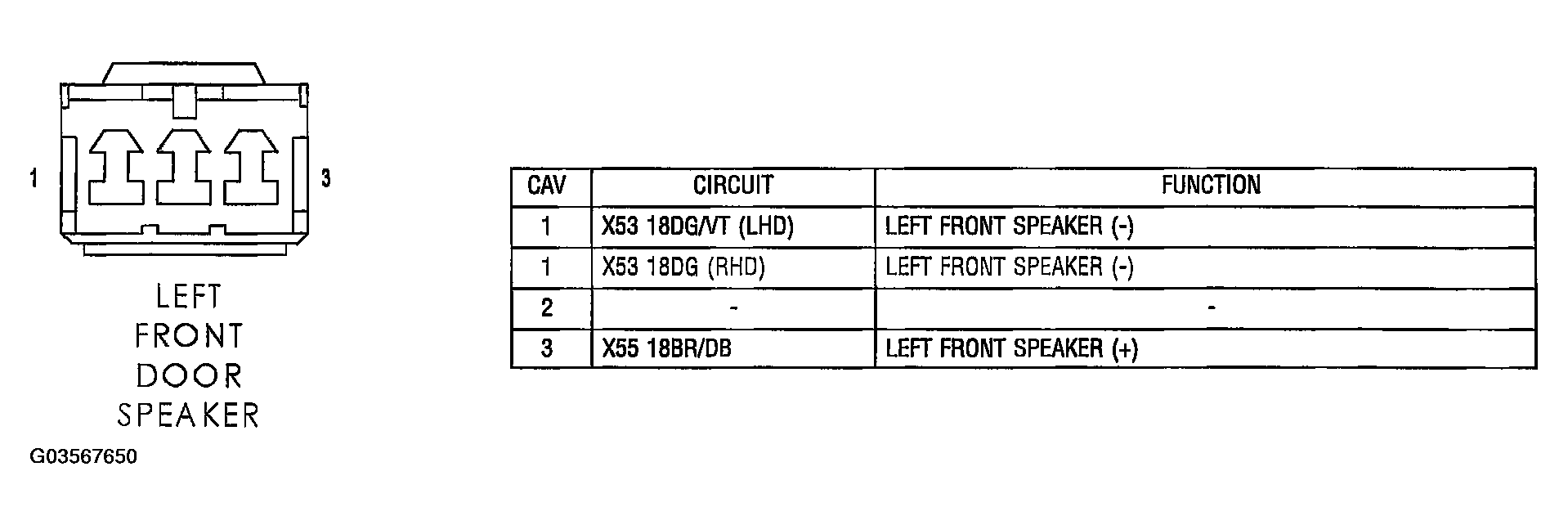

Fig 36: Identifying Left Front Door Speaker - Connector Pinouts

G03567650

Courtesy of DAIMLERCHRYSLER CORP.

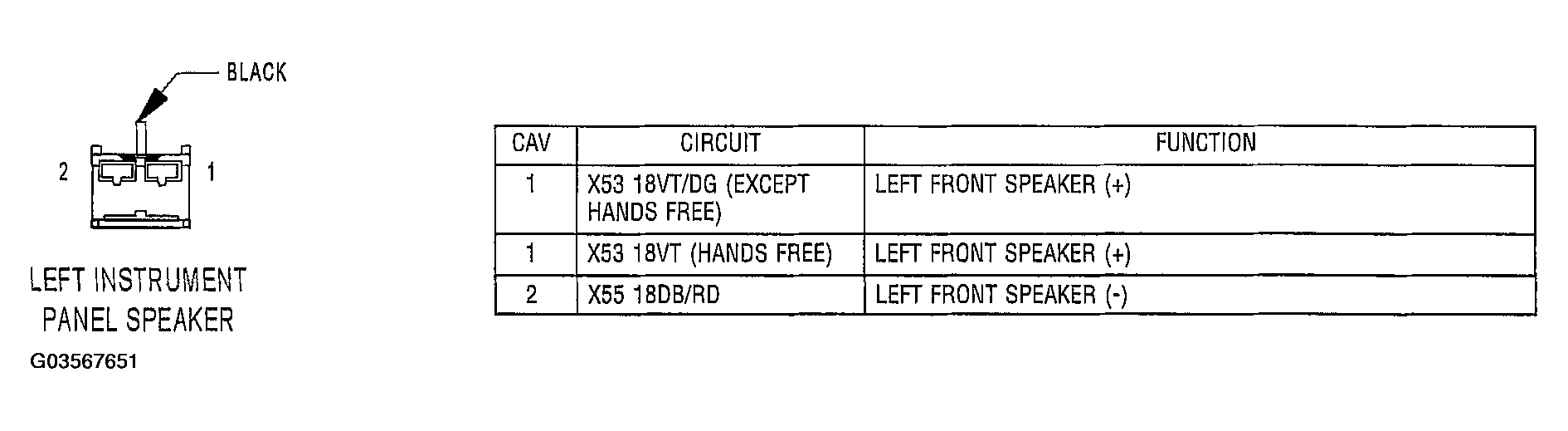

Fig 37: Identifying Left Instrument Panel Speaker - Connector Pinouts

G03567651

Courtesy of DAIMLERCHRYSLER CORP.

Fig 38: Identifying Left Rear Door Power Lock Motor - Connector Pinouts

G03567652

Courtesy of DAIMLERCHRYSLER CORP.

Fig 39: Identifying Left Rear Speaker - Connector Pinouts

G03567653

Courtesy of DAIMLERCHRYSLER CORP.

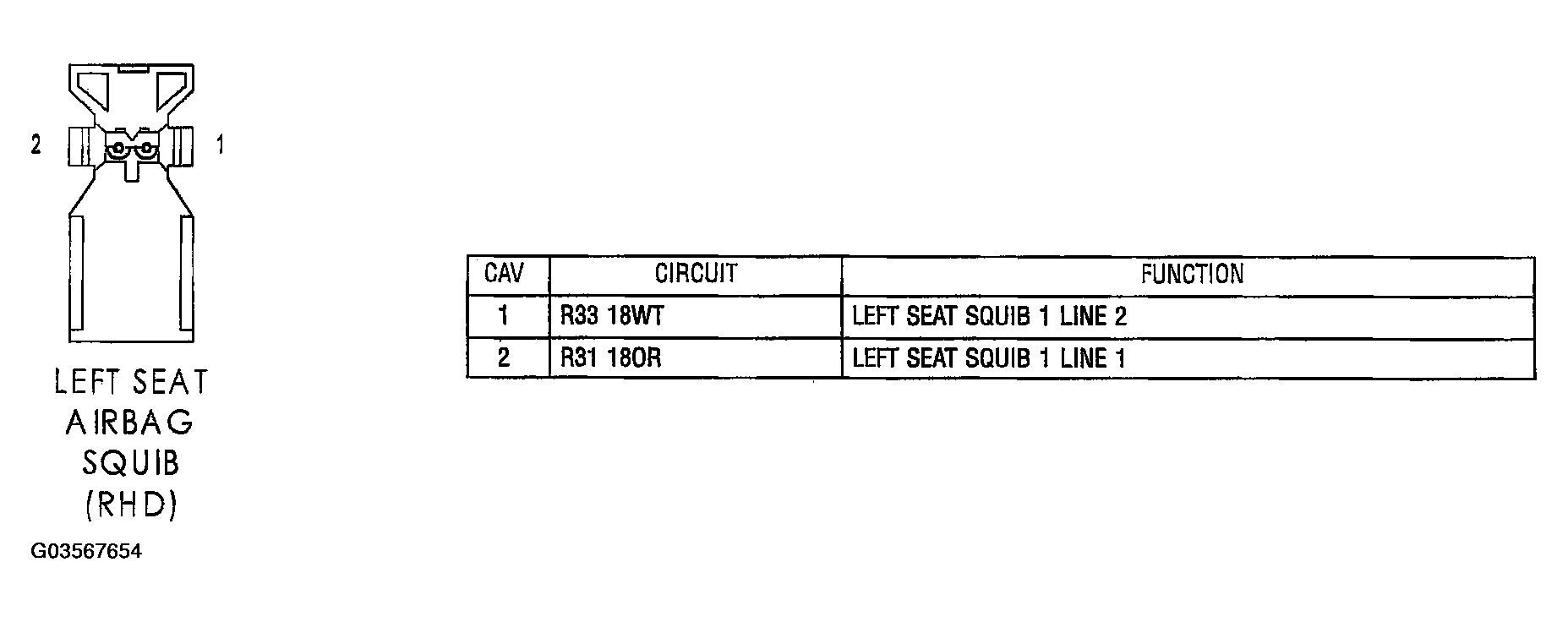

Fig 40: Identifying Left Seat Airbag Squib (RHD) - Connector Pinouts

G03567654

Courtesy of DAIMLERCHRYSLER CORP.

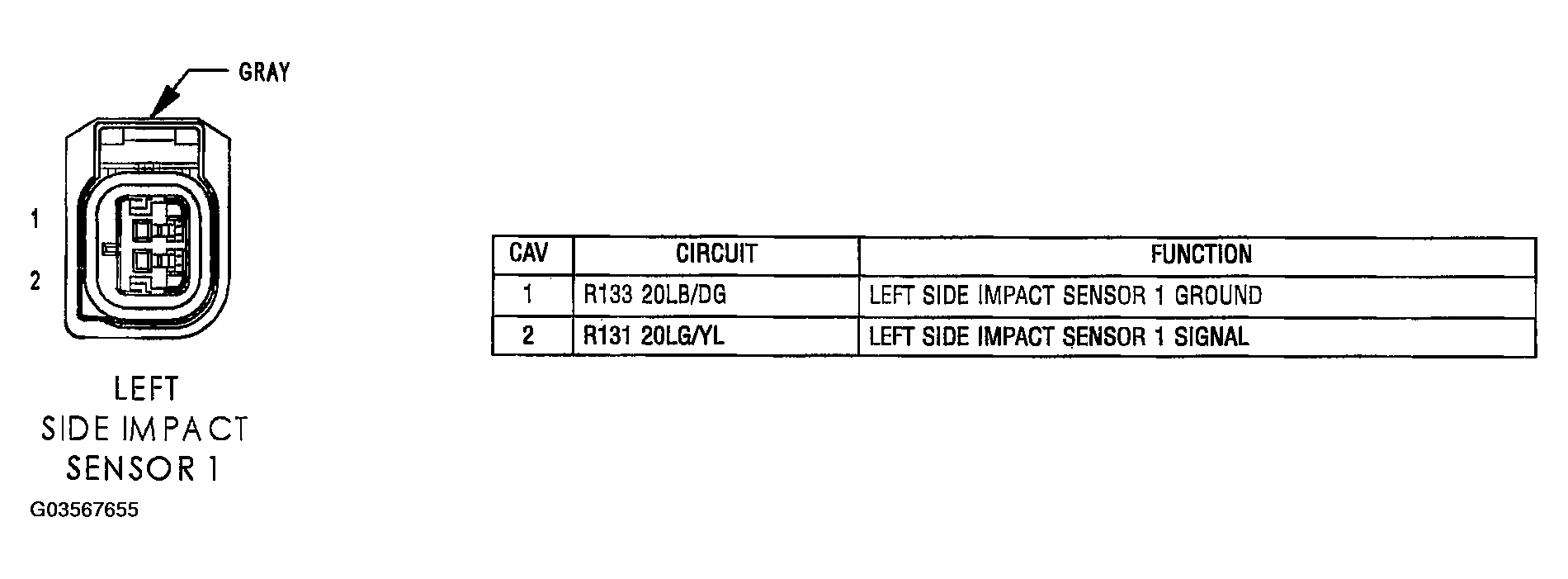

Fig 41: Identifying Left Side Impact Sensor 1 - Connector Pinouts

G03567655

Courtesy of DAIMLERCHRYSLER CORP.

Fig 42: Identifying Liftgate Ajar Switch - Connector Pinouts

G03567656

Courtesy of DAIMLERCHRYSLER CORP.

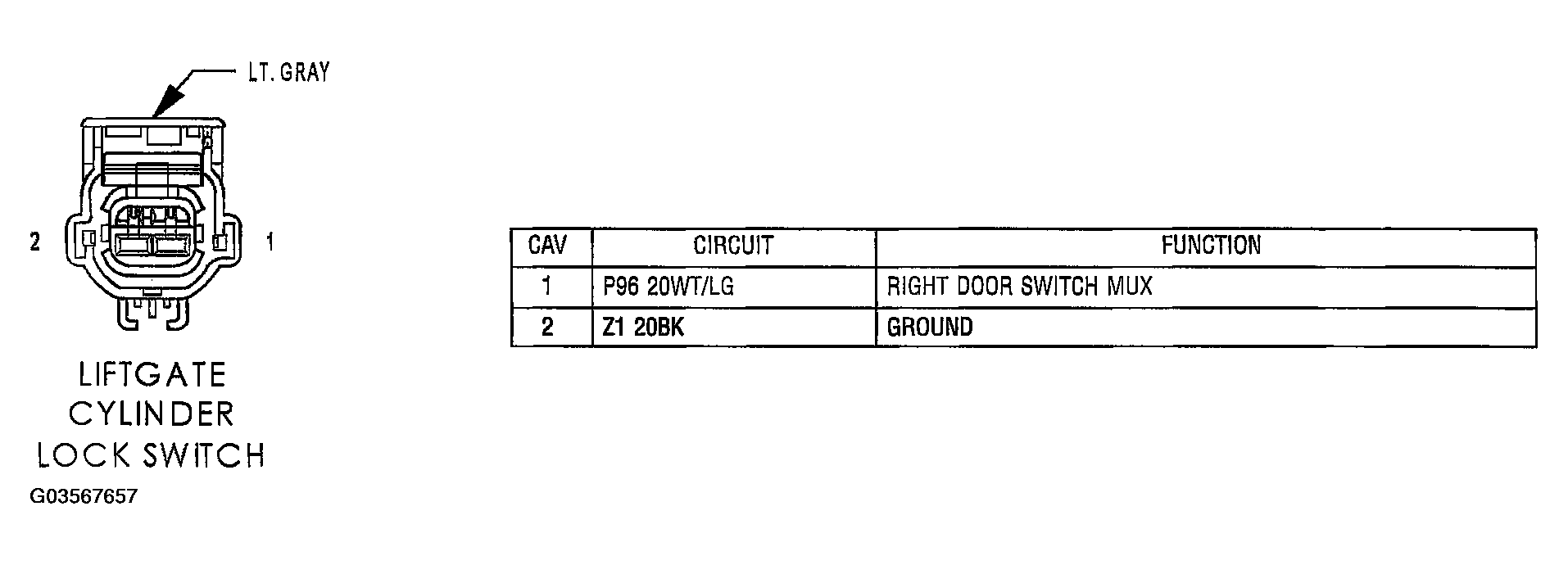

Fig 43: Identifying Liftgate Cylinder Lock Switch - Connector Pinouts

G03567657

Courtesy of DAIMLERCHRYSLER CORP.

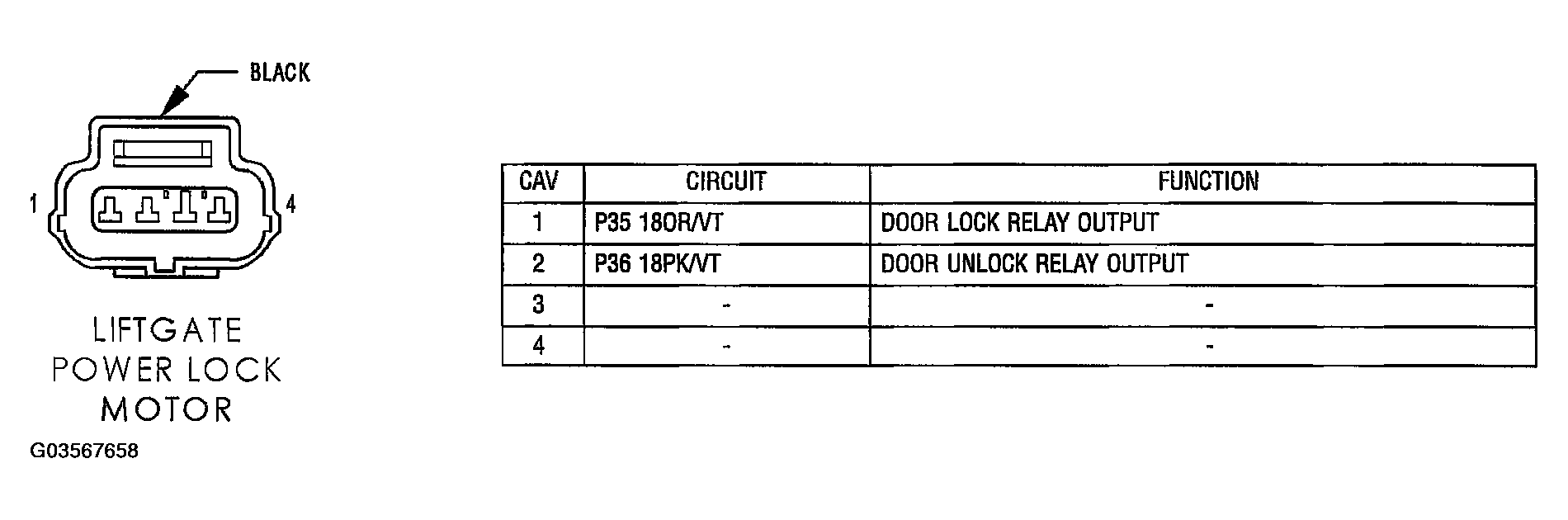

Fig 44: Identifying Liftgate Power Lock Motor - Connector Pinouts

G03567658

Courtesy of DAIMLERCHRYSLER CORP.

Fig 45: Identifying Low Note Horn - Connector Pinouts

G03567659

Courtesy of DAIMLERCHRYSLER CORP.

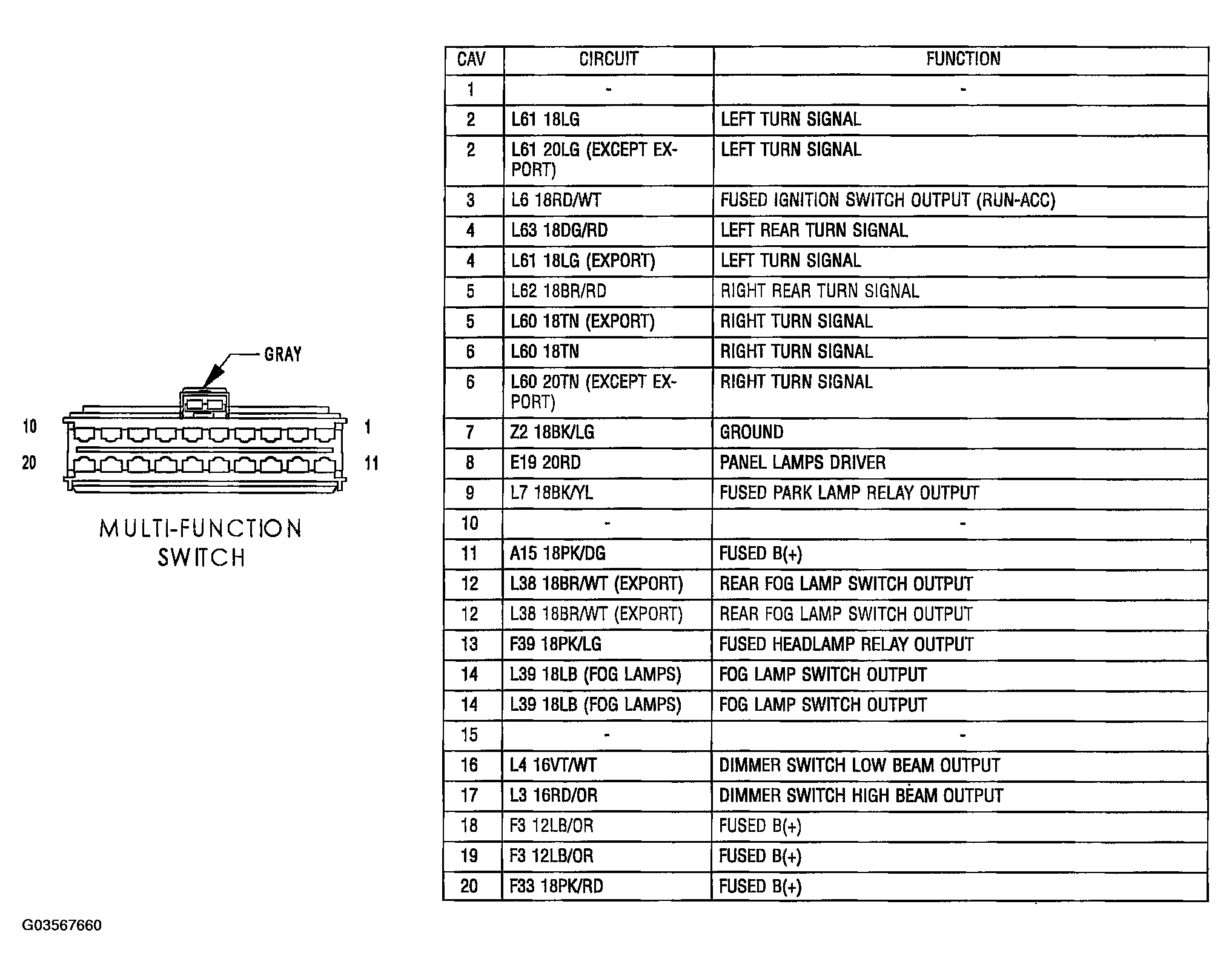

Fig 46: Identifying Multi-Function Switch - Connector Pinouts

G03567660

Courtesy of DAIMLERCHRYSLER CORP.

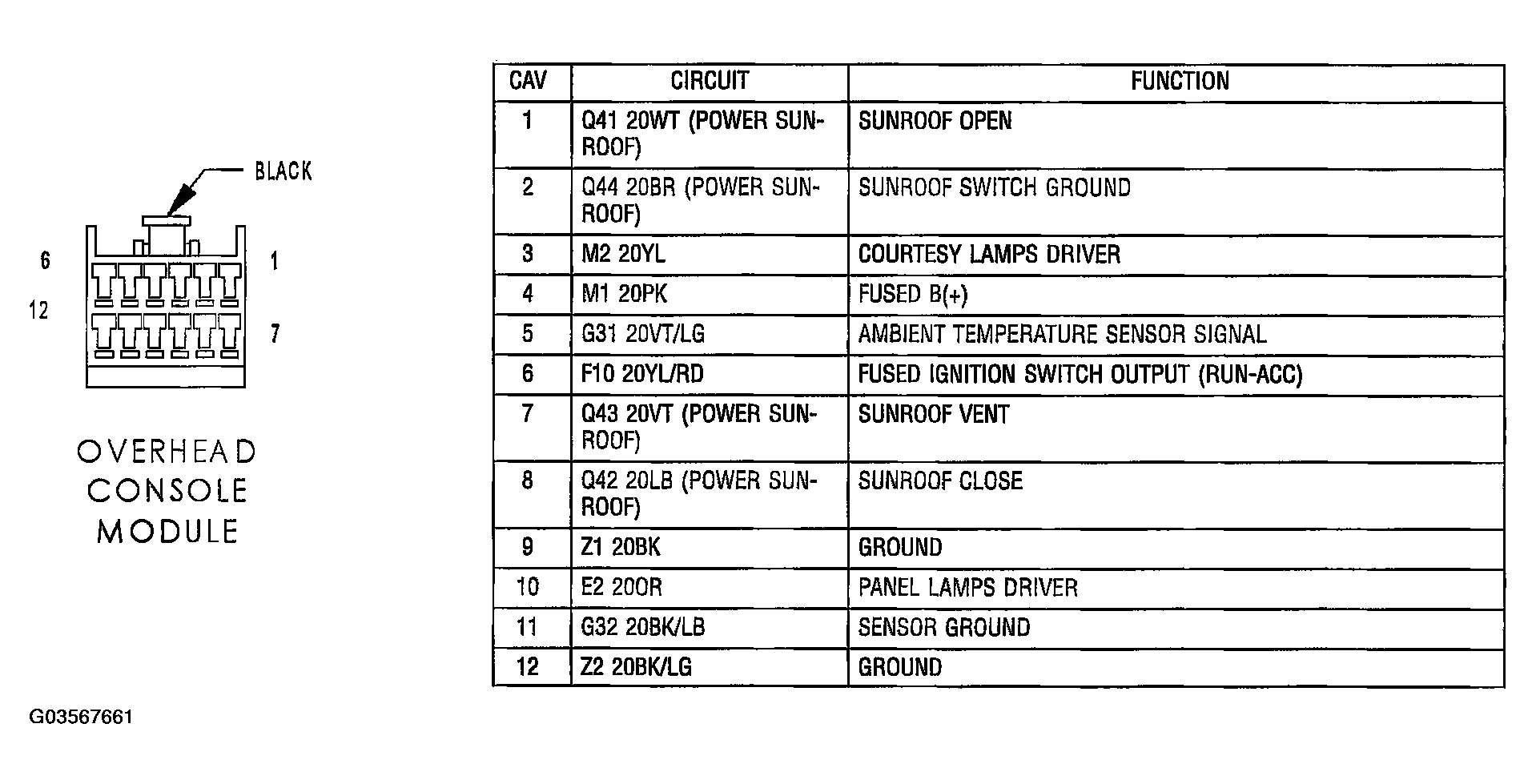

Fig 47: Identifying Overhead Console Module - Connector Pinouts

G03567661

Courtesy of DAIMLERCHRYSLER CORP.

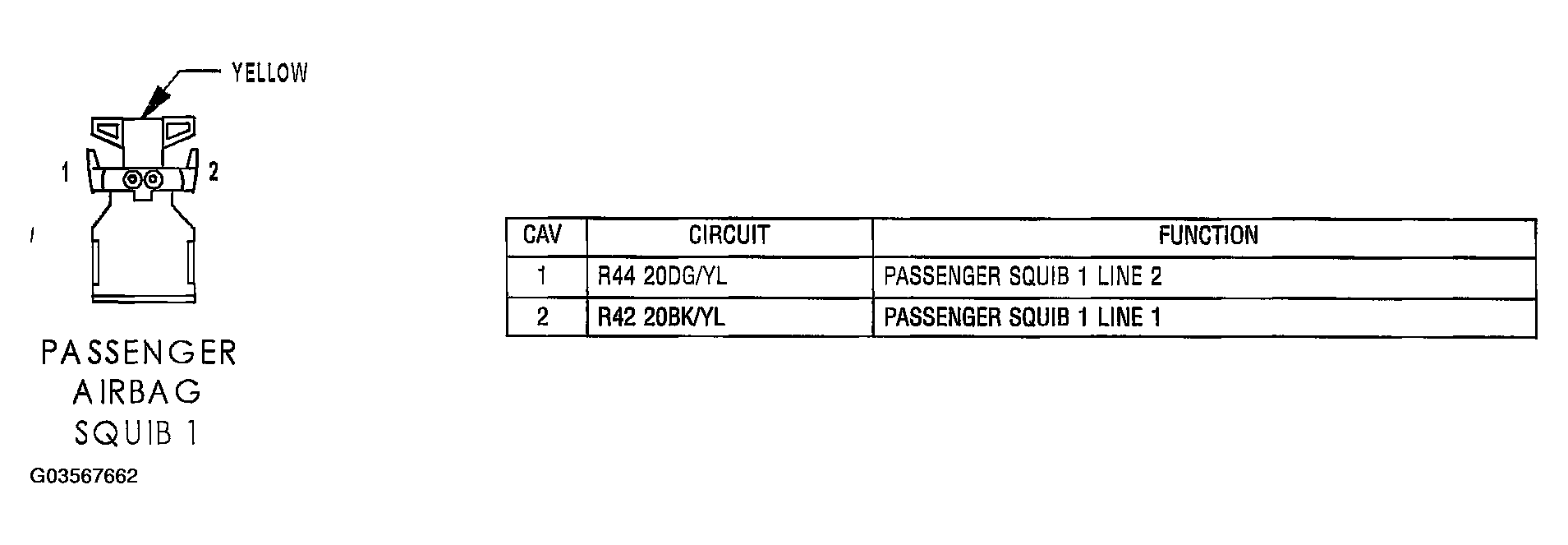

Fig 48: Identifying Passenger Airbag Squib 1 - Connector Pinouts

G03567662

Courtesy of DAIMLERCHRYSLER CORP.

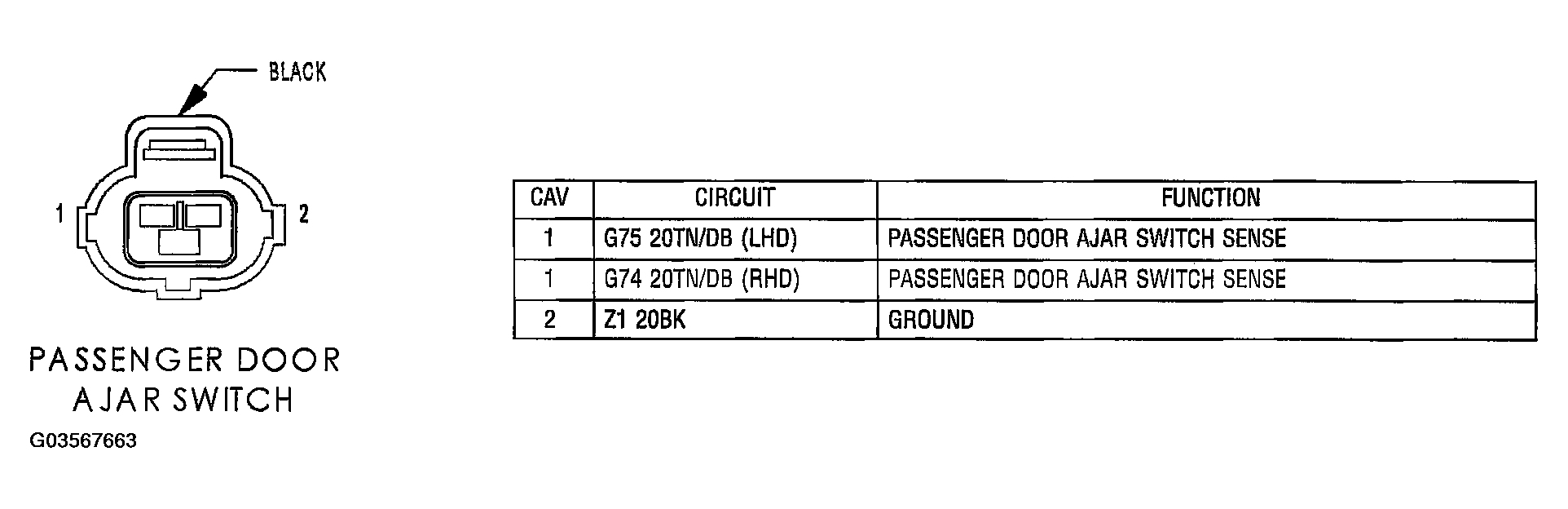

Fig 49: Identifying Passenger Door Ajar Switch - Connector Pinouts

G03567663

Courtesy of DAIMLERCHRYSLER CORP.

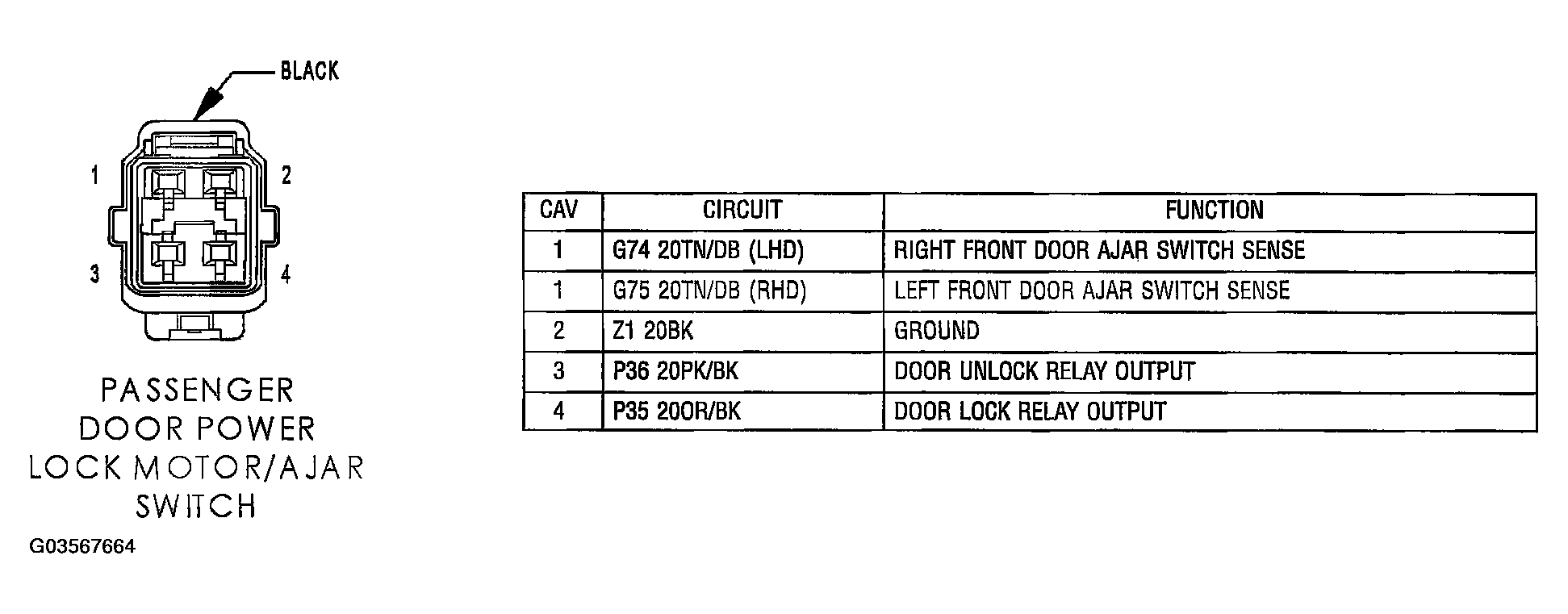

Fig 50: Identifying Passenger Door Power Lock Motor/Ajar Switch - Connector Pinouts

G03567664

Courtesy of DAIMLERCHRYSLER CORP.

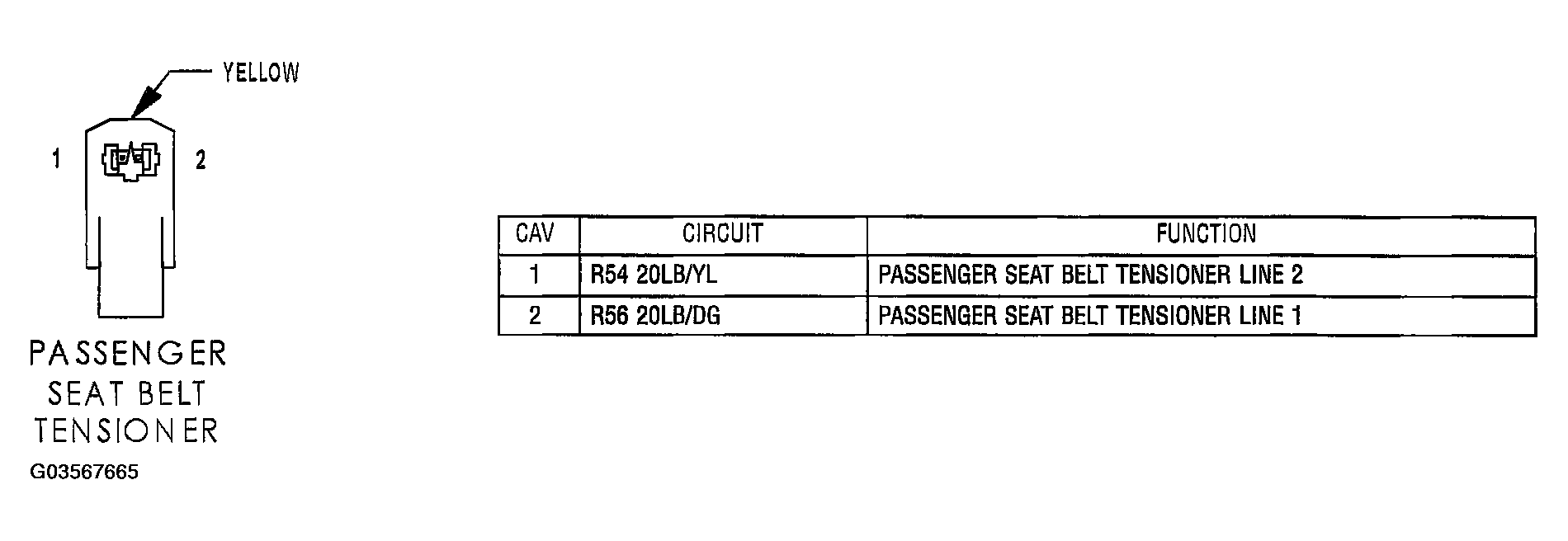

Fig 51: Identifying Passenger Seat Belt Tensioner - Connector Pinouts

G03567665

Courtesy of DAIMLERCHRYSLER CORP.

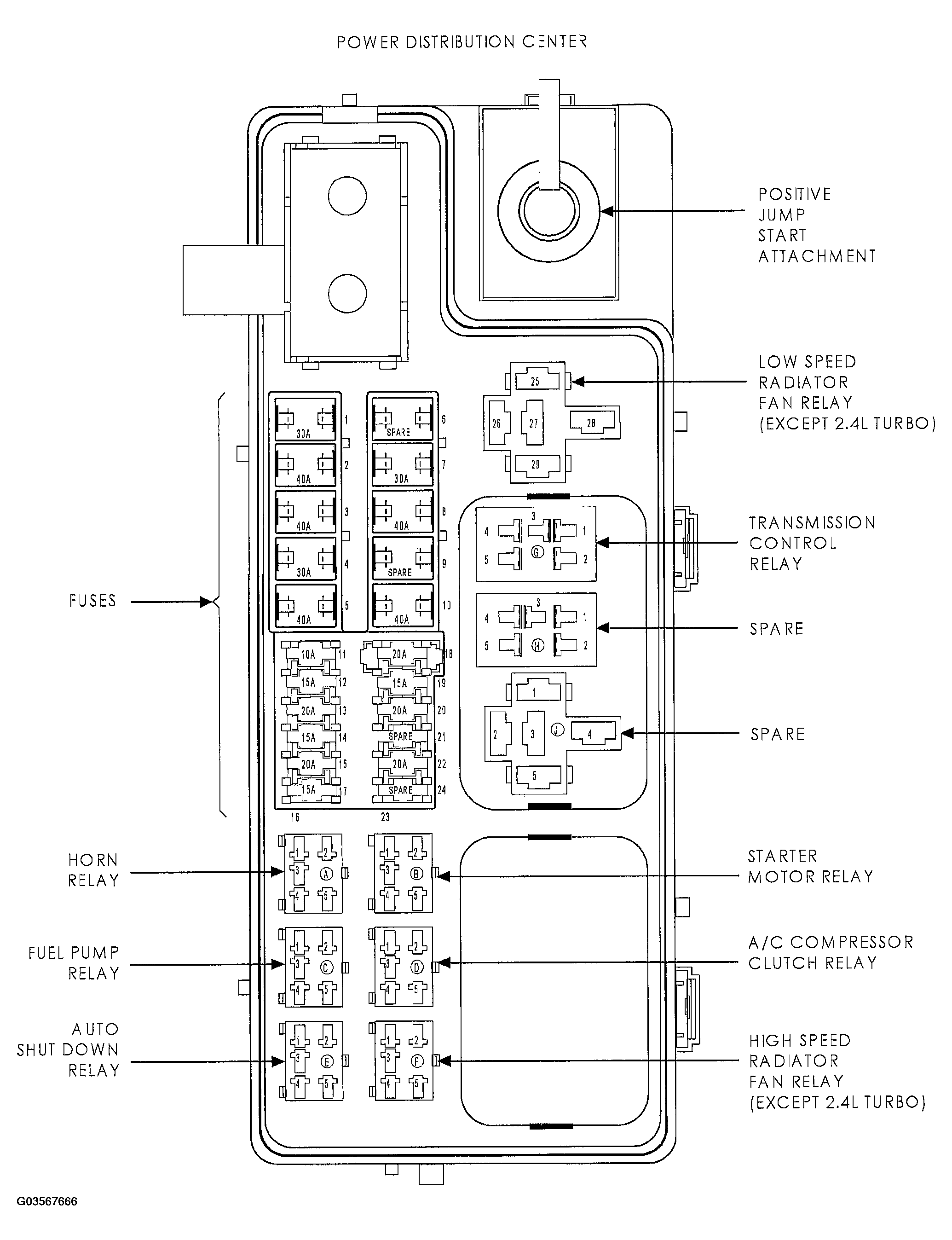

Fig 52: Identifying Power Distribution Center

G03567666

Courtesy of DAIMLERCHRYSLER CORP.

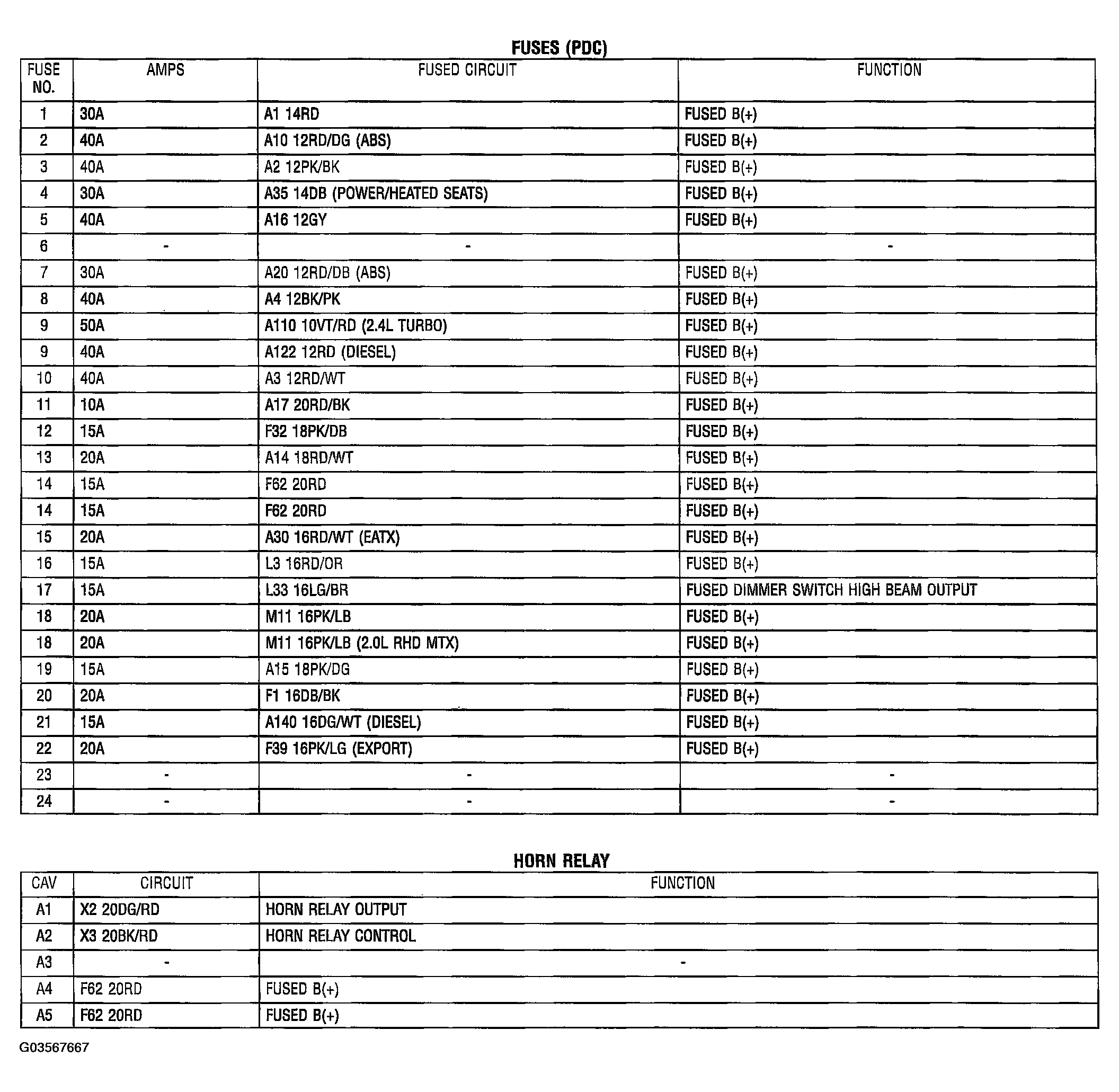

Fig 53: Identifying Fuses (PDC) And Horn Relay Circuits

G03567667

Courtesy of DAIMLERCHRYSLER CORP.

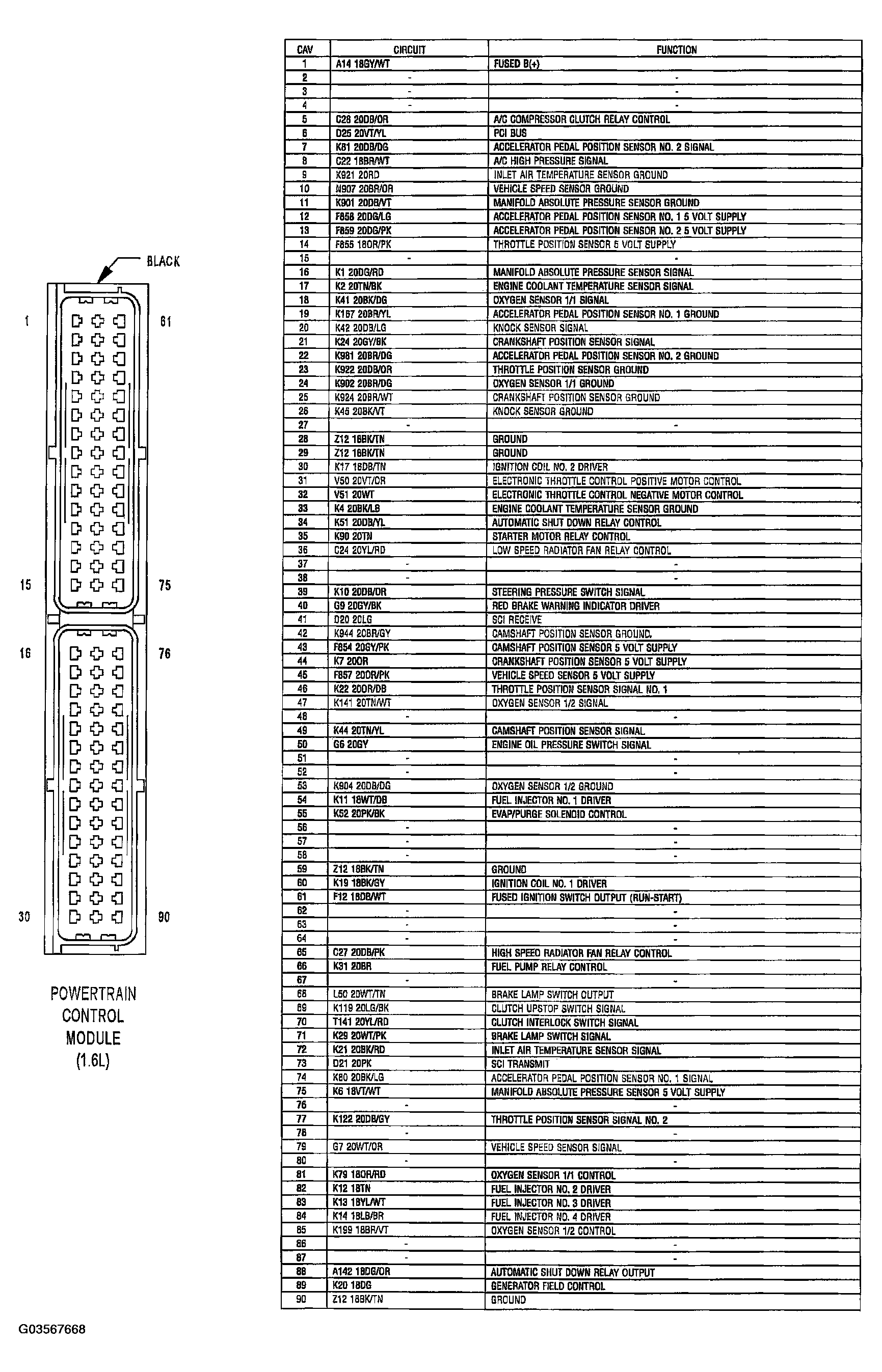

Fig 54: Identifying Powertrain Control Module (1.6L) - Connector Pinouts

G03567668

Courtesy of DAIMLERCHRYSLER CORP.

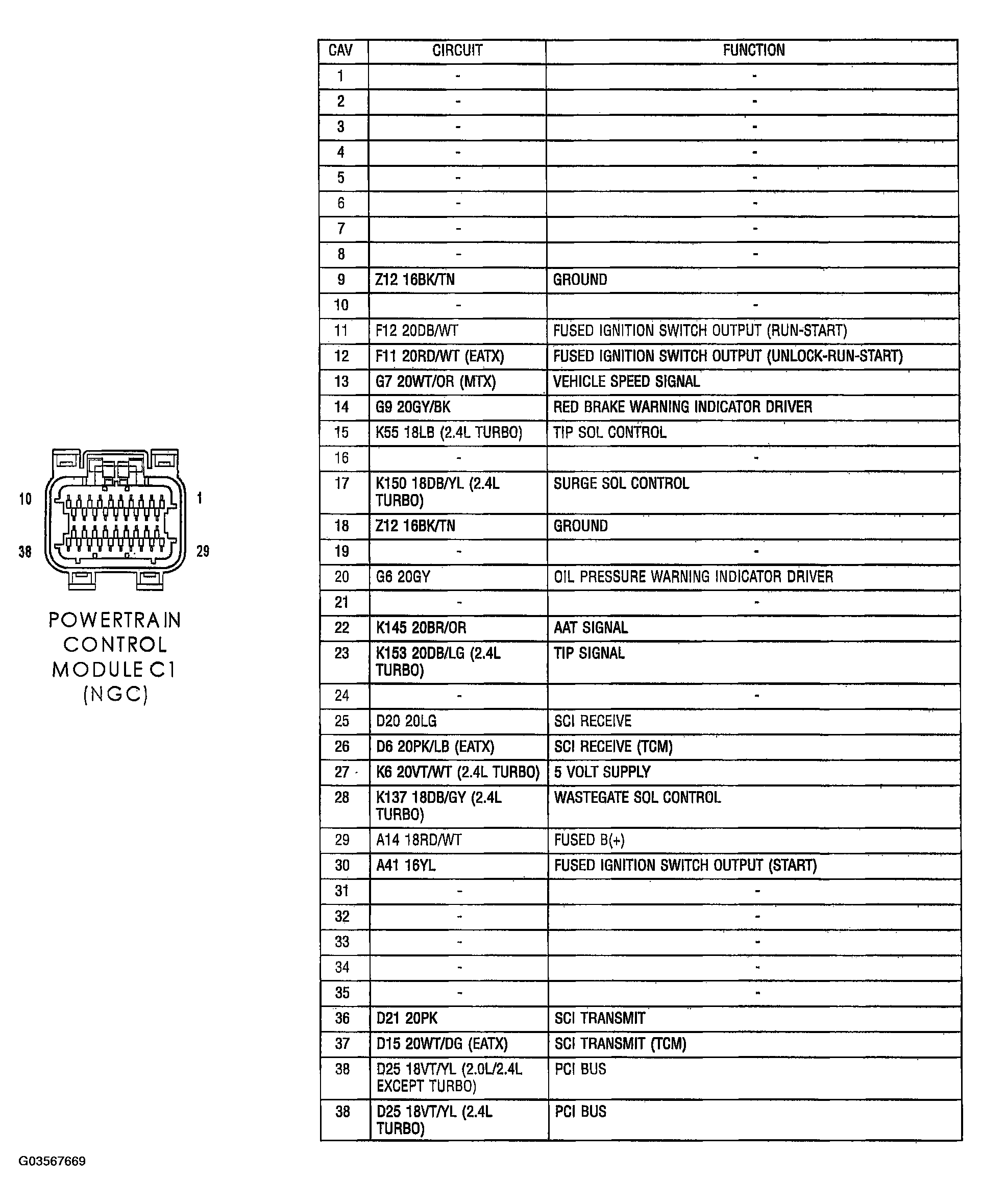

Fig 55: Identifying Powertrain Control Module C1 (NGC) - Connector Pinouts

G03567669

Courtesy of DAIMLERCHRYSLER CORP.

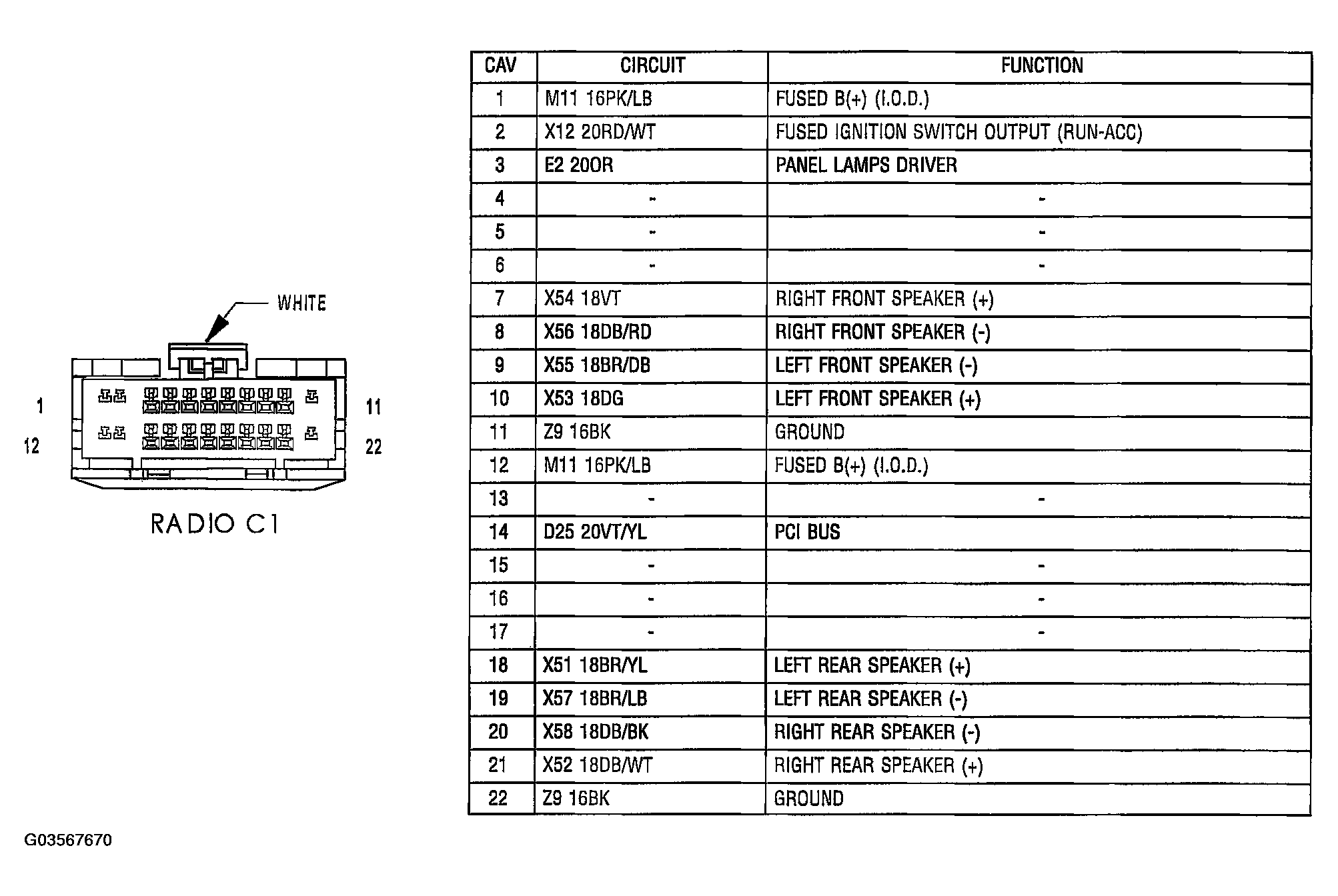

Fig 56: Identifying Radio C1 - Connector Pinouts

G03567670

Courtesy of DAIMLERCHRYSLER CORP.

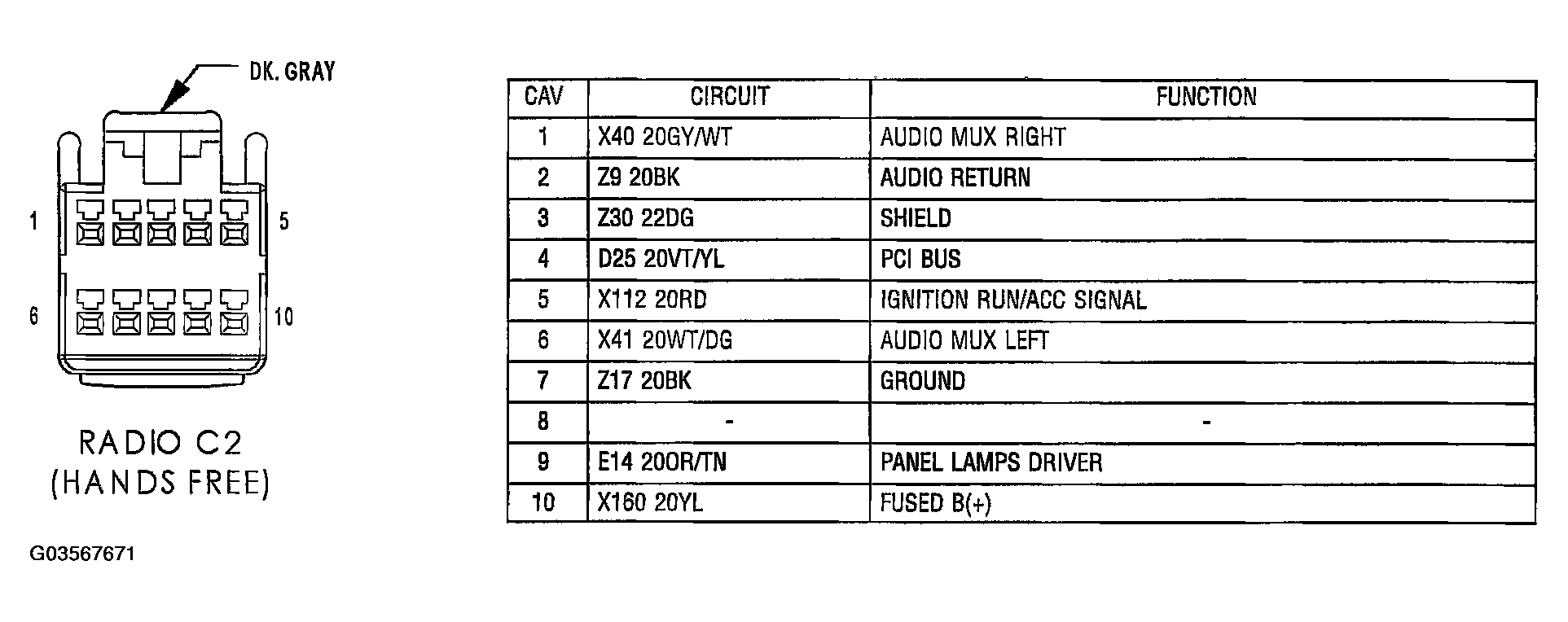

Fig 57: Identifying Radio C2 (Hands Free) - Connector Pinouts

G03567671

Courtesy of DAIMLERCHRYSLER CORP.

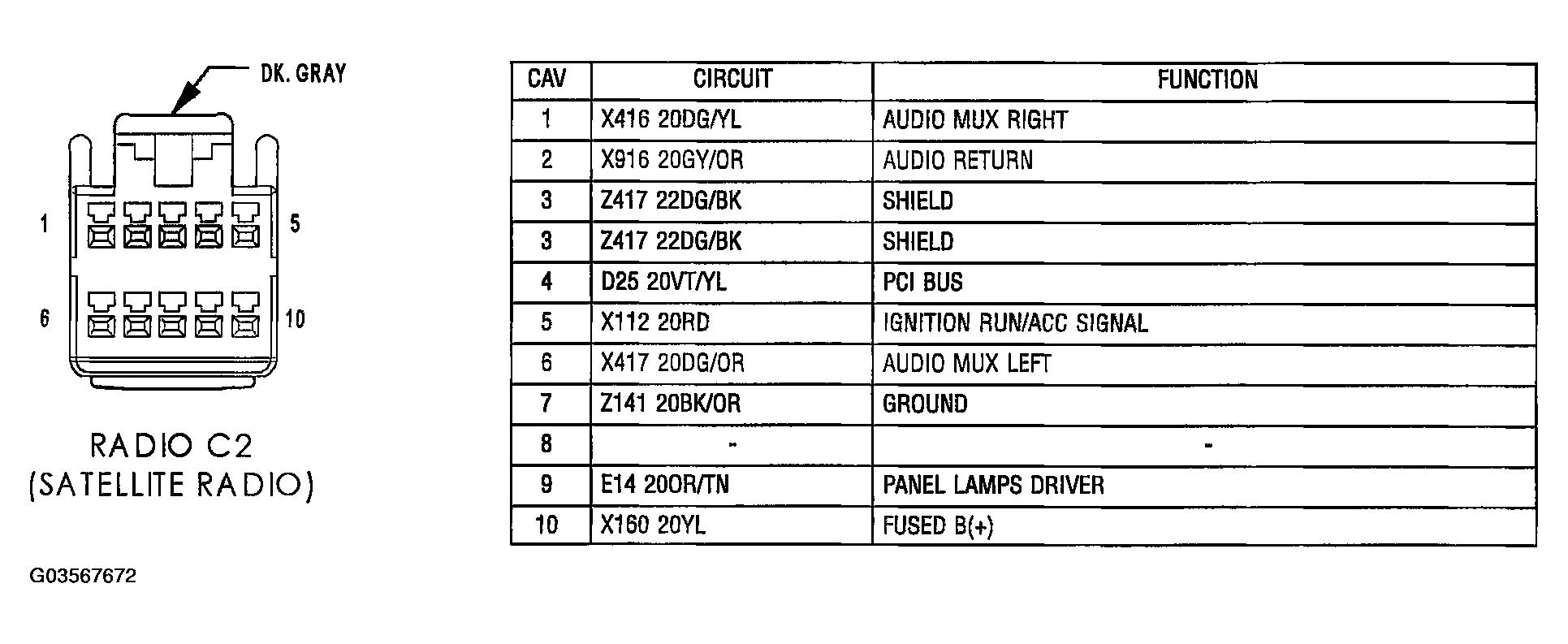

Fig 58: Identifying Radio C2 (Satellite Radio) - Connector Pinouts

G03567672

Courtesy of DAIMLERCHRYSLER CORP.

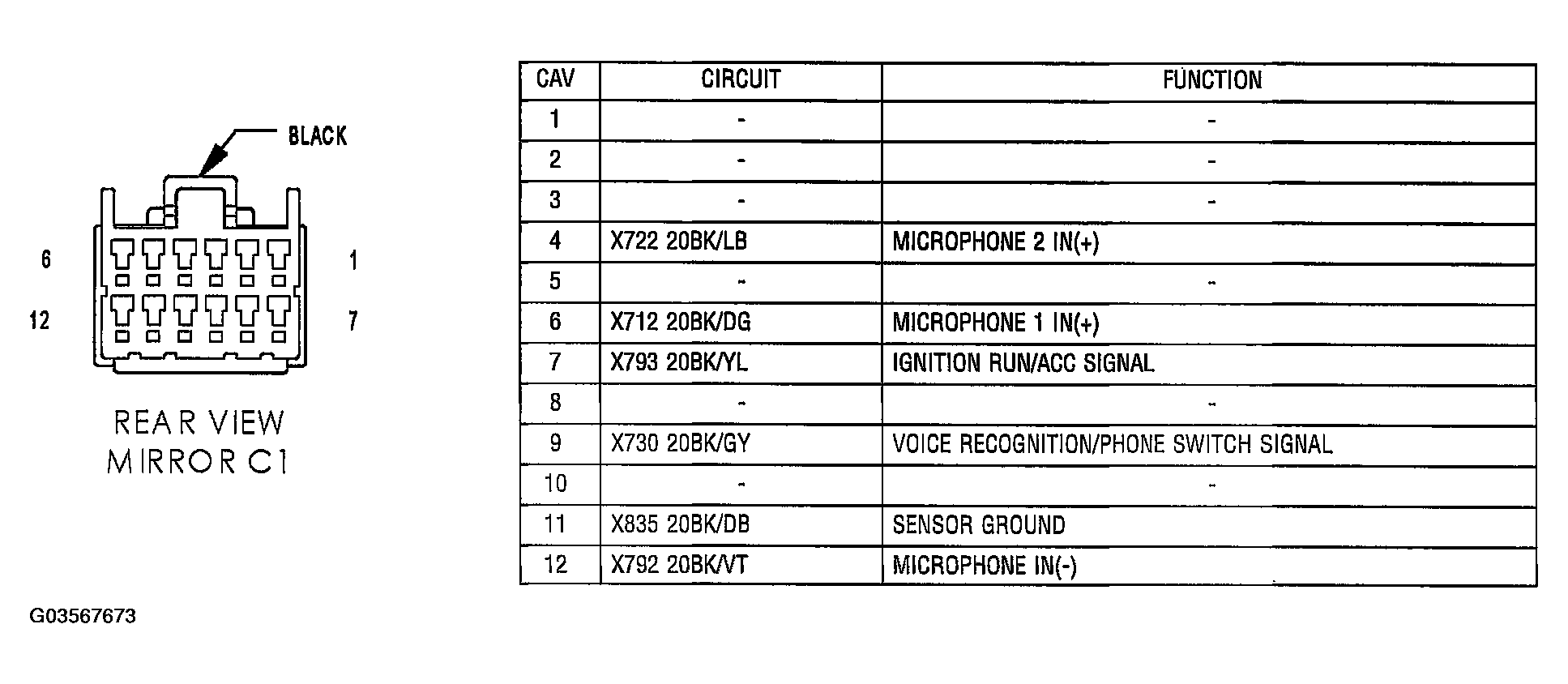

Fig 59: Identifying Rear View Mirror C1 - Connector Pinouts

G03567673

Courtesy of DAIMLERCHRYSLER CORP.

Fig 60: Identifying Remote Keyless Entry Antenna (Japan) - Connector Pinouts

G03567674

Courtesy of DAIMLERCHRYSLER CORP.

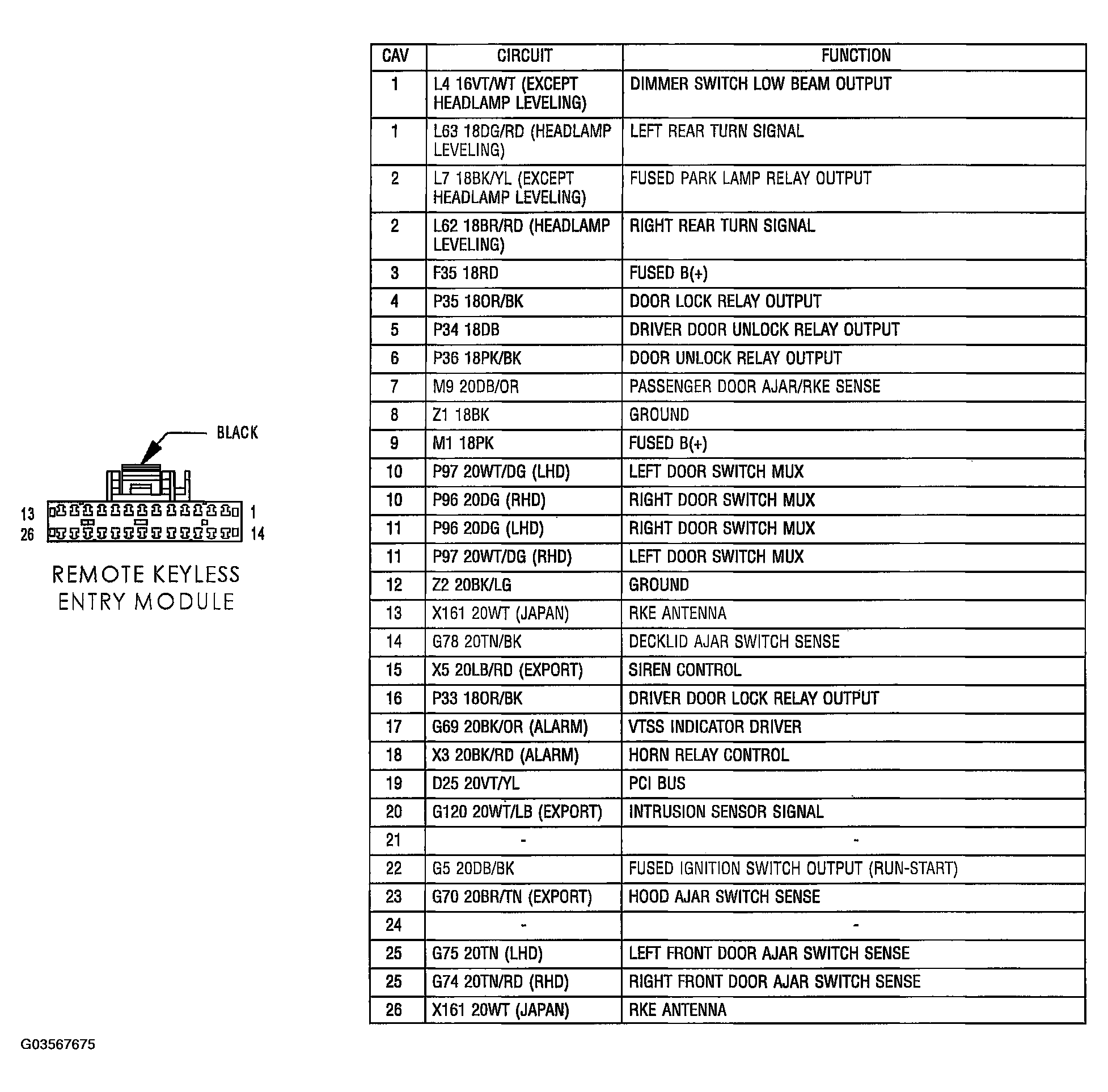

Fig 61: Identifying Remote Keyless Entry Module - Connector Pinouts

G03567675

Courtesy of DAIMLERCHRYSLER CORP.

Fig 62: Identifying Right Cylinder Lock Switch (Export) - Connector Pinouts

G03567676

Courtesy of DAIMLERCHRYSLER CORP.

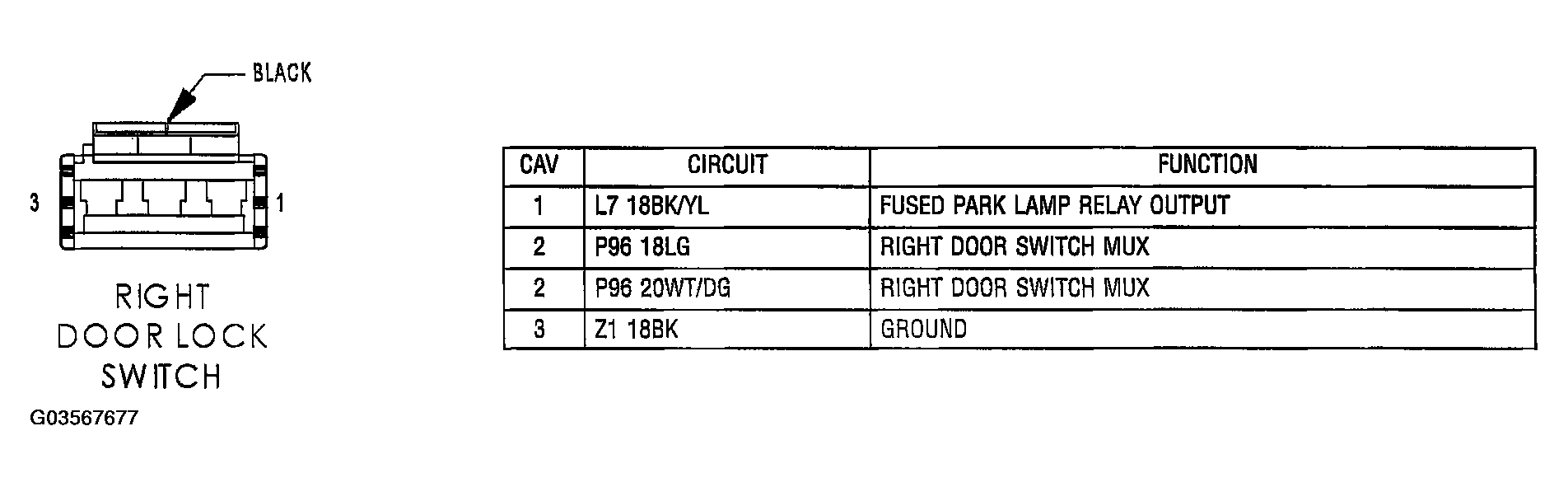

Fig 63: Identifying Right Door Lock Switch - Connector Pinouts

G03567677

Courtesy of DAIMLERCHRYSLER CORP.

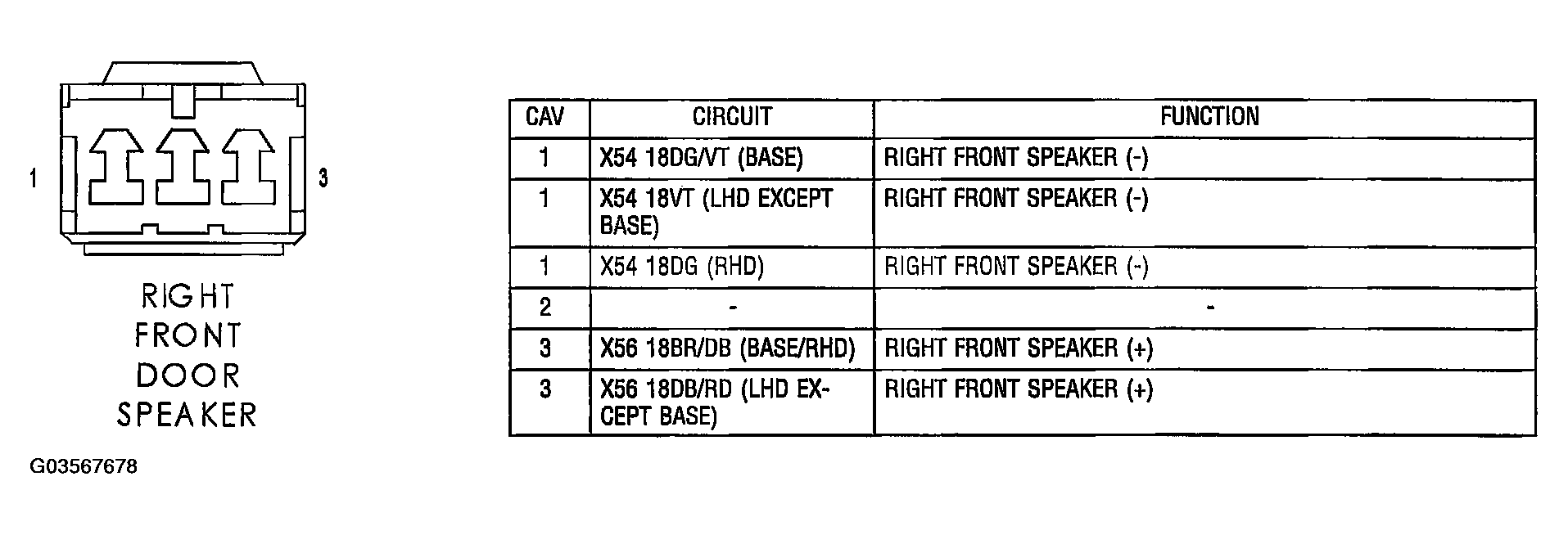

Fig 64: Identifying Right Front Door Speaker - Connector Pinouts

G03567678

Courtesy of DAIMLERCHRYSLER CORP.

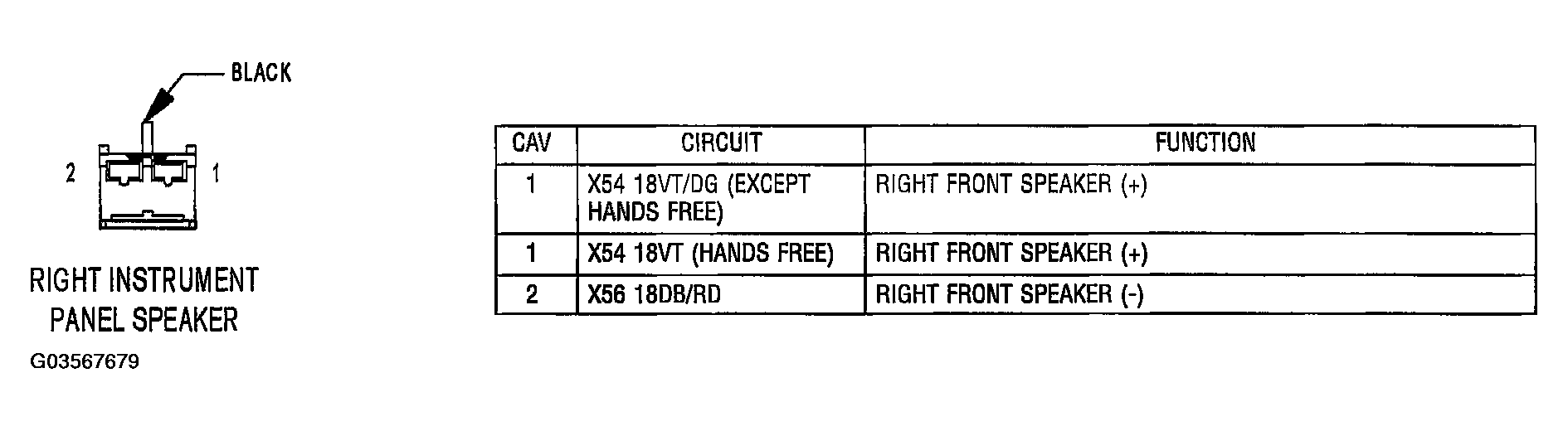

Fig 65: Identifying Right Instrument Panel Speaker - Connector Pinouts

G03567679

Courtesy of DAIMLERCHRYSLER CORP.

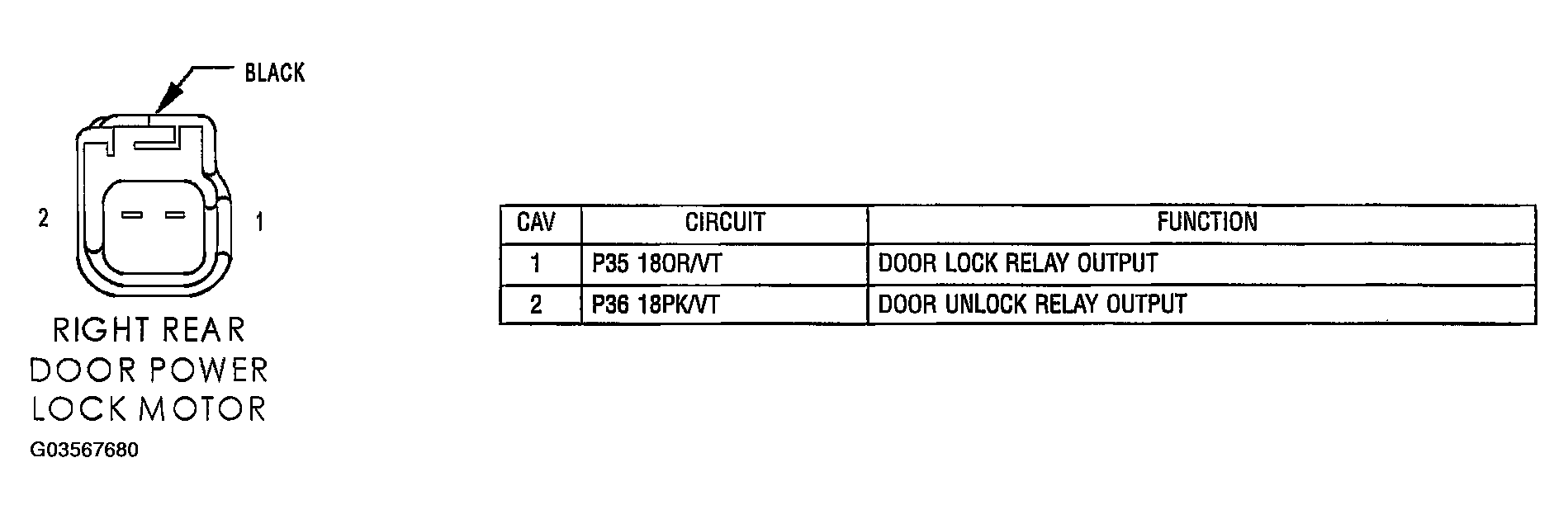

Fig 66: Identifying Right Rear Door Power Lock Motor - Connector Pinouts

G03567680

Courtesy of DAIMLERCHRYSLER CORP.

Fig 67: Identifying Right Rear Speaker - Connector Pinouts

G03567681

Courtesy of DAIMLERCHRYSLER CORP.

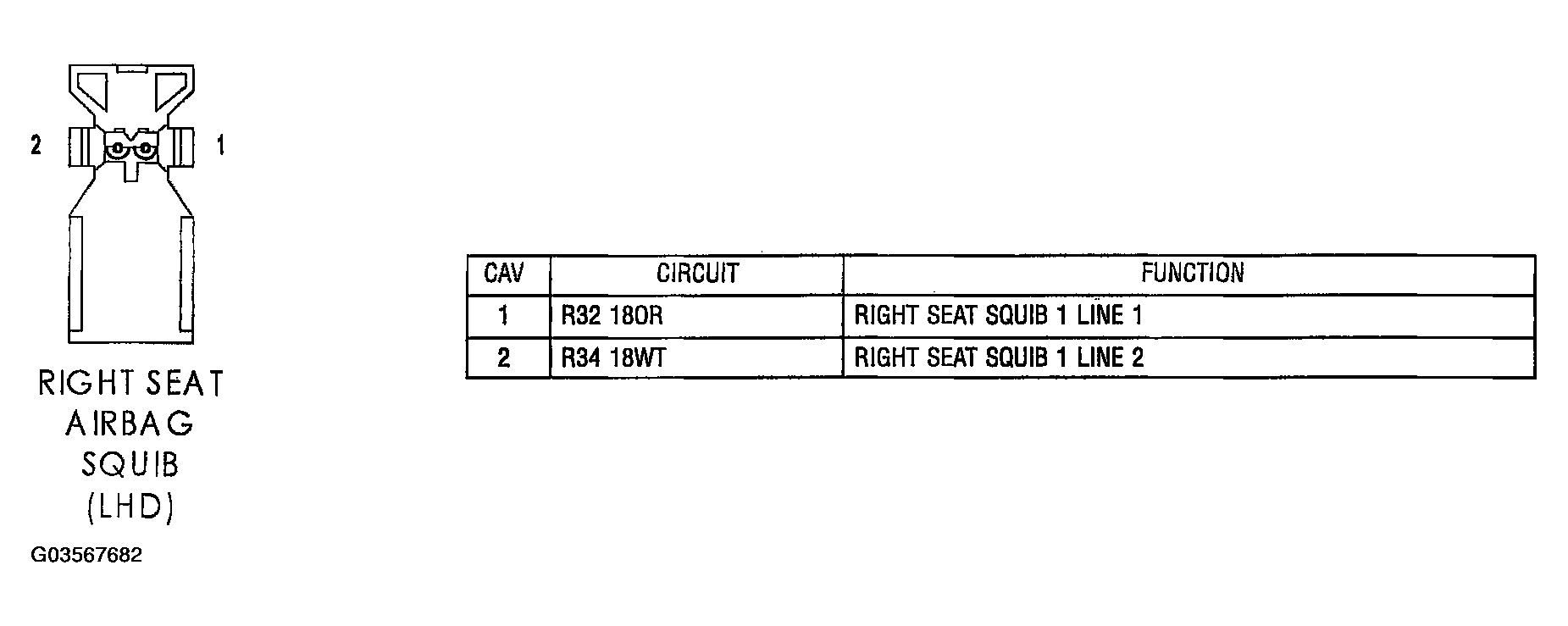

Fig 68: Identifying Right Seat Airbag Squib (LHD) - Connector Pinouts

G03567682

Courtesy of DAIMLERCHRYSLER CORP.

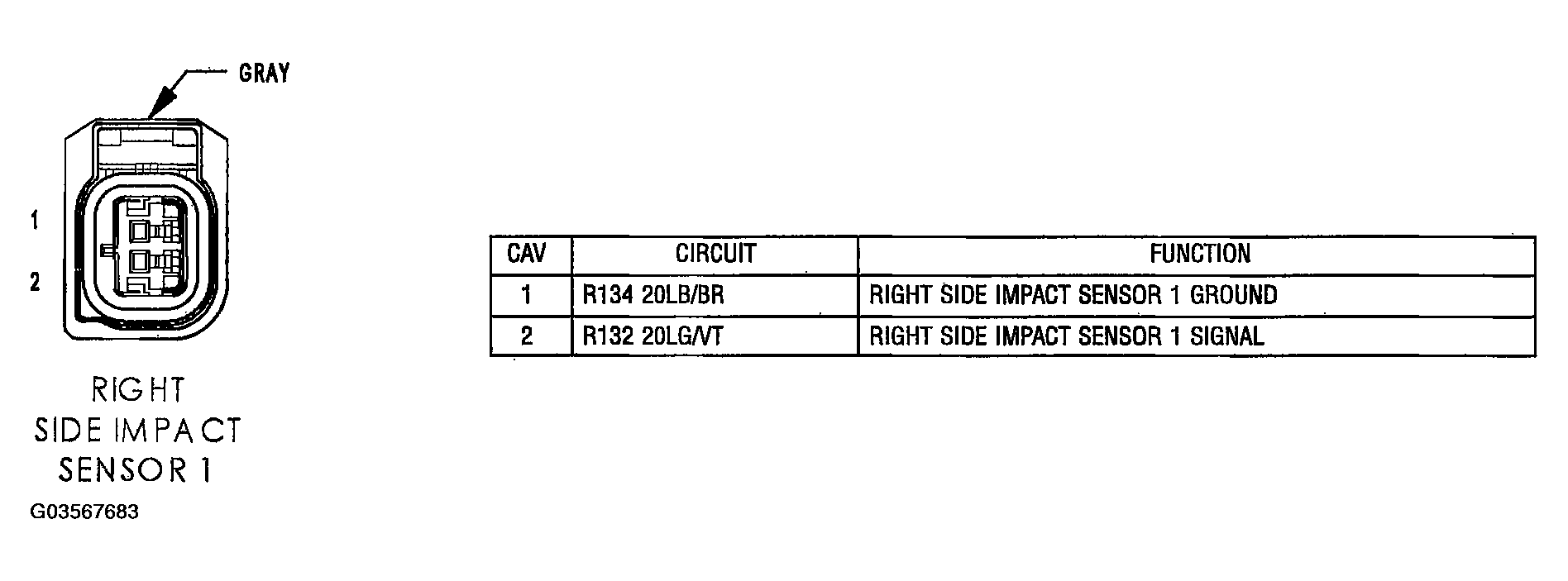

Fig 69: Identifying Right Side Impact Sensor 1 - Connector Pinouts

G03567683

Courtesy of DAIMLERCHRYSLER CORP.

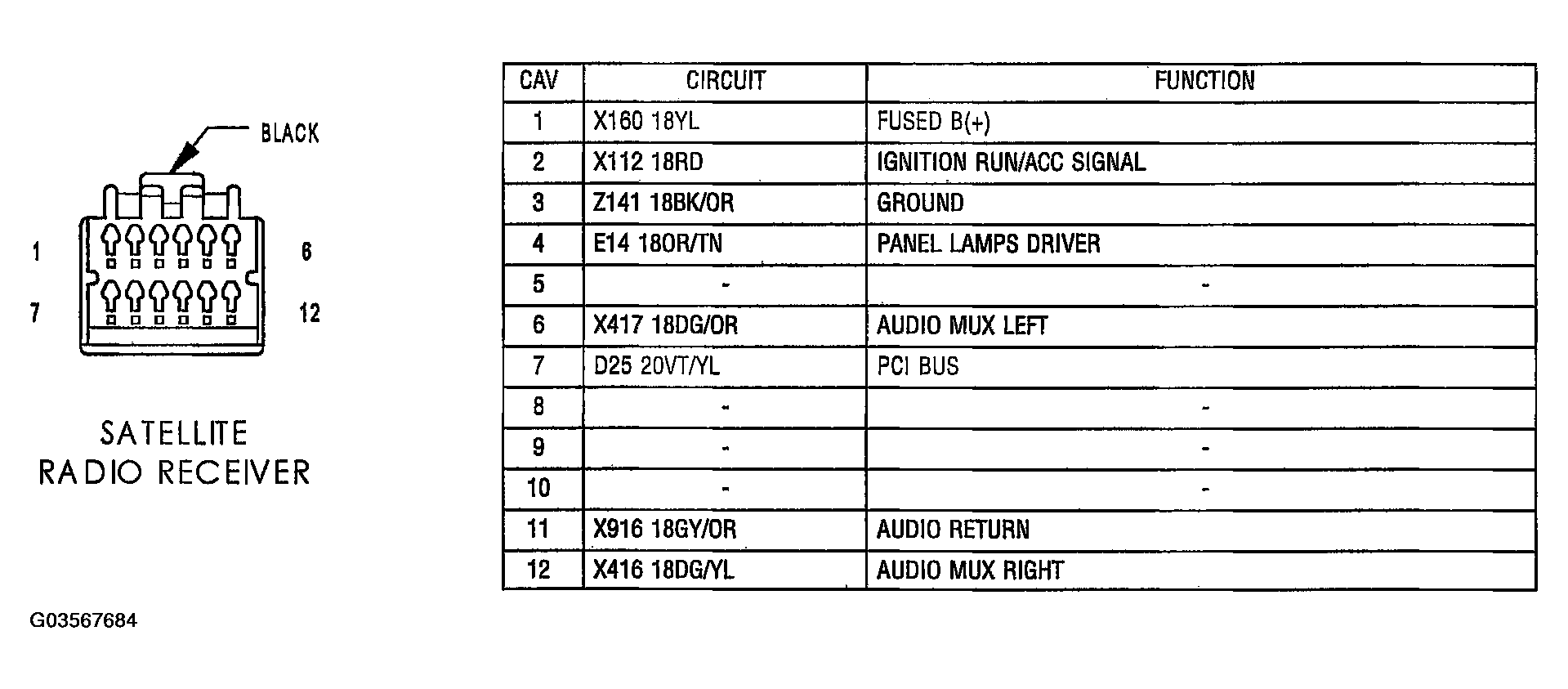

Fig 70: Identifying Satellite Radio Receiver - Connector Pinouts

G03567684

Courtesy of DAIMLERCHRYSLER CORP.

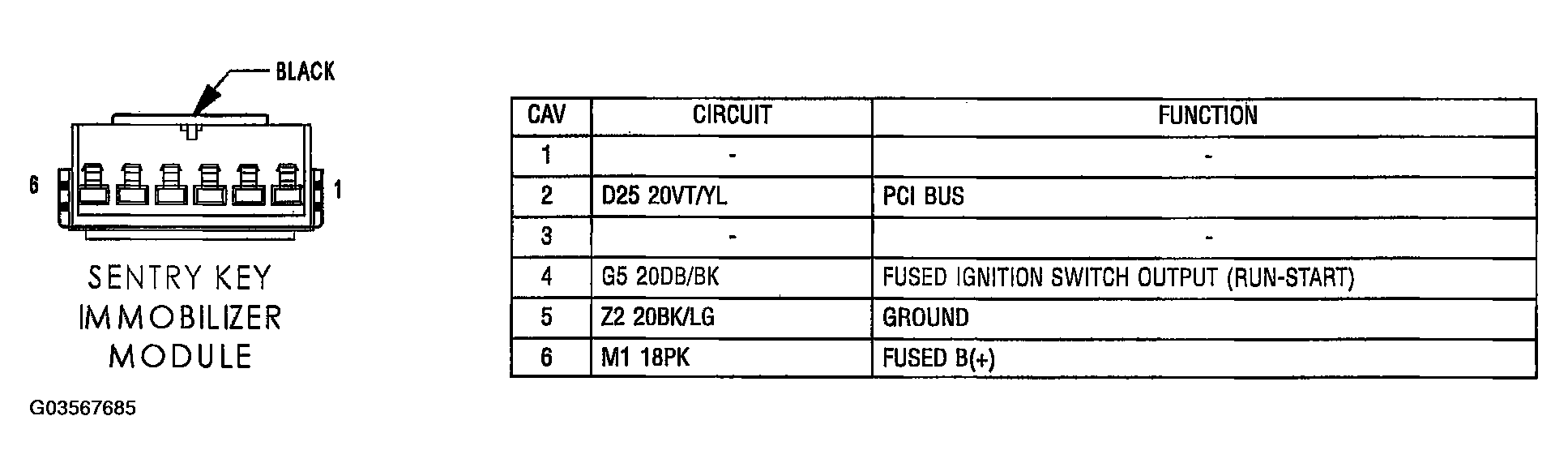

Fig 71: Identifying Sentry Key Immobilizer Module - Black 6 Way Connector Pinouts

G03567685

Courtesy of DAIMLERCHRYSLER CORP.

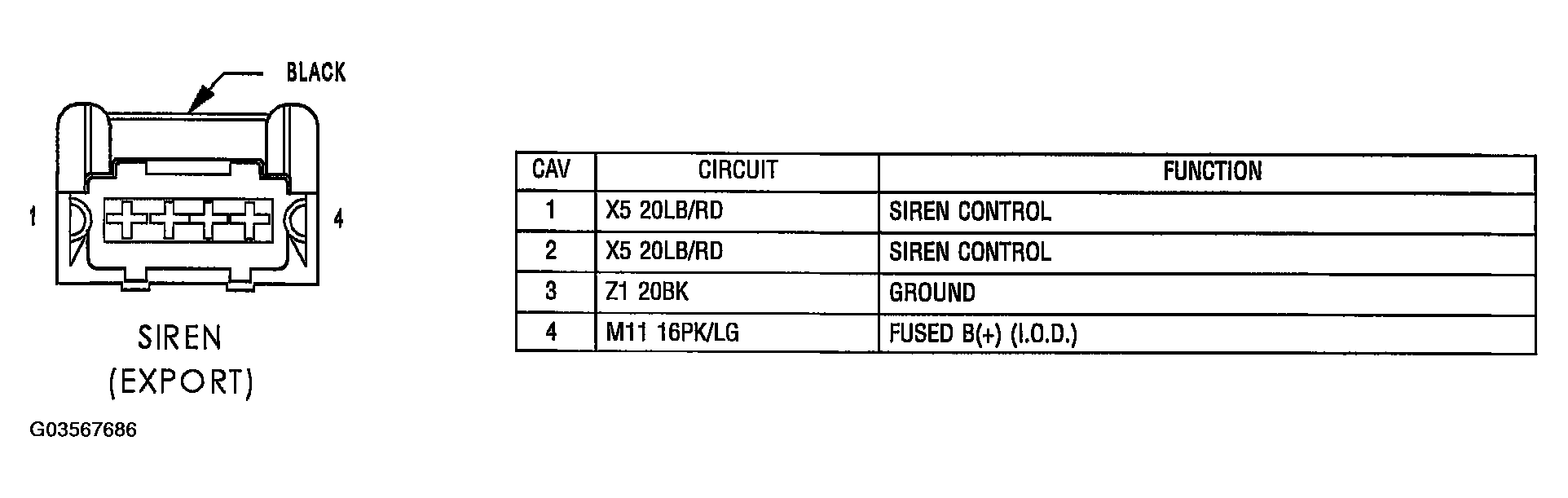

Fig 72: Identifying Siren (Export) - Connector Pinouts

G03567686

Courtesy of DAIMLERCHRYSLER CORP.
