Ambient Temp Sensor: Removal

  1. Open hood.
  2. Working through the hole in the top center of the grille, remove the one retaining nut from the appropriate ambient temperature sensor.

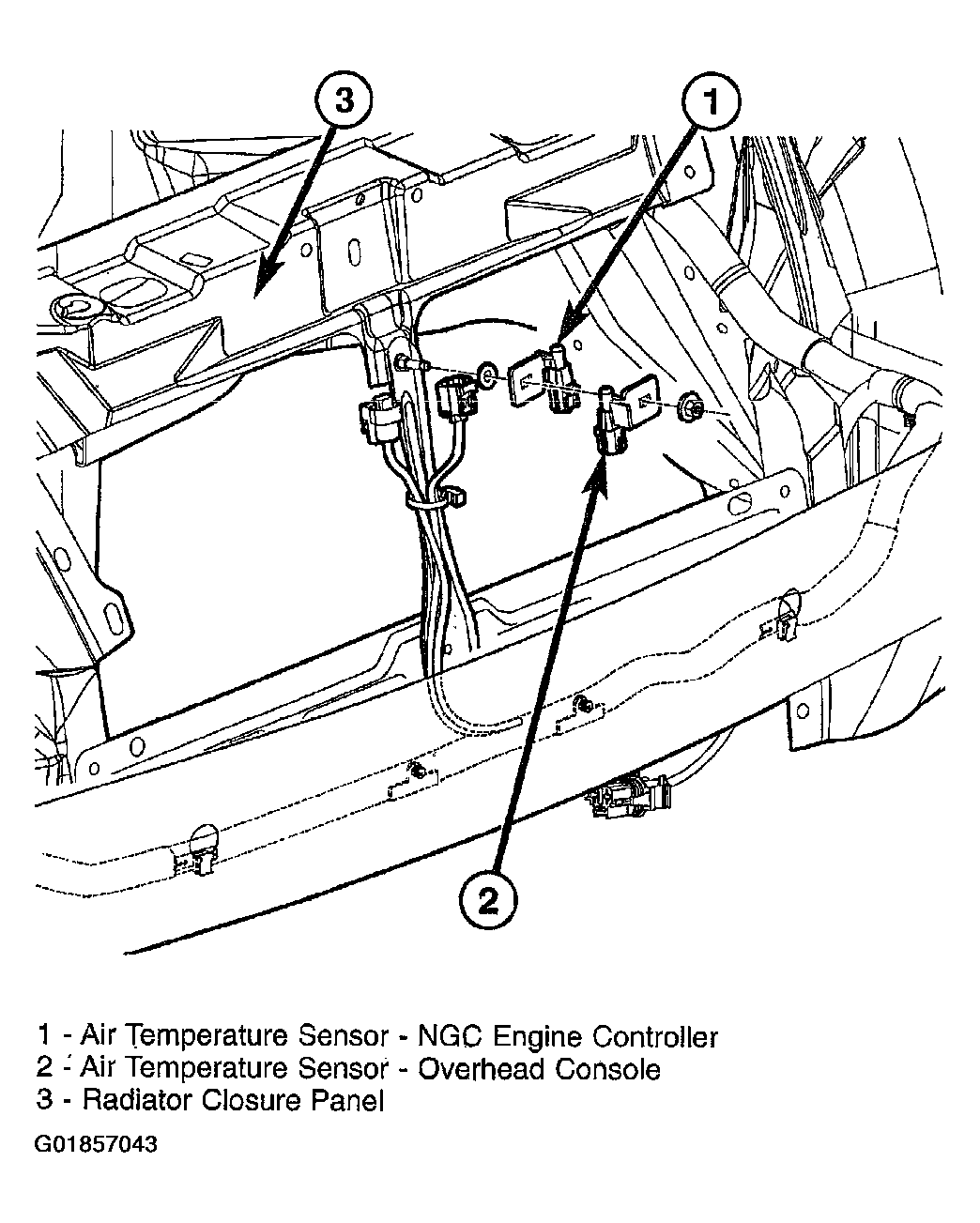

    Fig 1: Locating Ambient Air Temperature Sensor
    G01857043Courtesy of DAIMLERCHRYSLER CORP.
  3. Disconnect the ambient air temperature sensor electrical connector and remove the sensor from the vehicle.
