Transmission Range Sensor Connector End View

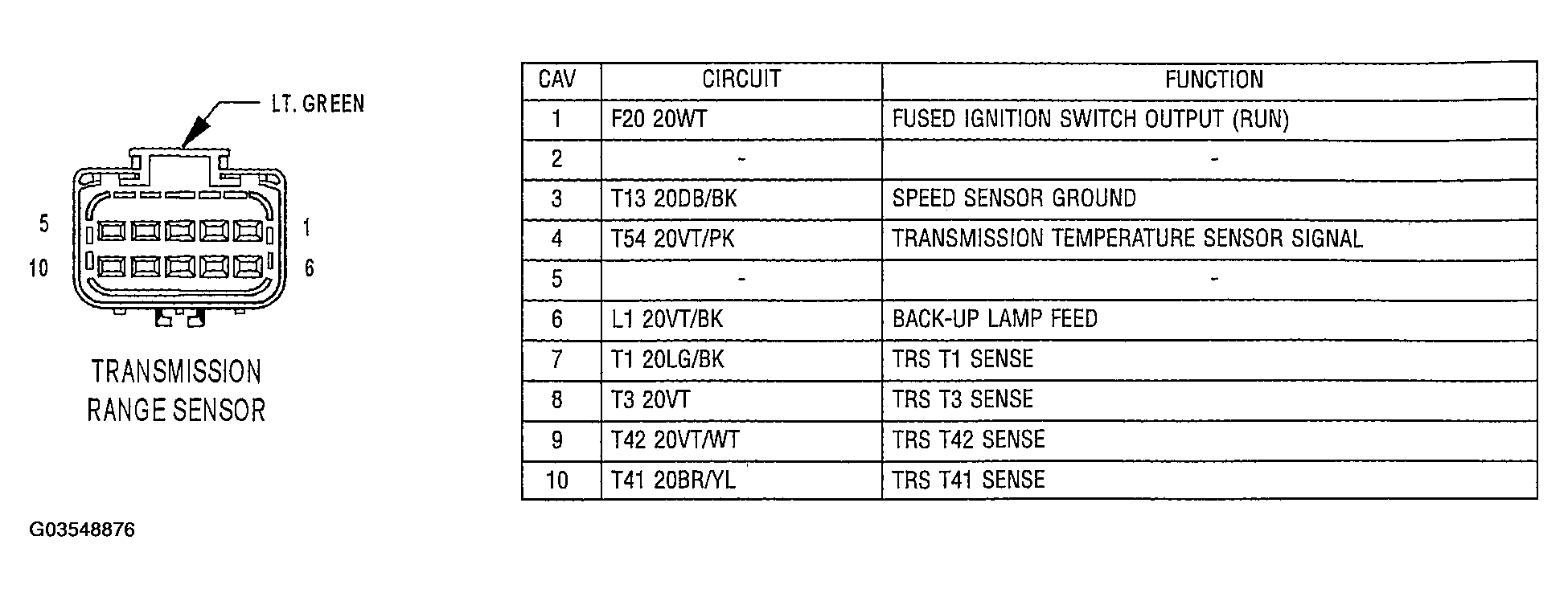

Fig 1: Identifying Transmission Range Sensor Connector Terminals And Specification (LT. Green 10 Way)

G03548876

Courtesy of DAIMLERCHRYSLER CORP.
