Fuse Block Connector Terminals And Specification

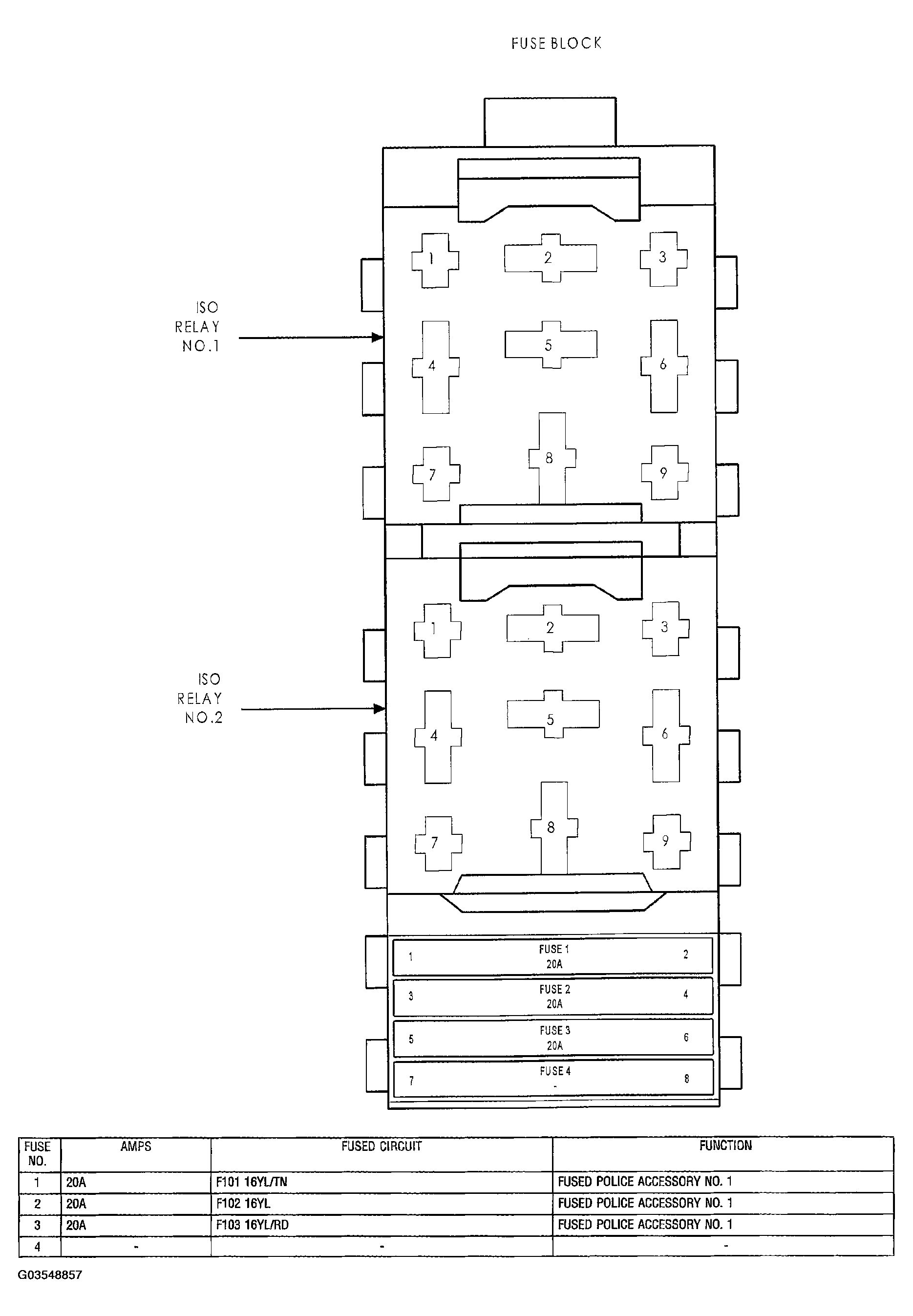

Fig 1: Identifying Fuses Connector Terminals And Specification (FB)

G03548857

Courtesy of DAIMLERCHRYSLER CORP.
