Data Link Connector Connector End View

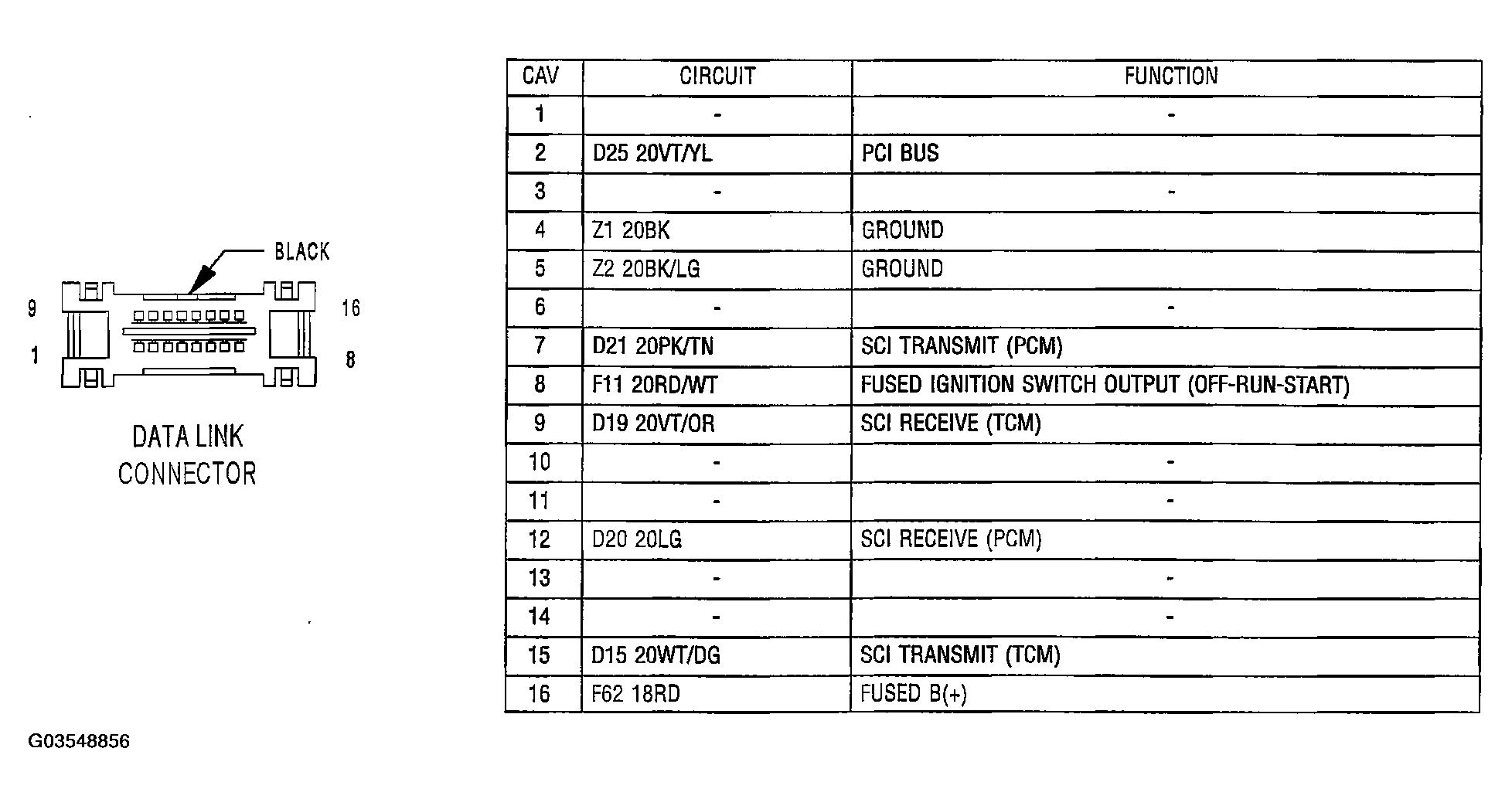

Fig 1: Identifying Data Link Connector Terminals And Specification (Black 16 Way)

G03548856

Courtesy of DAIMLERCHRYSLER CORP.
