Crankshaft Position Sensor Connector End View

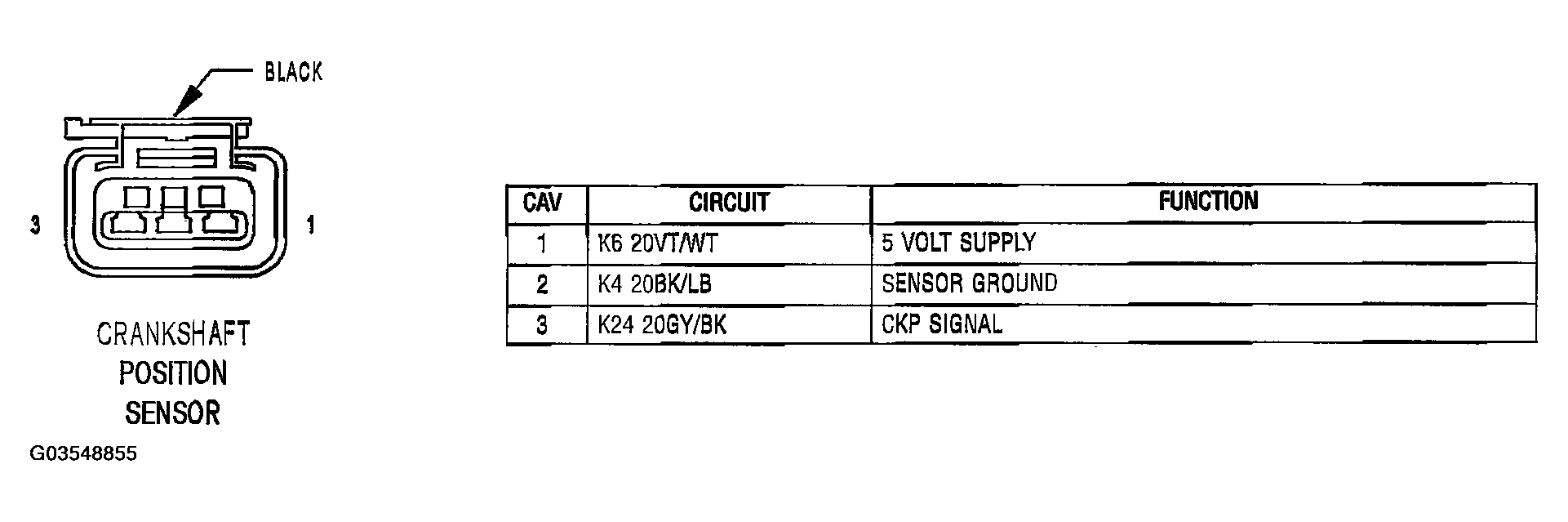

Fig 1: Identifying Crankshaft Position Sensor Connector Terminals And Specification (Black 3 Way)

G03548855

Courtesy of DAIMLERCHRYSLER CORP.
