C107 Connector End View

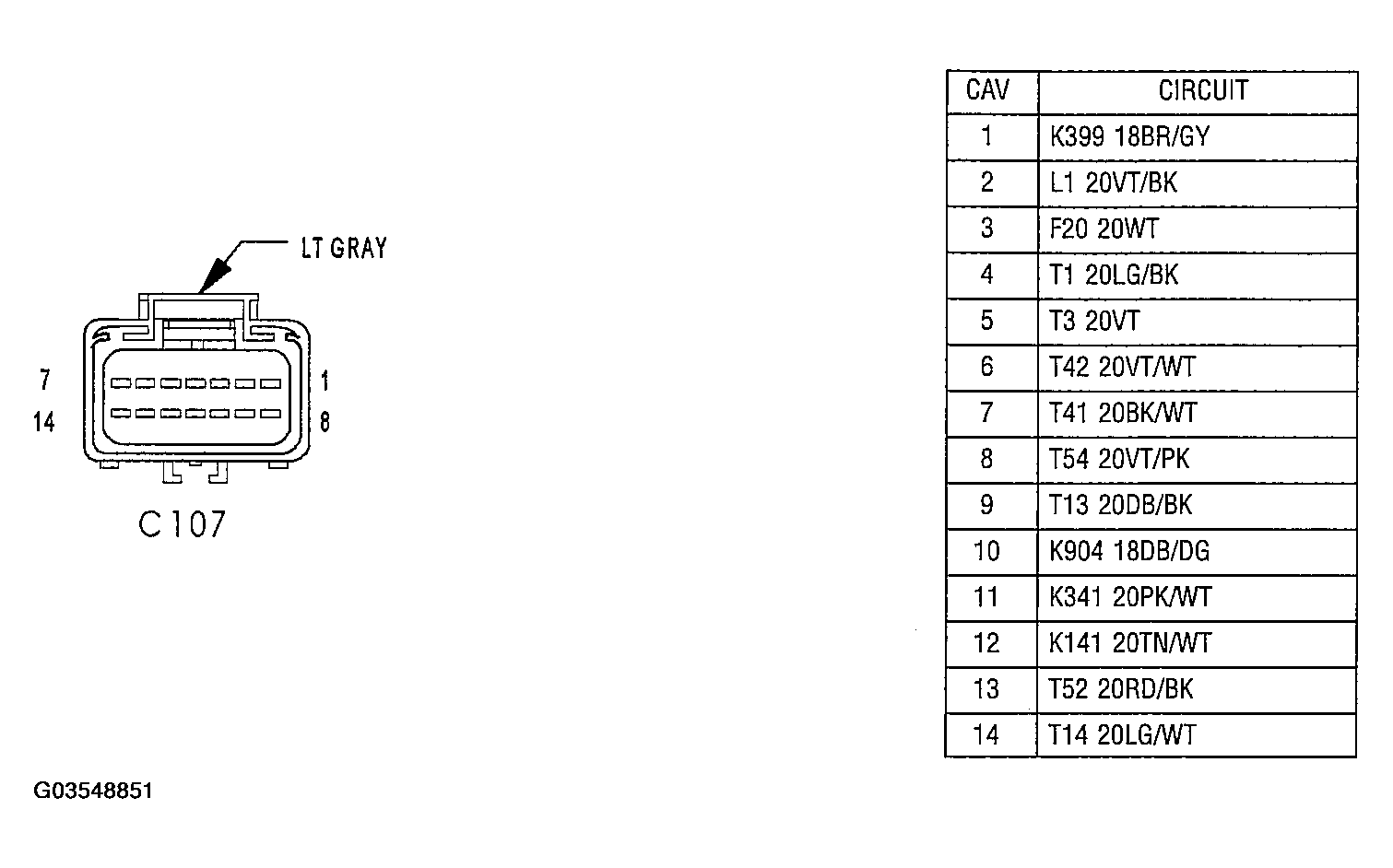

Fig 1: Identifying C107 Connector Terminals And Specification (LT. Gray - Headlamp/Dash Side)
G03548851Courtesy of DAIMLERCHRYSLER CORP.

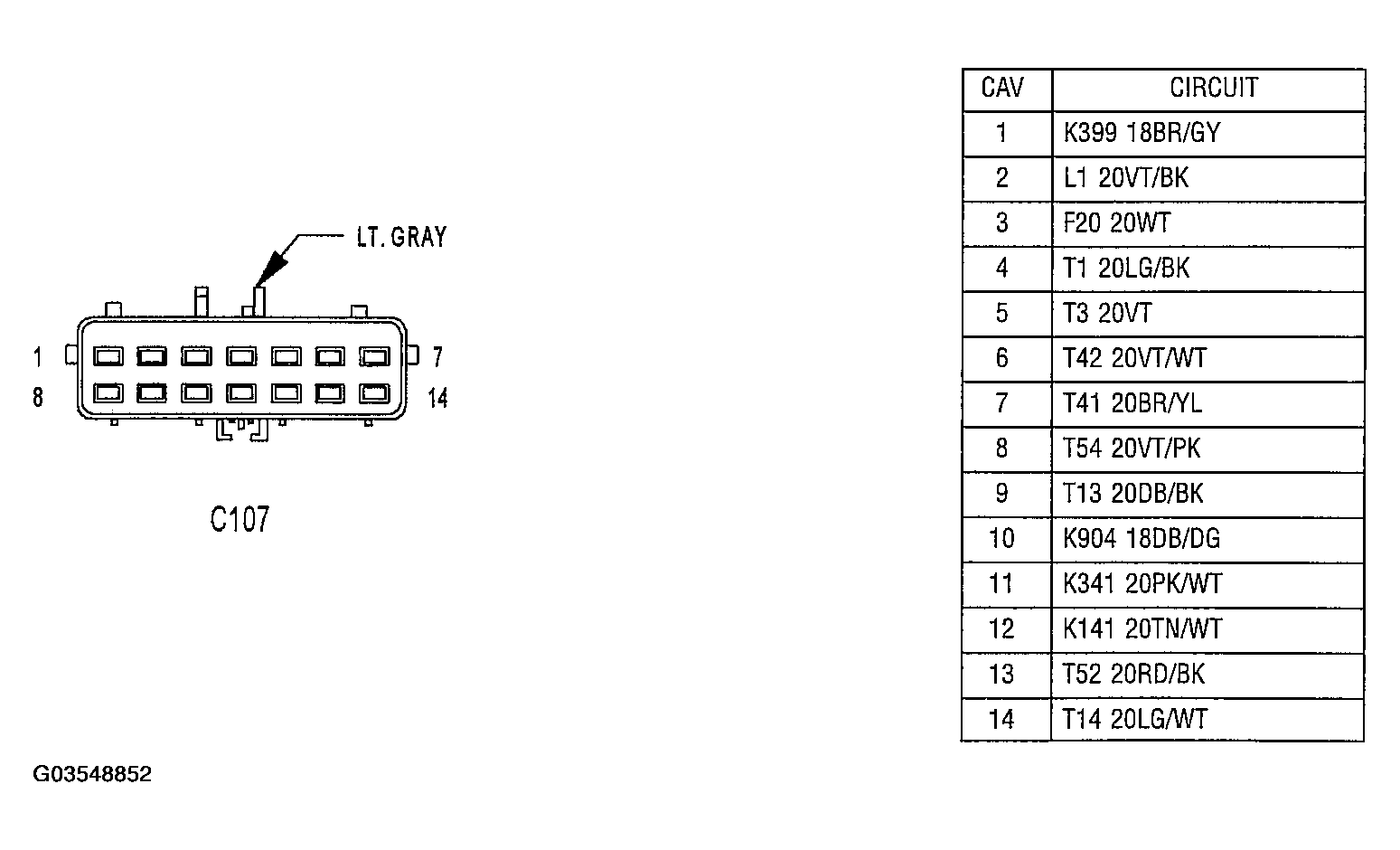

Fig 2: Identifying C107 Connector Terminals And Specification (LT. Gray - Transmission Side)
G03548852Courtesy of DAIMLERCHRYSLER CORP.
