Back Up Lamp Connector End Views

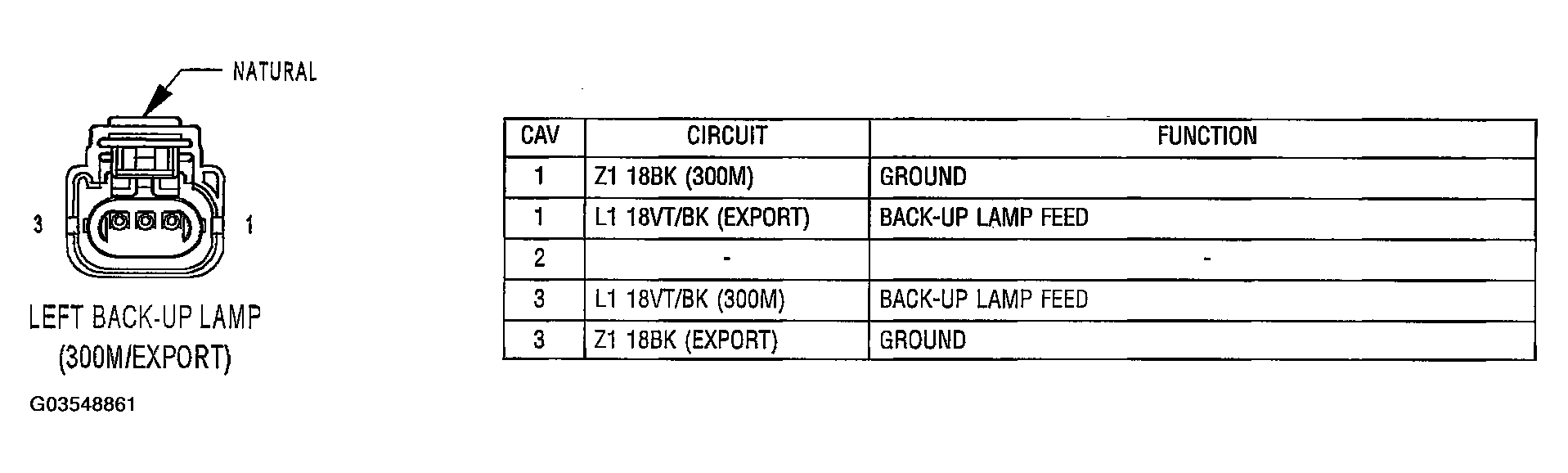

Fig 1: Identifying Left Back-Up Lamp Connector Terminals And Specification (300M/Export - Natural 3 Way)
G03548861Courtesy of DAIMLERCHRYSLER CORP.
Fig 2: Identifying Left Back-Up Lamp Connector Terminals And Specification (Concorde/LTD - Natural 2 Way)
G03548862Courtesy of DAIMLERCHRYSLER CORP.
Fig 3: Identifying Left Back-Up Lamp Connector Terminals And Specification (Dodge - Gray 2 Way)
G03548863Courtesy of DAIMLERCHRYSLER CORP.

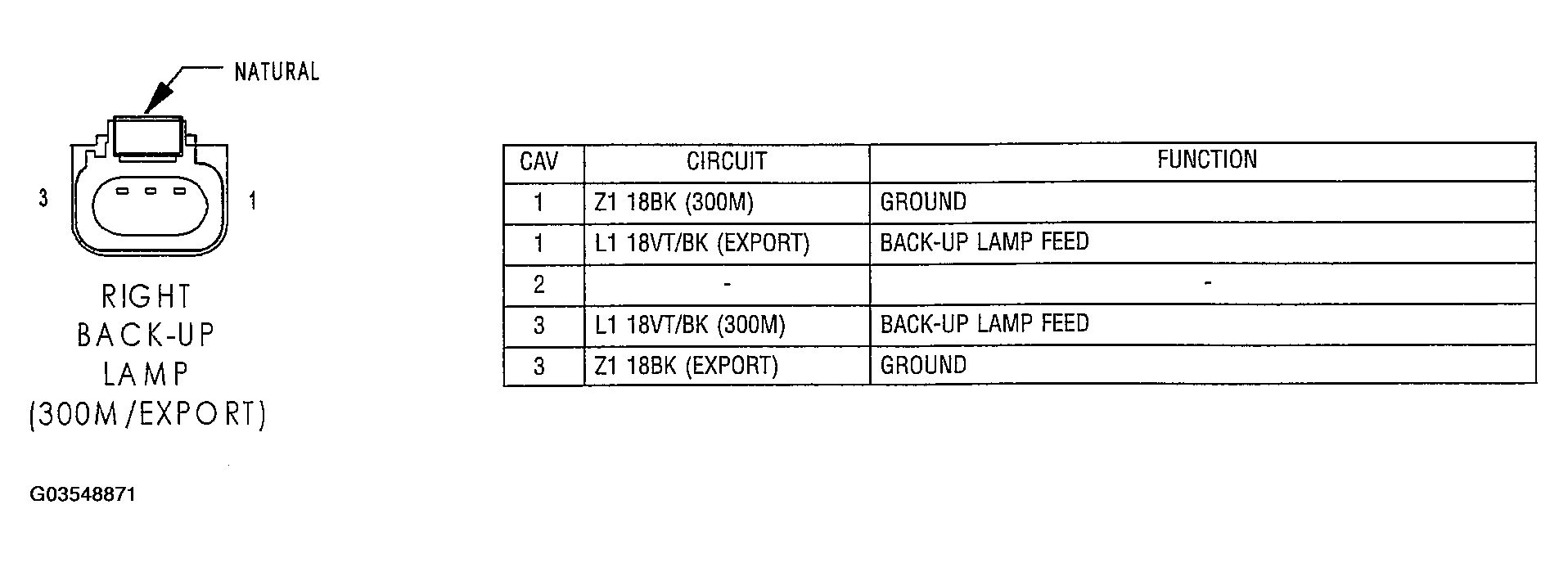

Fig 4: Identifying Right Back-Up Lamp Connector Terminals And Specification (300M/Export - Natural 3 Way)
G03548871Courtesy of DAIMLERCHRYSLER CORP.
Fig 5: Identifying Right Back-Up Lamp Connector Terminals And Specification (Concorde/LTD - Natural 2 Way)
G03548872Courtesy of DAIMLERCHRYSLER CORP.
Fig 6: Identifying Right Back-Up Lamp Connector Terminals And Specification (Dodge - Gray 2 Way)
G03548873Courtesy of DAIMLERCHRYSLER CORP.
