Transmission Range Sensor: Removal

Disconnect the Transmission Range Sensor (TRS) connector.
Remove valve body assembly from vehicle.
Remove the manual shaft seal. See Fig 1 .
Remove manual shaft/TRS retaining screw. See Fig 2
Slide TRS off of manual valve shaft.

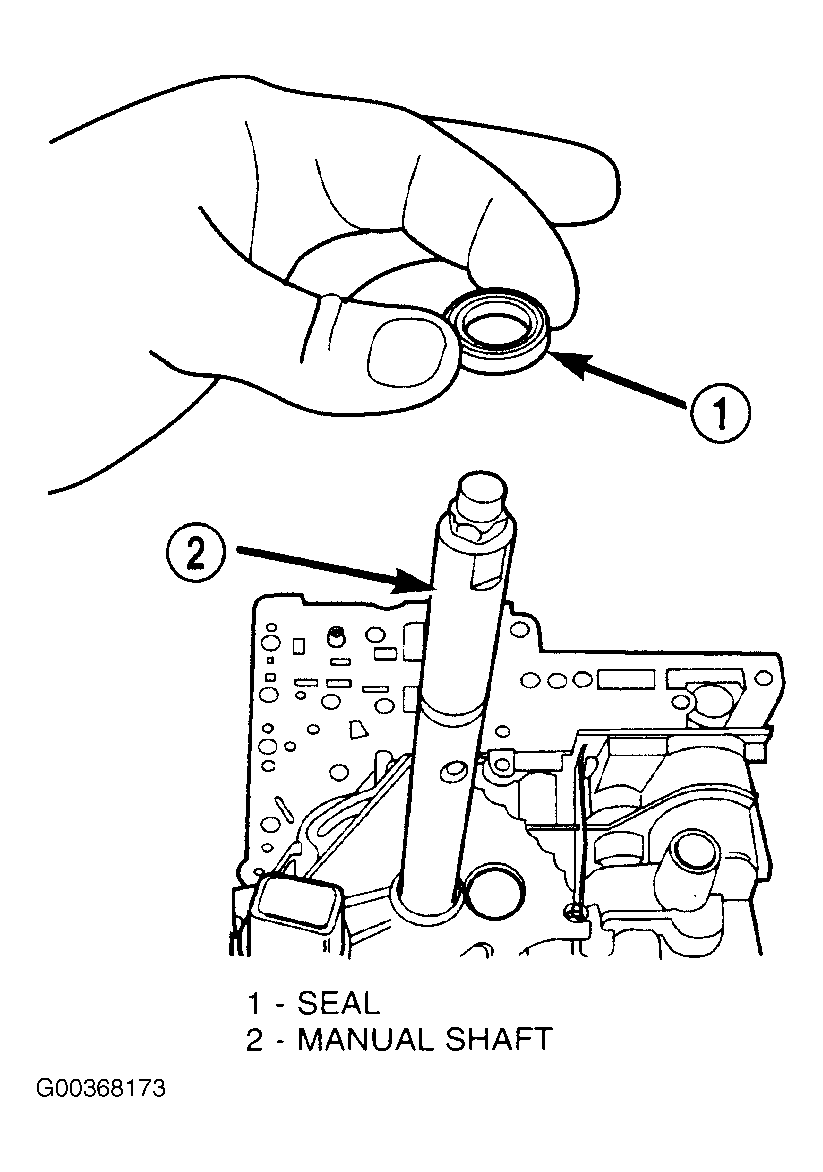

Fig 1: Removing Manual Shaft Seal

G00368173

Courtesy of CHRYSLER CORP.

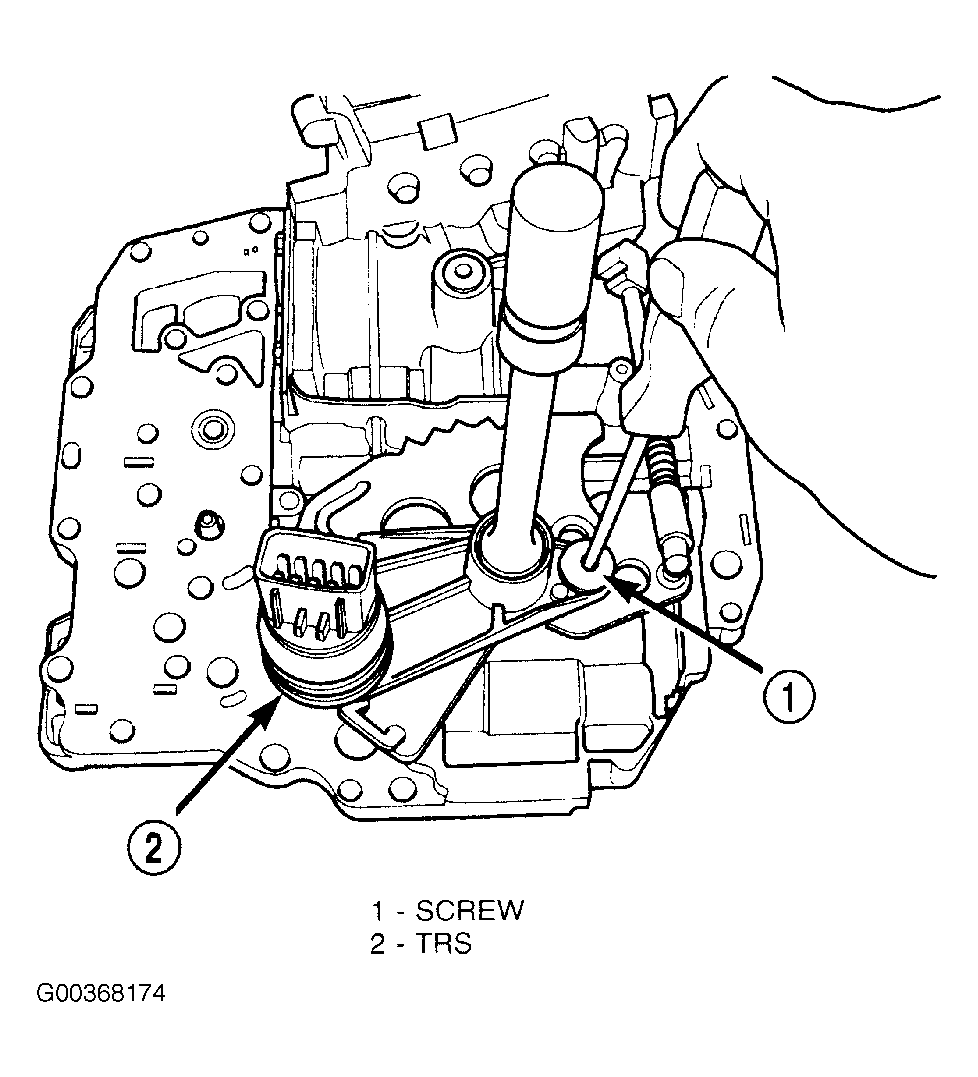

Fig 2: Removing Manual Shaft Retaining Screw

G00368174

Courtesy of CHRYSLER CORP.
