Steering Coupling: Removal

  1. Remove steering column assembly from vehicle. .
  2. Install Puller, Special Tool 6831-A, through center of roll pin in flex coupler and install knurled nut (Fig 1 ).

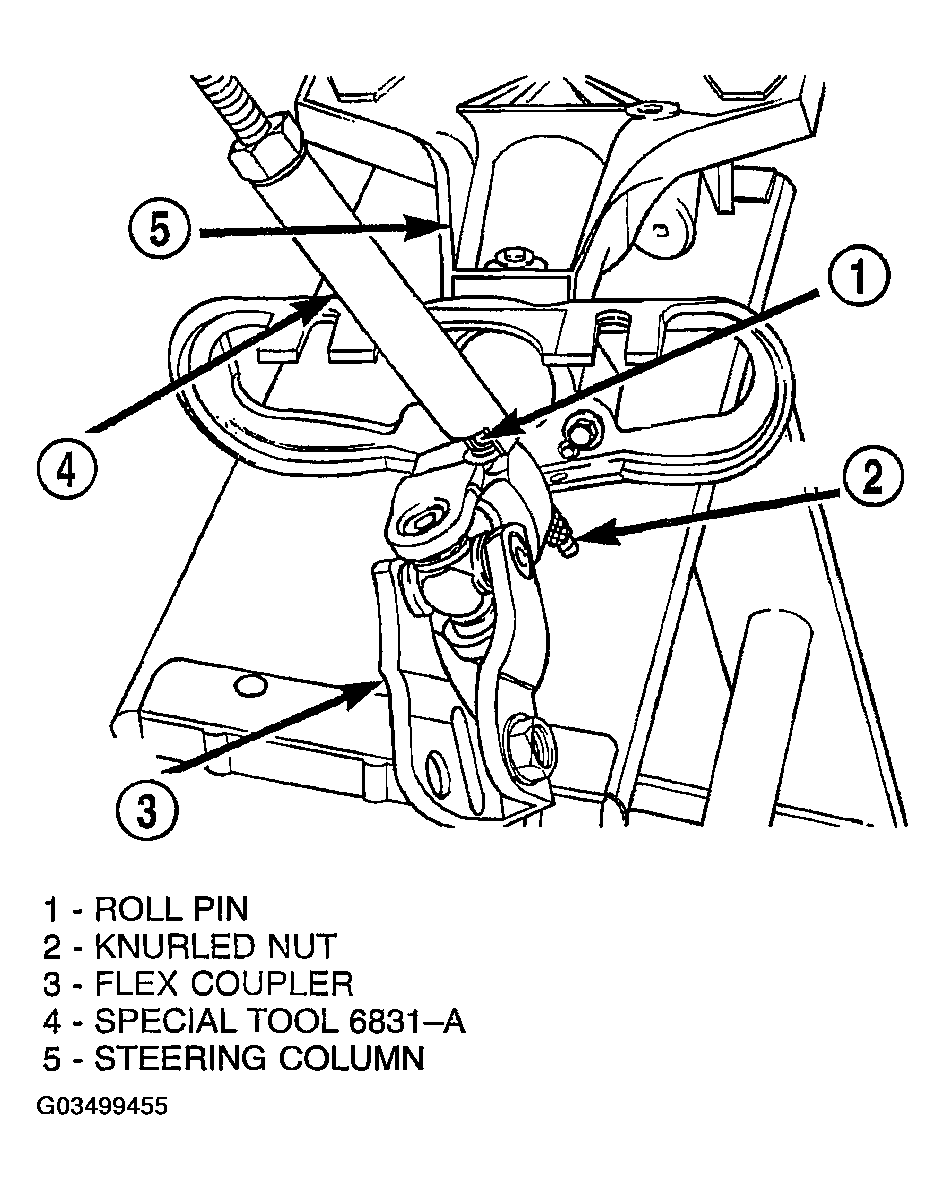

    Fig 1: Removing Roll Pin
    G03499455Courtesy of DAIMLERCHRYSLER CORP.
  3. While holding hex on end threaded rod, tighten the nut on threaded rod of Puller, Special Tool 6831-A. This will pull the roll pin out of the coupler.
  4. Remove the coupler from the steering column shaft
