Lock Cylinder Housing: Installation

  1. Position new lock cylinder housing on steering column (Fig 1 ).
    NOTE: In order to correctly seat the lock cylinder housing to the steering column, the right side mounting screw (from drivers' in-vehicle position) must be seated and tightened first as outlined in the following steps.
  2. Install and tighten new right side mounting screw to 10 N.m (89 in.lbs.) torque.
  3. Install and tighten new left side mounting screw to 10 N.m (89 in.lbs.) torque.

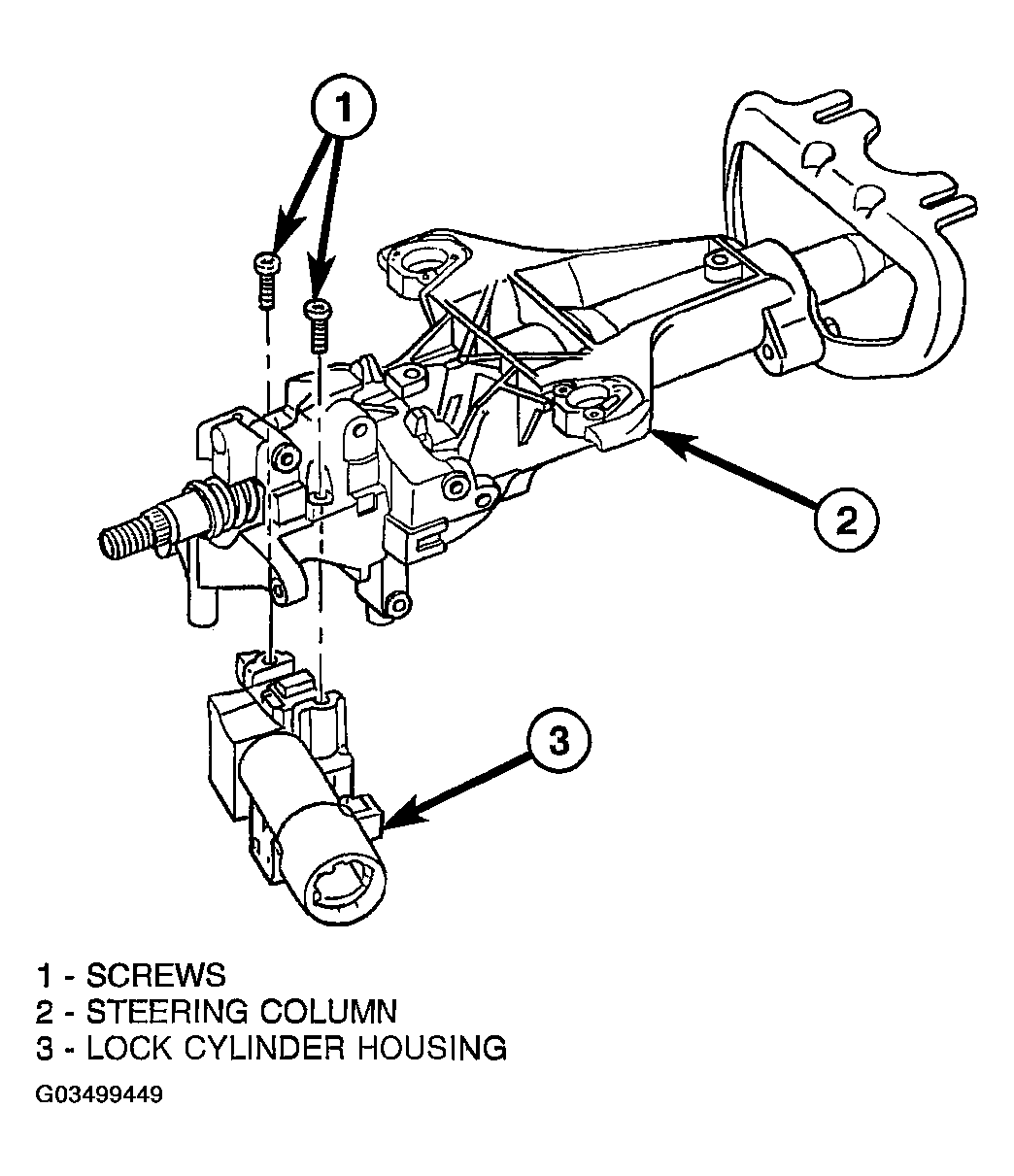

    Fig 1: Lock Cylinder Housing Mounting
    G03499449Courtesy of DAIMLERCHRYSLER CORP.
  4. Install ignition switch.
  5. Install multi-function switch. (Refer to MULTI-FUNCTION SWITCH )
  6. Attach wiring harness in place on left side of column using nut.
  7. Install a new shift interlock cassette. If the vehicle has a floor shift, reconnect and adjust the shift cable as necessary.
  8. If equipped with Sentry Key Immobilizer System, install SKIM. (Refer to SENTRY KEY IMMOBILIZE MODULE )
  9. Install upper and lower steering column shrouds, and tilt lever.
  10. Connect remote battery ground cable to stud at right strut tower.
  11. Check operation of key cylinder, lock housing and ignition switch.
