Standard Procedure - Power Steering Fluid Level Checking

WARNING: FLUID LEVEL SHOULD BE CHECKED WITH ENGINE OFF TO PREVENT INJURY FROM MOVING PARTS.

Wipe off the power steering fluid reservoir so that it is free of dirt (Fig 1 ) (Fig 2 ). Check the fill level of the fluid in the reservoir according to the markings on the side of the reservoir. Measure the MAX. COLD/MIN. COLD fluid levels when the fluid is at normal ambient temperature, approximately 32°C to 43°C (90°F to 110°F). Add fluid as necessary and do not overfill.Use only Mopar(R) ATF+4 Automatic Transmission Fluid in this power steering system.

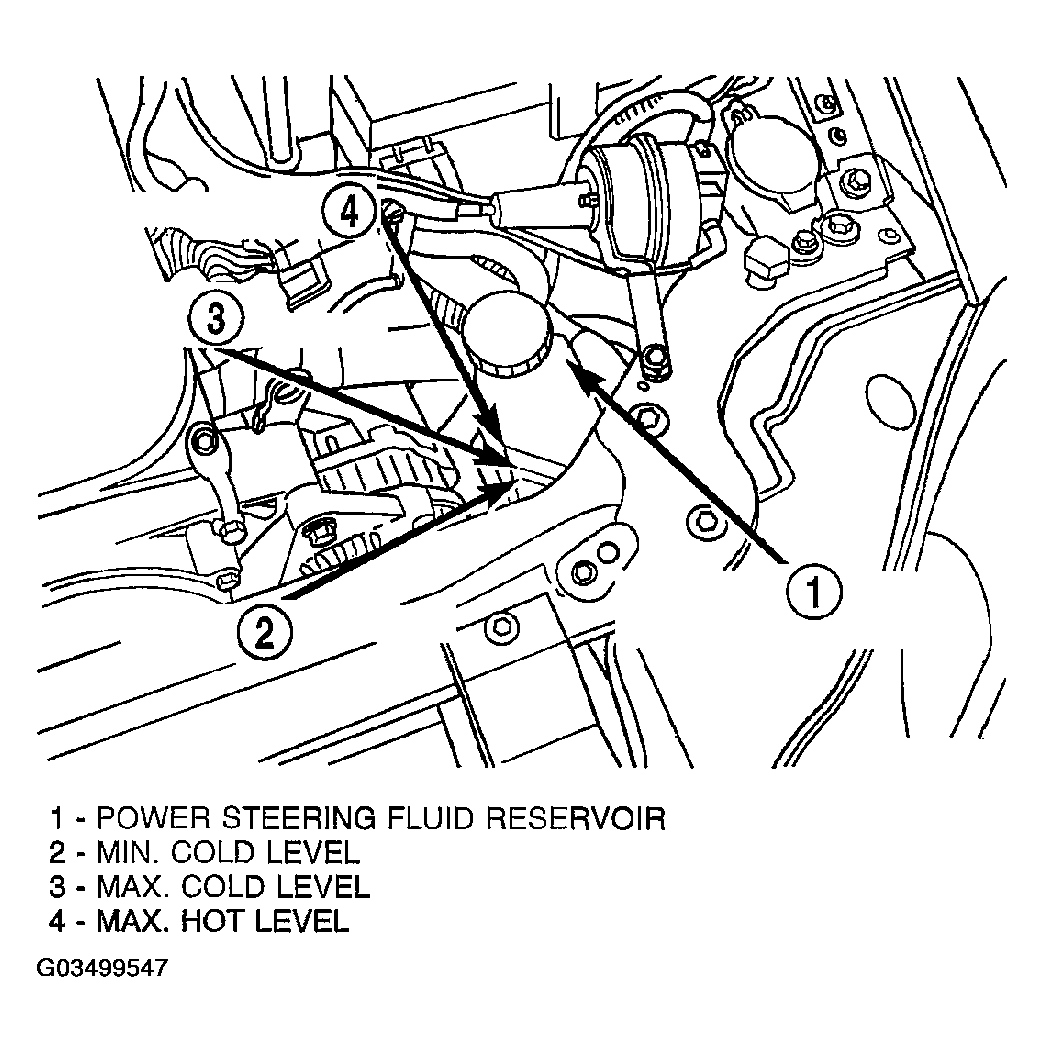

Fig 1: Fluid Reservoir (2.7L ENGINE)

Courtesy of DAIMLERCHRYSLER CORP.

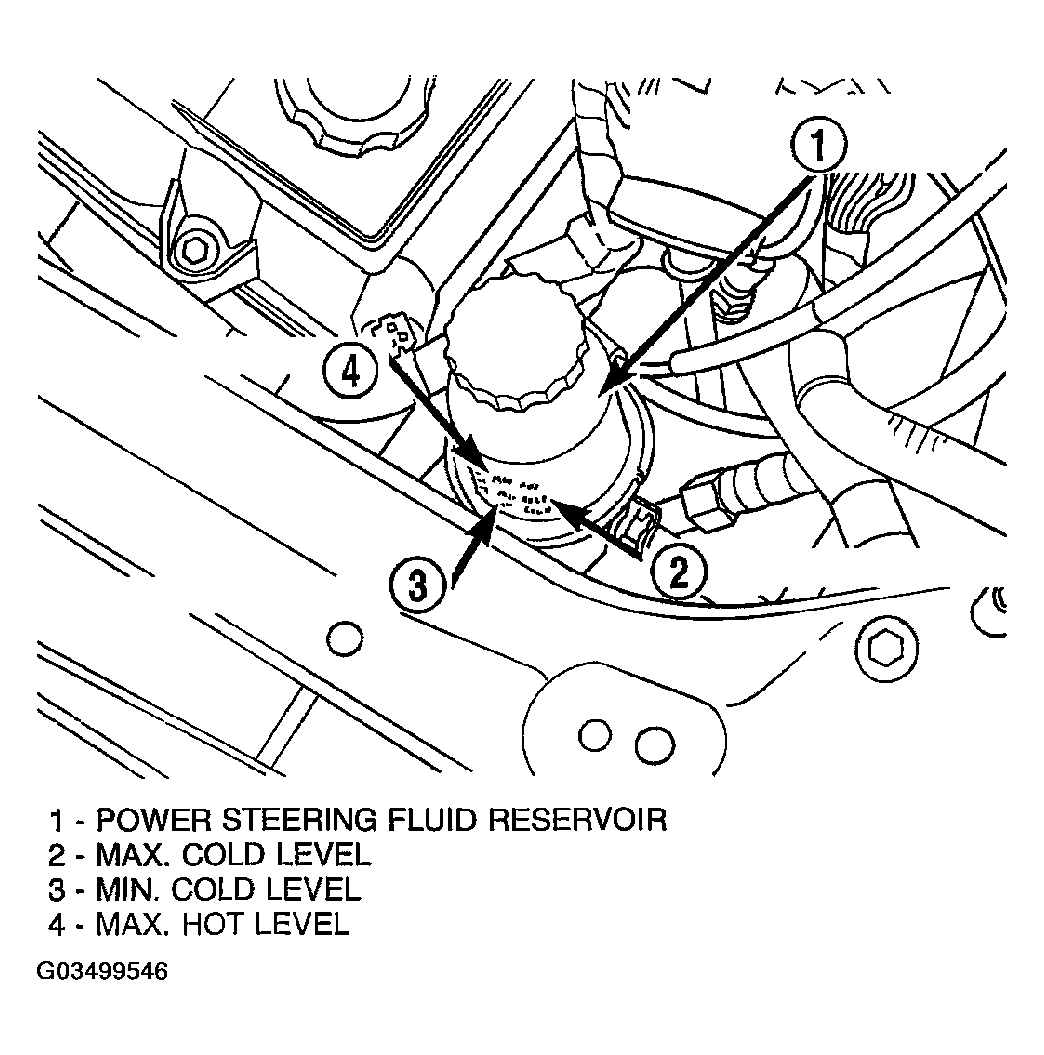

Fig 2: Fluid Reservoir (3.5L Engine)

Courtesy of DAIMLERCHRYSLER CORP.
