Fluid Cooler: Installation

  1. Install the power steering fluid cooler on the radiator lower crossmember.

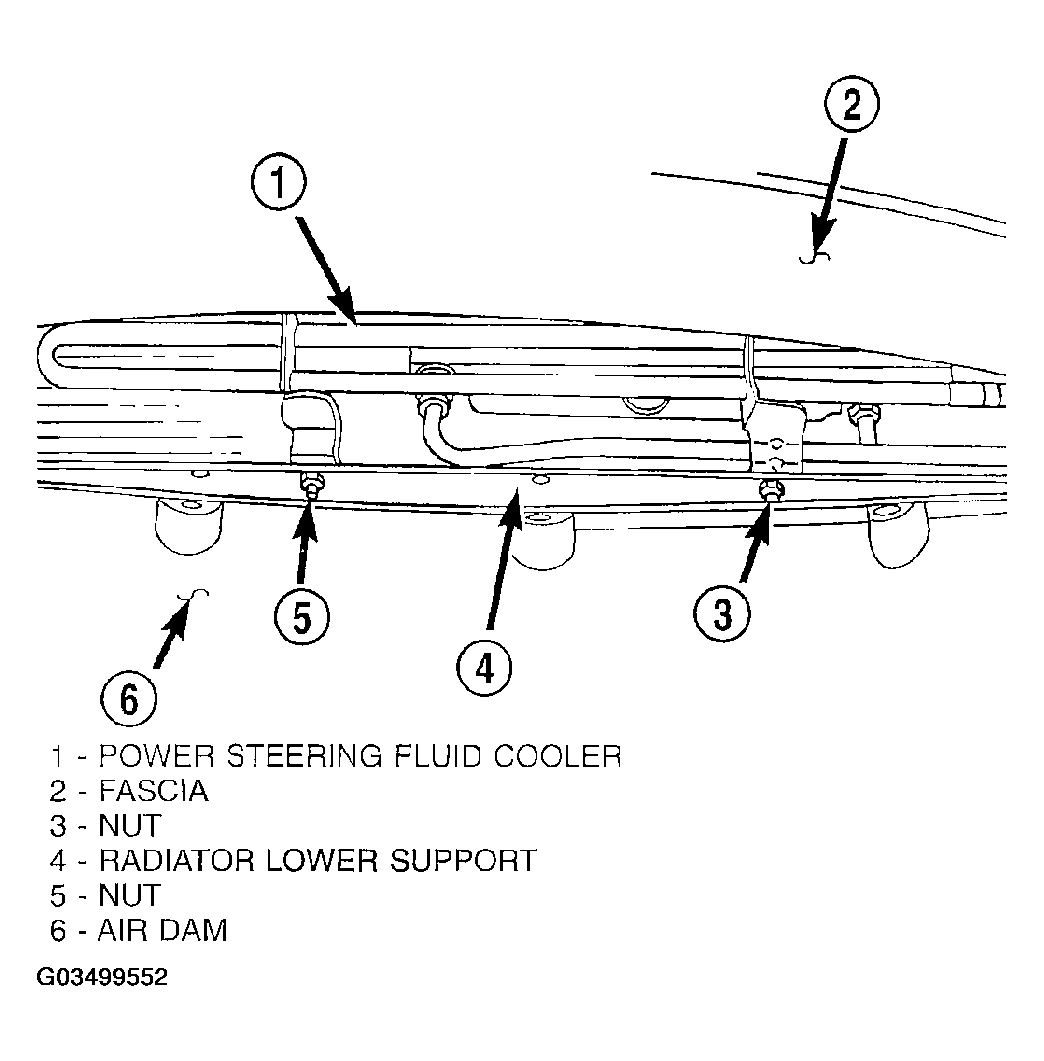

  2. Install the 2 nuts (Figure ) attaching the power steering fluid cooler to the radiator lower crossmember. Tighten the attaching nuts to a torque of 10 N.m (89 in.lbs.)
  3. Install the air dam on the radiator lower support. Attach the air dam to the radiator lower support using new  retaining clips.
  4. Install power steering fluid hoses (Figure ) and (Figure ) on the power steering fluid cooler. Be sure hose clamps are installed on hose past the upset bead on the power steering cooler.
  5. 300M only - Reinstall front fascia.
  6. Lower the vehicle to a point where front tires are just off the ground.
  7. Perform Power Steering Pump Initial Operation procedure (Refer to STANDARD PROCEDURE  ).
