Power Amplifier C1 Connector End View

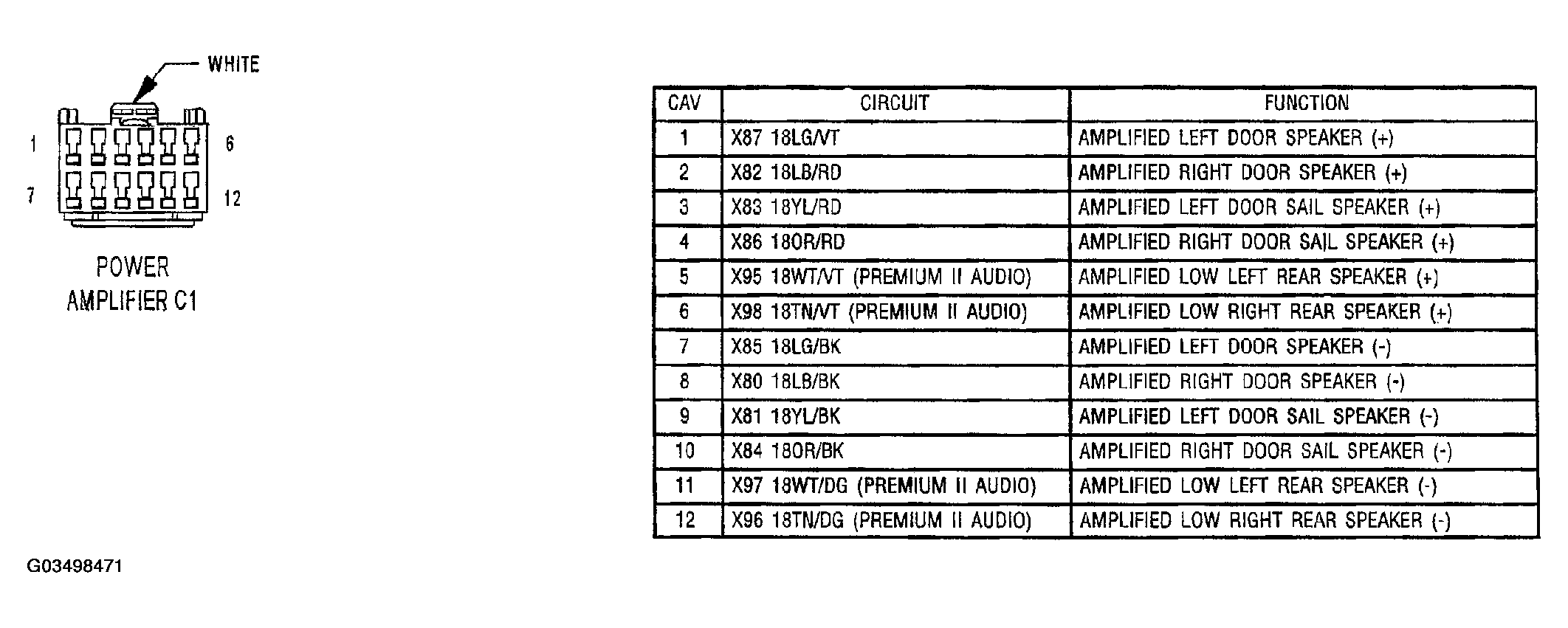

Fig 1: Power Amplifier Connector End View (C1)

G03498471

Courtesy of DAIMLERCHRYSLER CORP.
