Oxygen Sensor 2/2 Left Bank Down Connector End View

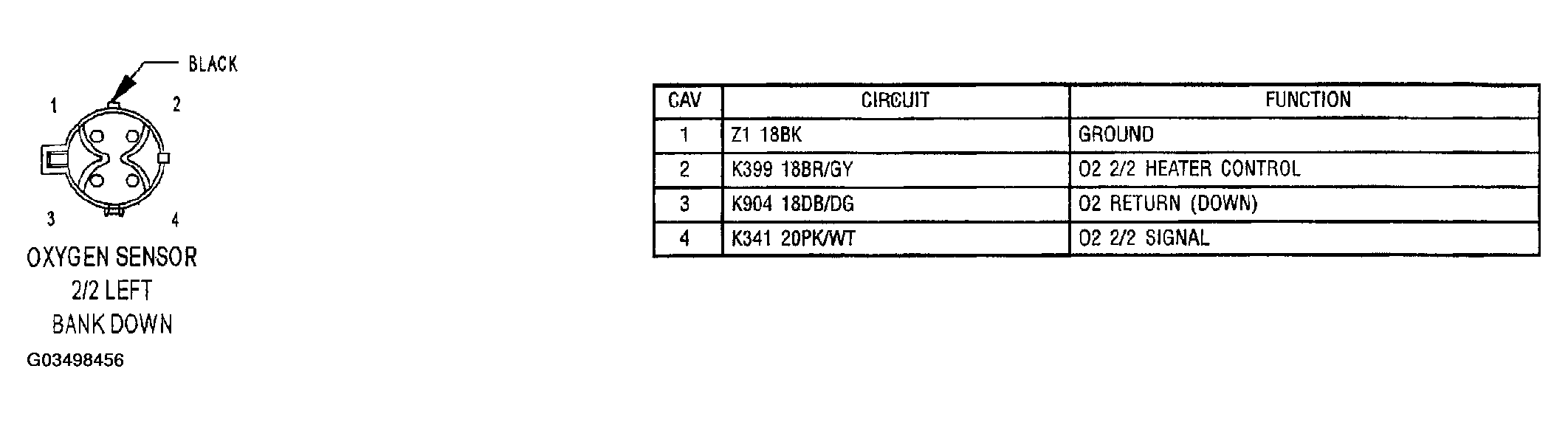

Fig 1: Left Bank Down Oxygen Sensor 2/2 Connector End View

G03498456

Courtesy of DAIMLERCHRYSLER CORP.
