Junction Block C8 Connector End View

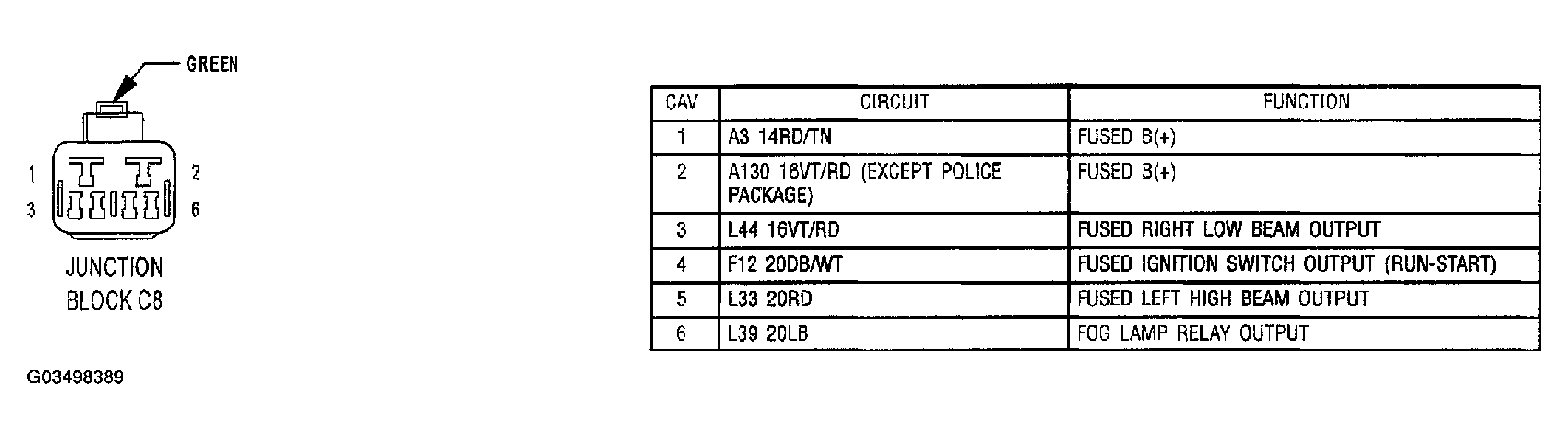

Fig 1: Junction Block Connector End View (C8)

G03498389

Courtesy of DAIMLERCHRYSLER CORP.
