Manifold Tuning Valve Connector End View (3.5L High Output)

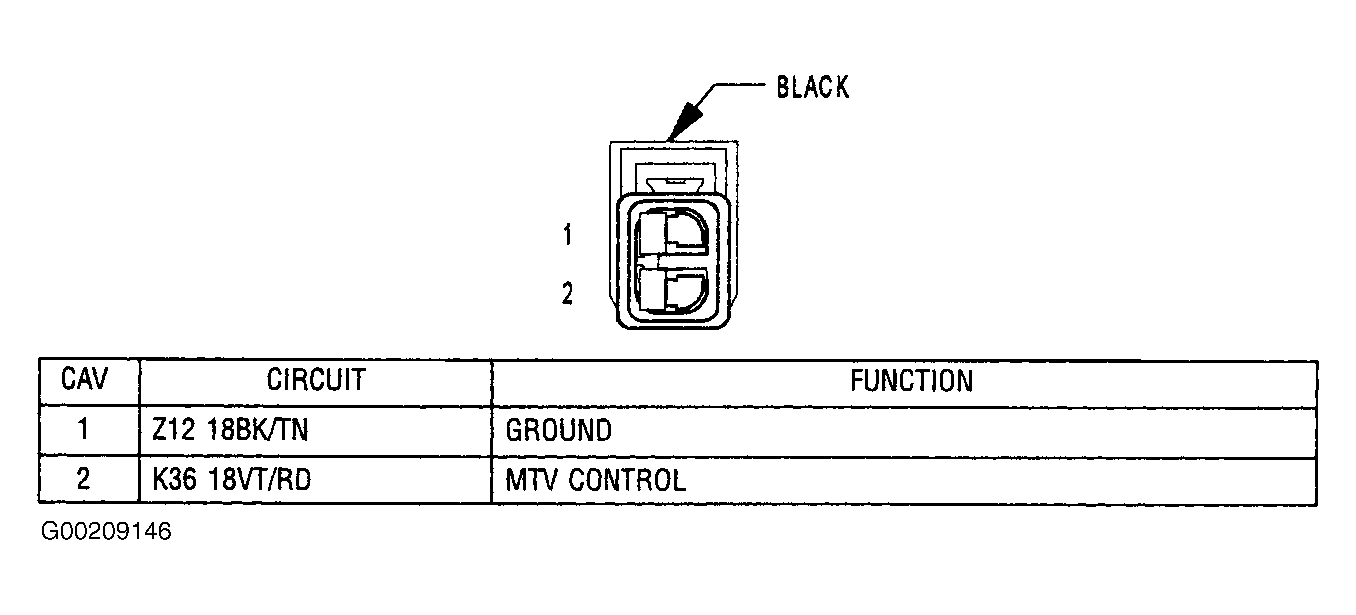

Fig 1: Identifying Manifold Tuning Valve (3.5L High Output)
G00209146Courtesy of CHRYSLER CORP.
