Junction Block C1 Connector End View

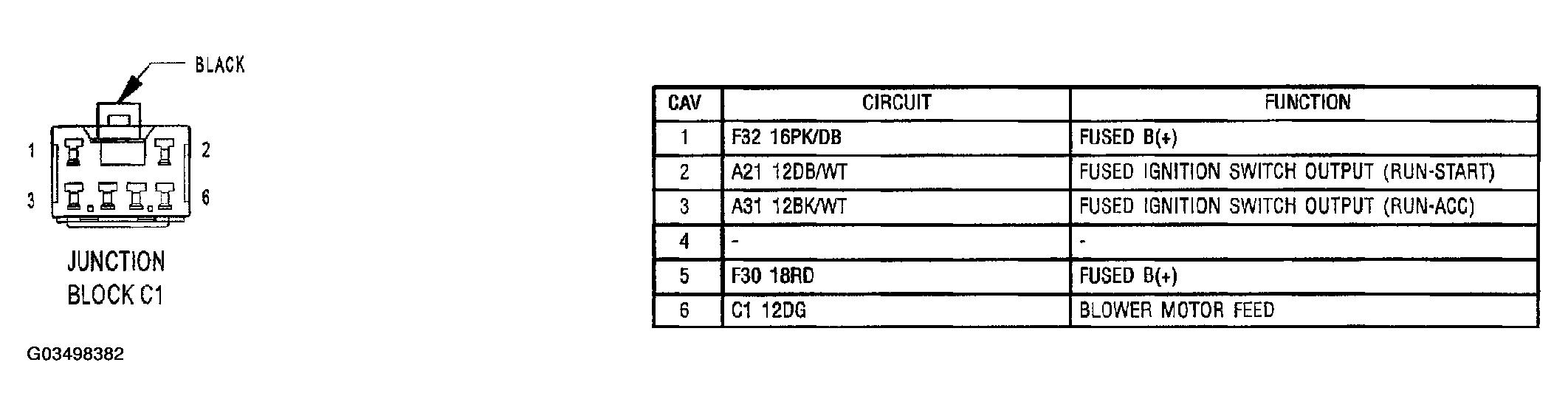

Fig 1: Junction Block Connector End View (C1)

G03498382

Courtesy of DAIMLERCHRYSLER CORP.
