Compact Disc Changer Connector End View

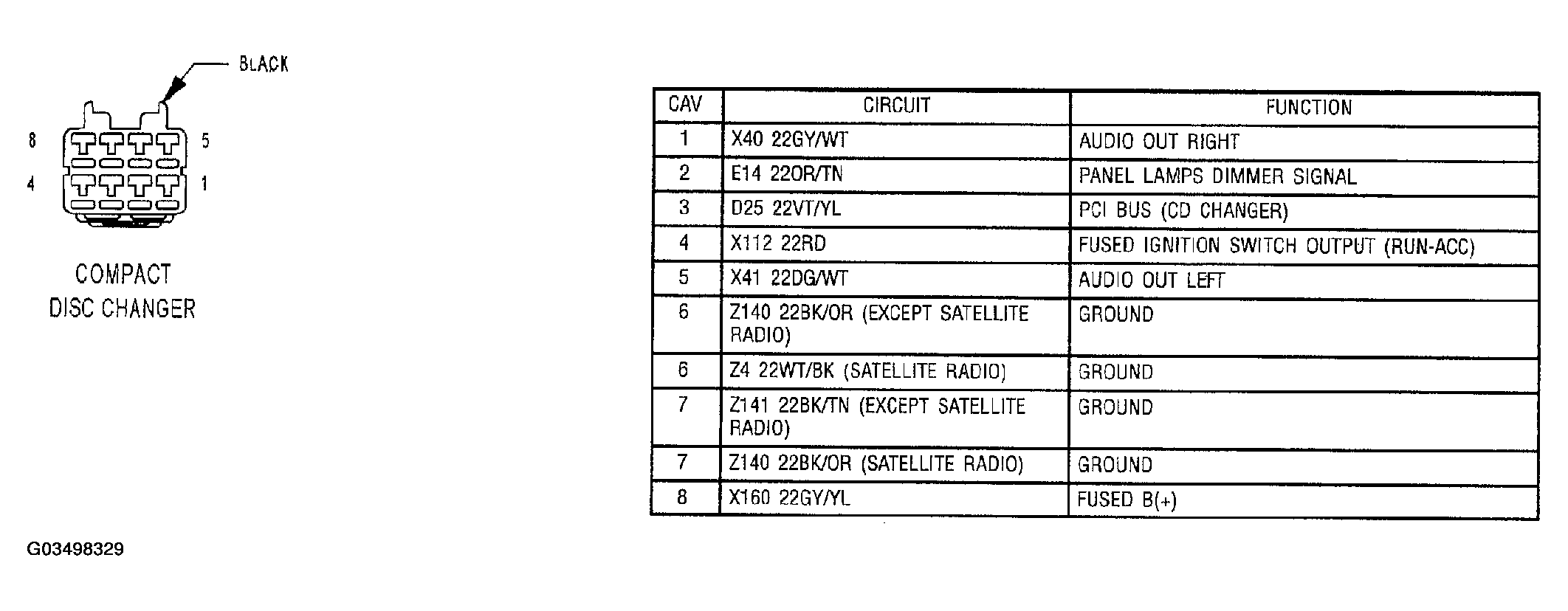

Fig 1: Compact Disc Changer Connector End View

G03498329

Courtesy of DAIMLERCHRYSLER CORP.
