Blower Motor Resistor Block Connector End View

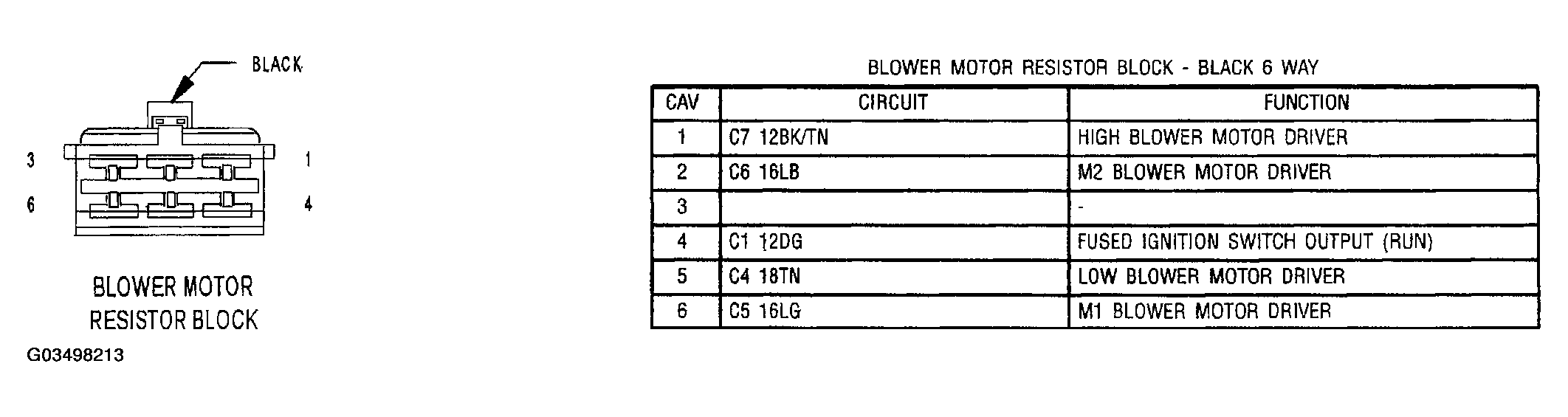

Fig 1: Blower Motor Resistor Block Connector End View

G03498213

Courtesy of DAIMLERCHRYSLER CORP.
