A/C Pressure Transducer Connector End View

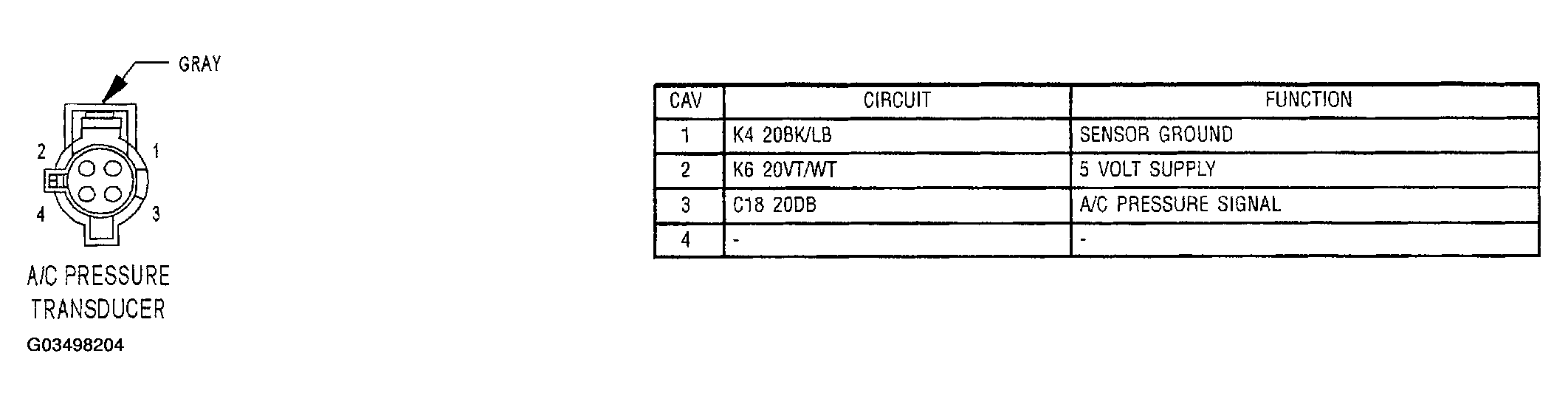

Fig 1: A/C Pressure Transducer Connector End View

G03498204

Courtesy of DAIMLERCHRYSLER CORP.
