Horn Relay: Removal

  1. Disconnect and isolate the battery negative cable.
  2. Open the driver's door and remove the left instrument panel end cover.
  3. Remove the horn relay (Fig 1 ).

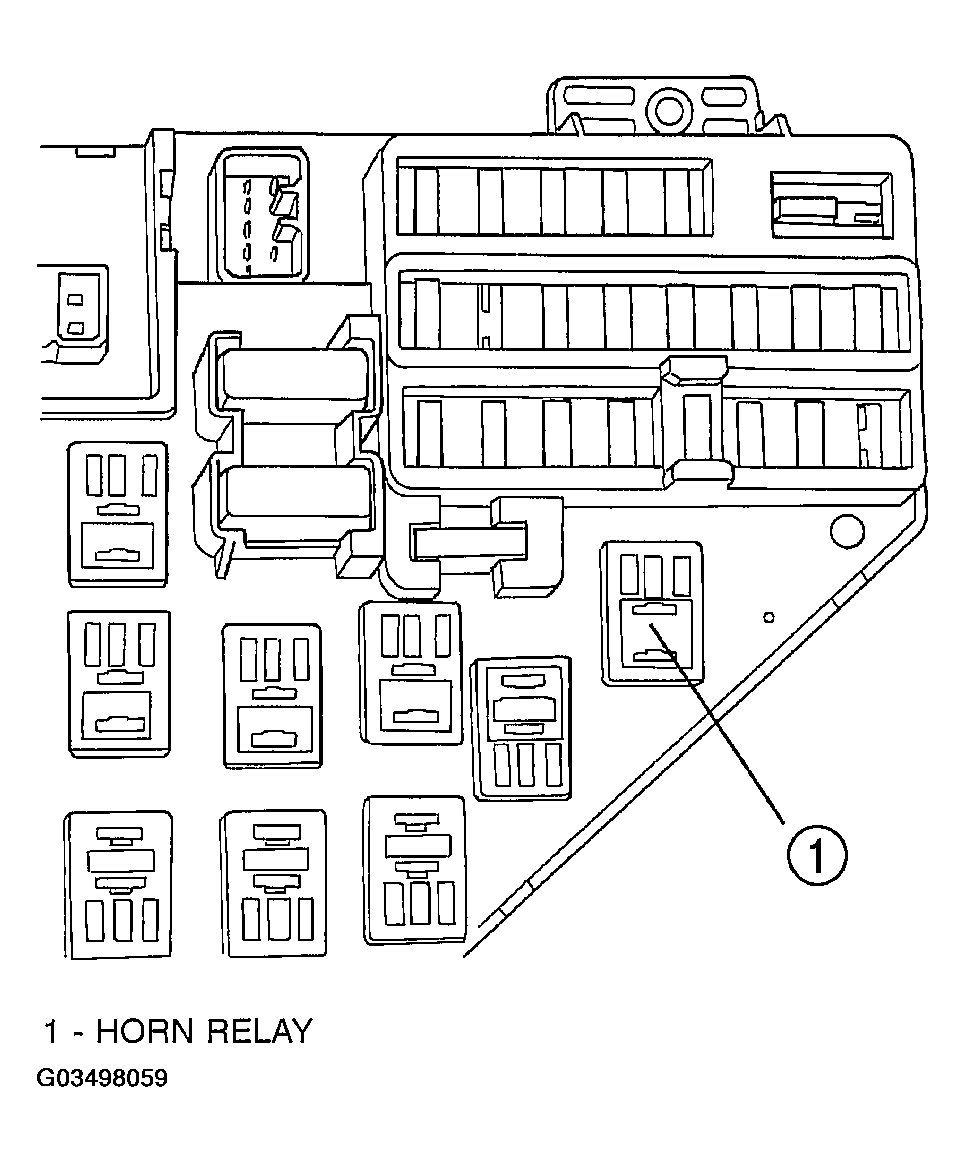

    Fig 1: Horn Relay Location
    G03498059Courtesy of DAIMLERCHRYSLER CORP.
