Throttle Position Sensor (2.7L) Connector End View

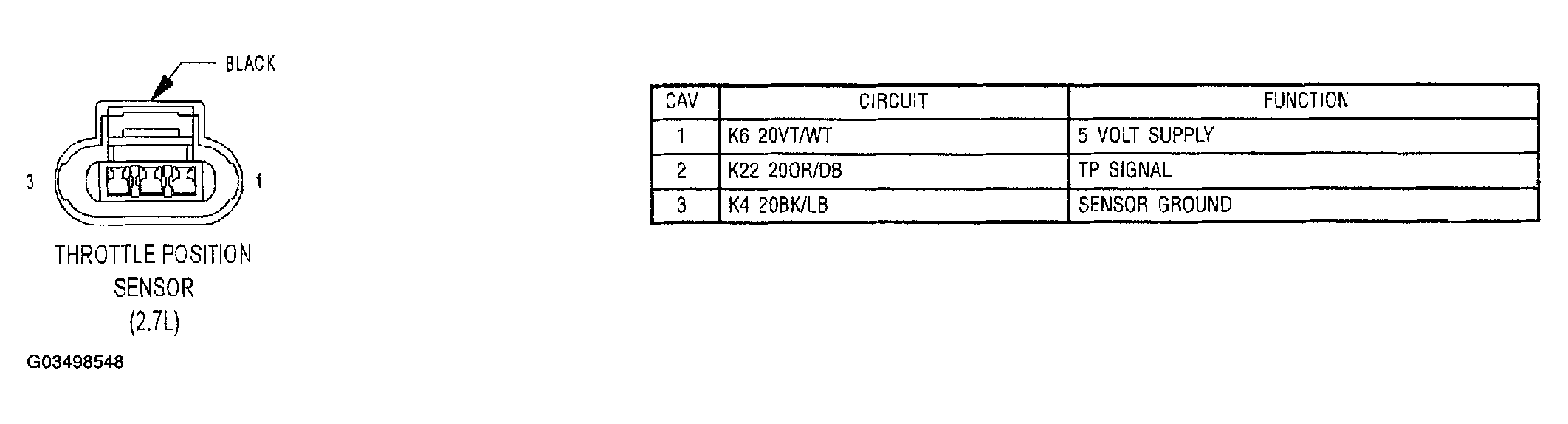

Fig 1: Throttle Position Sensor (2.7L) Connector End View

G03498548

Courtesy of DAIMLERCHRYSLER CORP.
