Satellite Radio Multiplexer C2 Connector End View

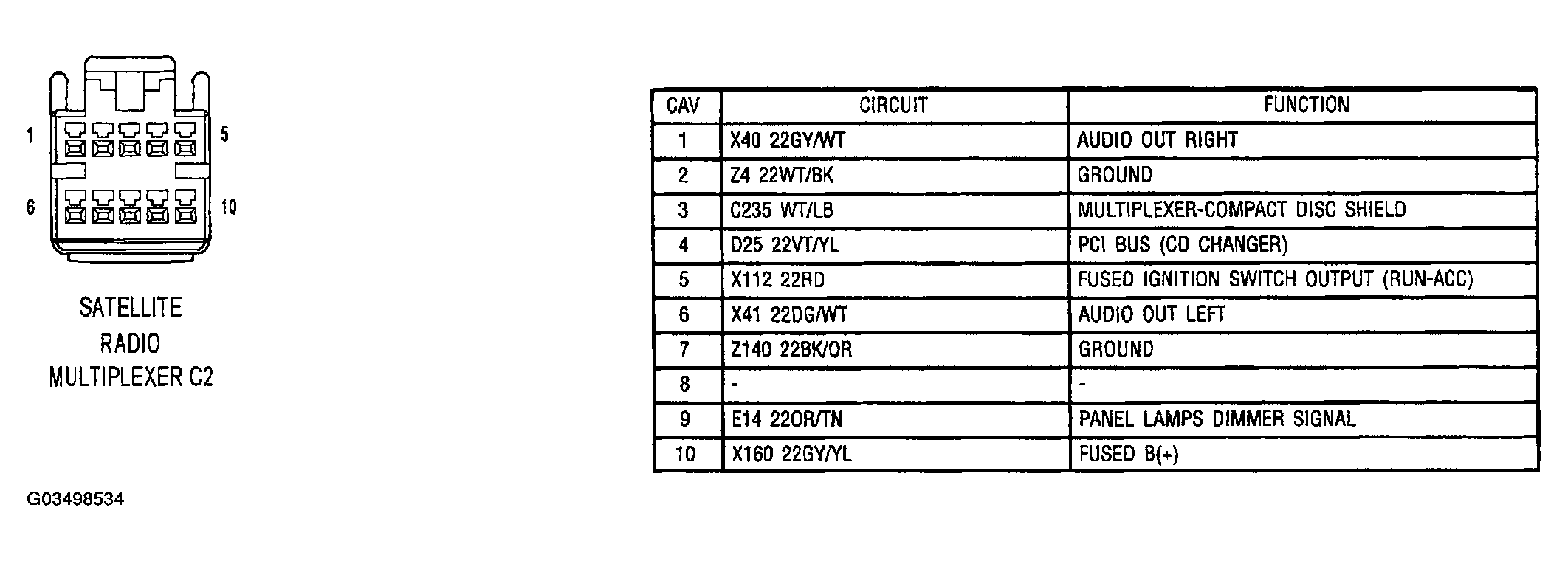

Fig 1: Satellite Radio Multiplexer Connector End View (C2)

G03498534

Courtesy of DAIMLERCHRYSLER CORP.
