Manual Temperature Control Head C1 Connector End View

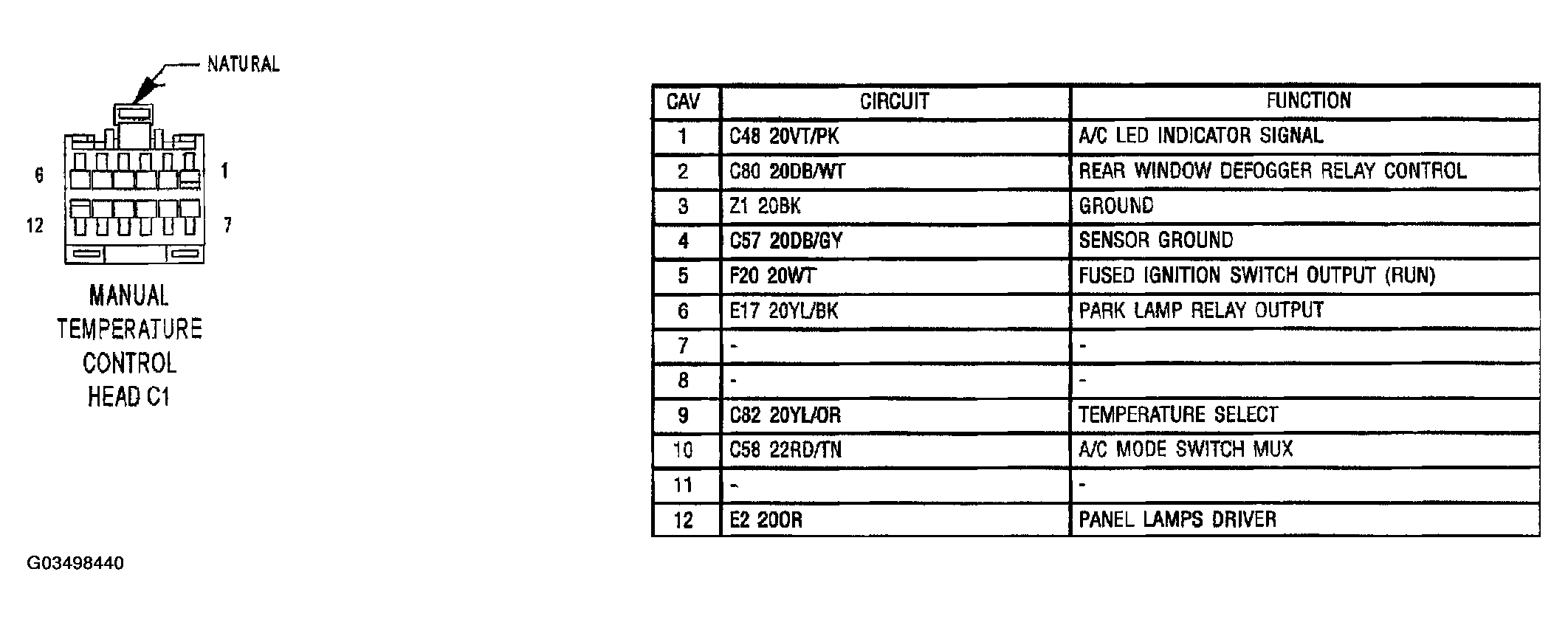

Fig 1: Manual Temperature Control Head Connector End View (C1)

G03498440

Courtesy of DAIMLERCHRYSLER CORP.
