Junction Block C9 Connector End View

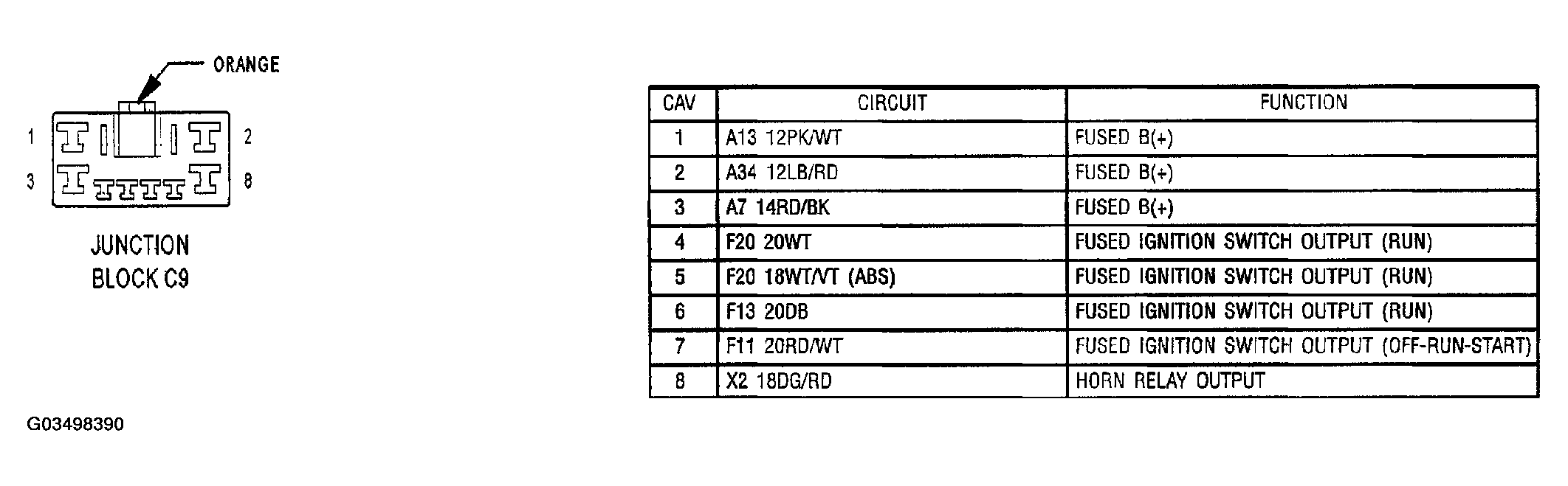

Fig 1: Junction Block Connector End View (C9)

G03498390

Courtesy of DAIMLERCHRYSLER CORP.
