Junction Block C4 Connector End View

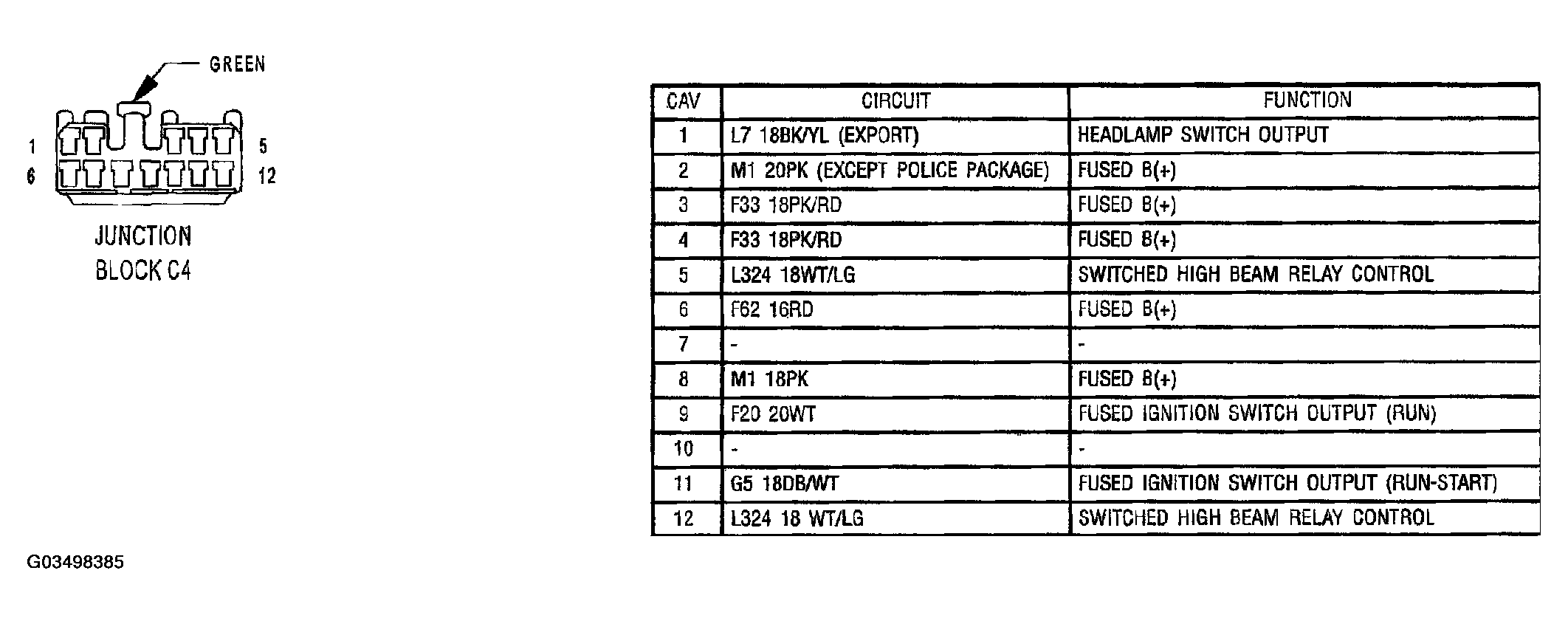

Fig 1: Junction Block Connector End View (C4)

G03498385

Courtesy of DAIMLERCHRYSLER CORP.
