Front Wiper Motor Connector End View

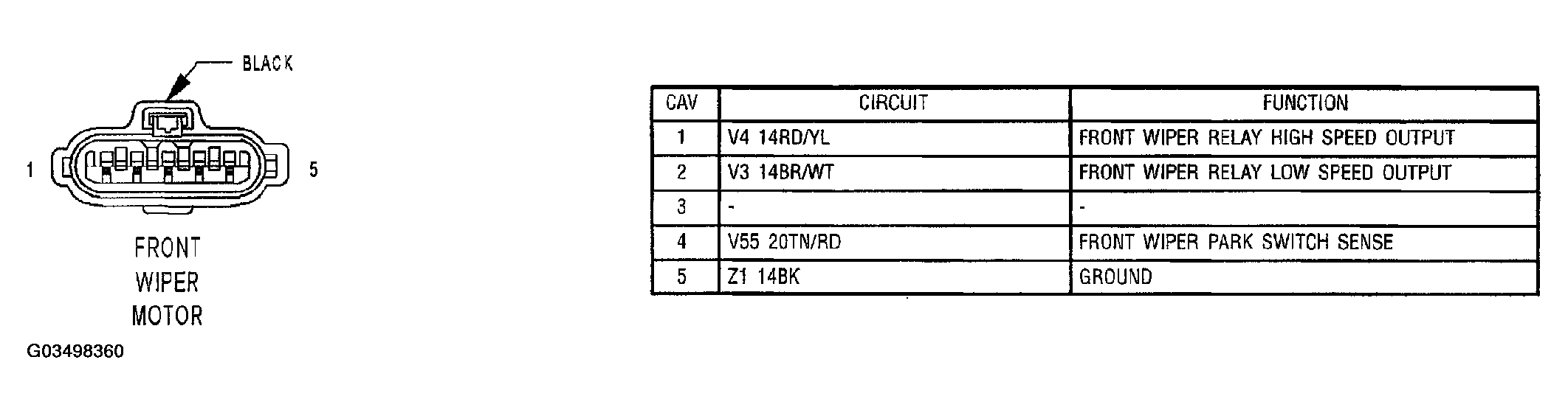

Fig 1: Front Wiper Motor Connector End View

G03498360

Courtesy of DAIMLERCHRYSLER CORP.
