Driver Power Seat Switch Connector End View

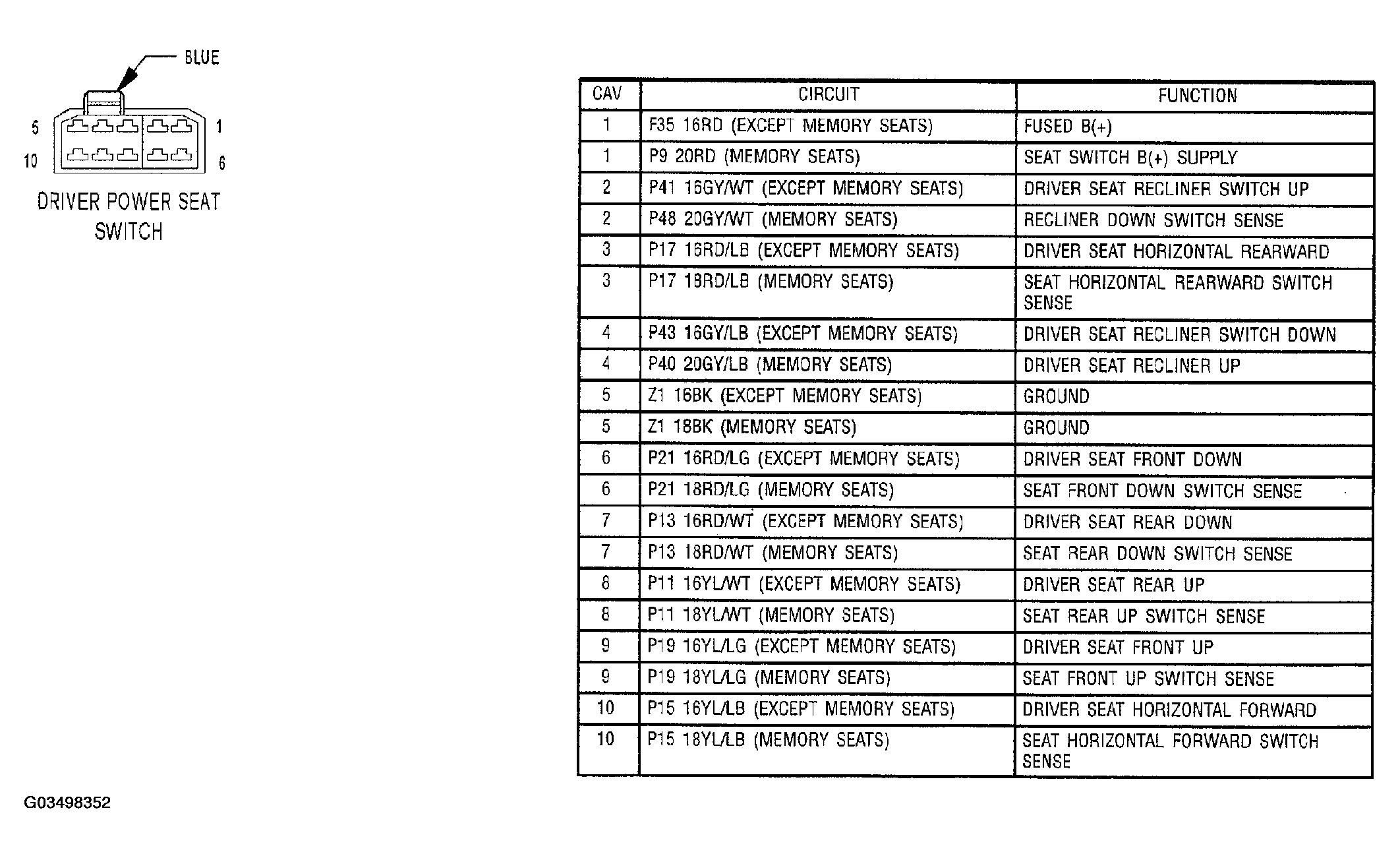

Fig 1: Driver Power Seat Switch Connector End View

G03498352

Courtesy of DAIMLERCHRYSLER CORP.
