Driver Power Seat Horizontal Motor Connector End View

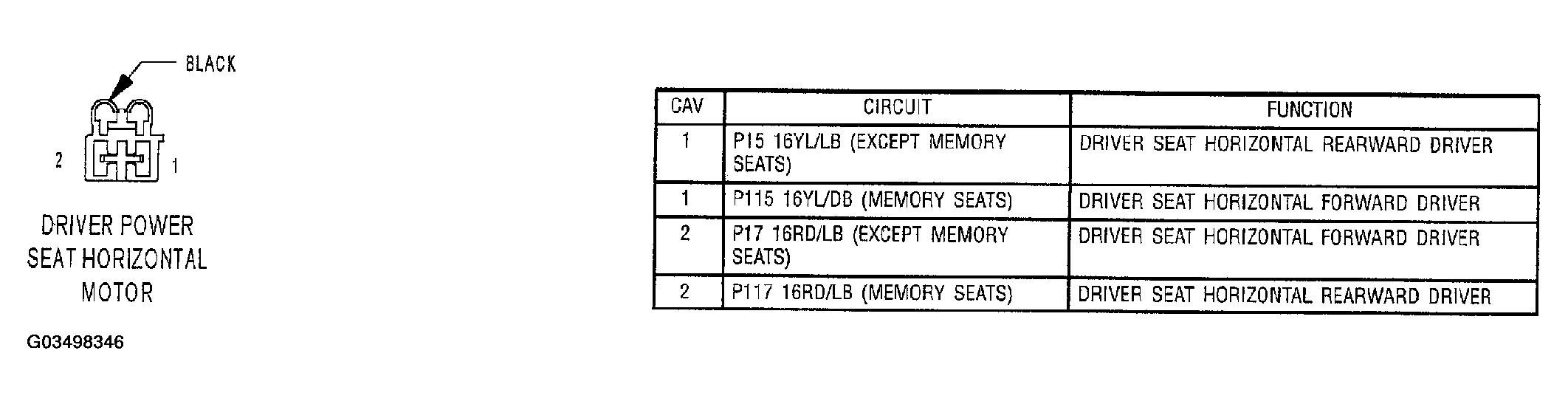

Fig 1: Driver Power Seat Horizontal Motor Connector End View

G03498346

Courtesy of DAIMLERCHRYSLER CORP.
