Chassis Diagnostic Procedures - Anti-Lock Brake System
>>
Component Locations
>>
Fuses
Component Locations: Fuses

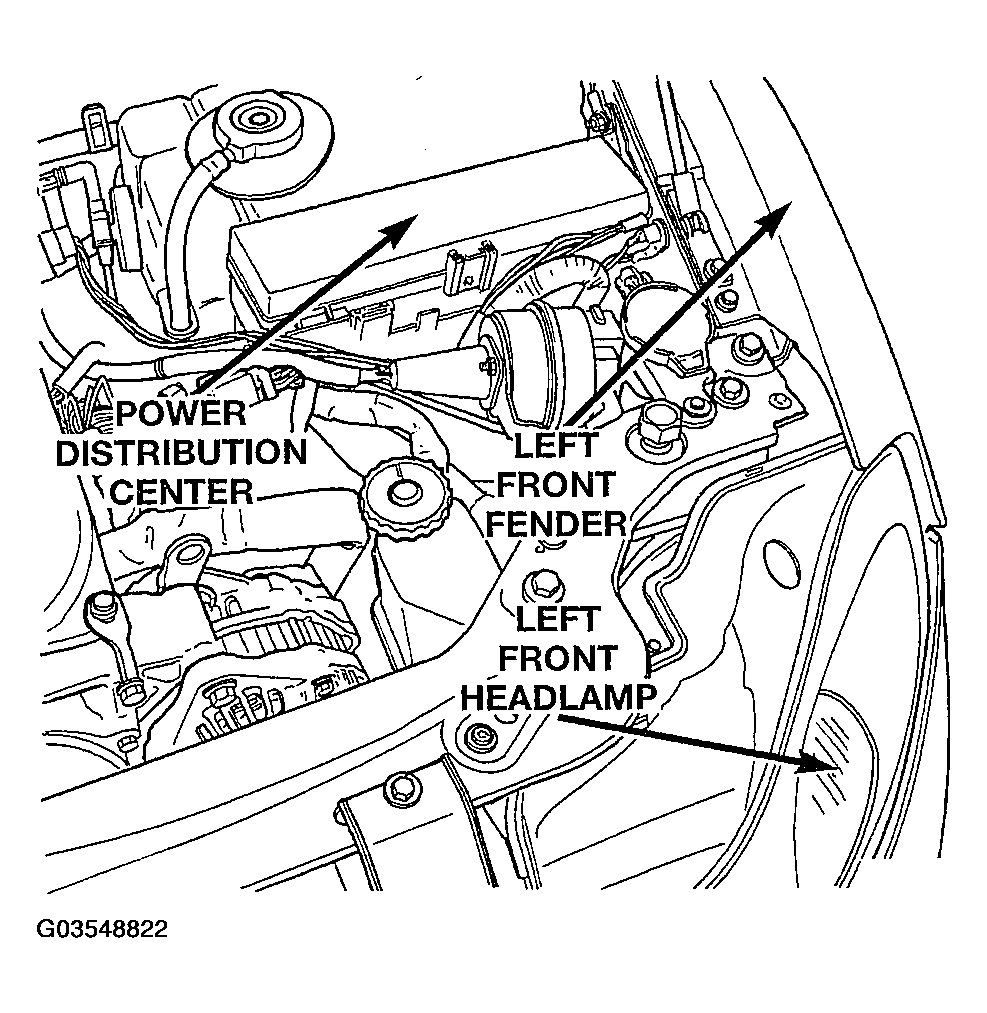

Fig 1: Identifying Power Distribution Center Fuse Locations
Courtesy of DAIMLERCHRYSLER CORP.
Fig 2: Identifying Junction Block Fuse Locations
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
