Seat System: Headrest: Removal: Removal

  1. Lower head restraint slightly.
  2. Insert a stiff wire into the hole on the right hand side head restraint sleeve/guide and push to release latch (Fig 1 ).

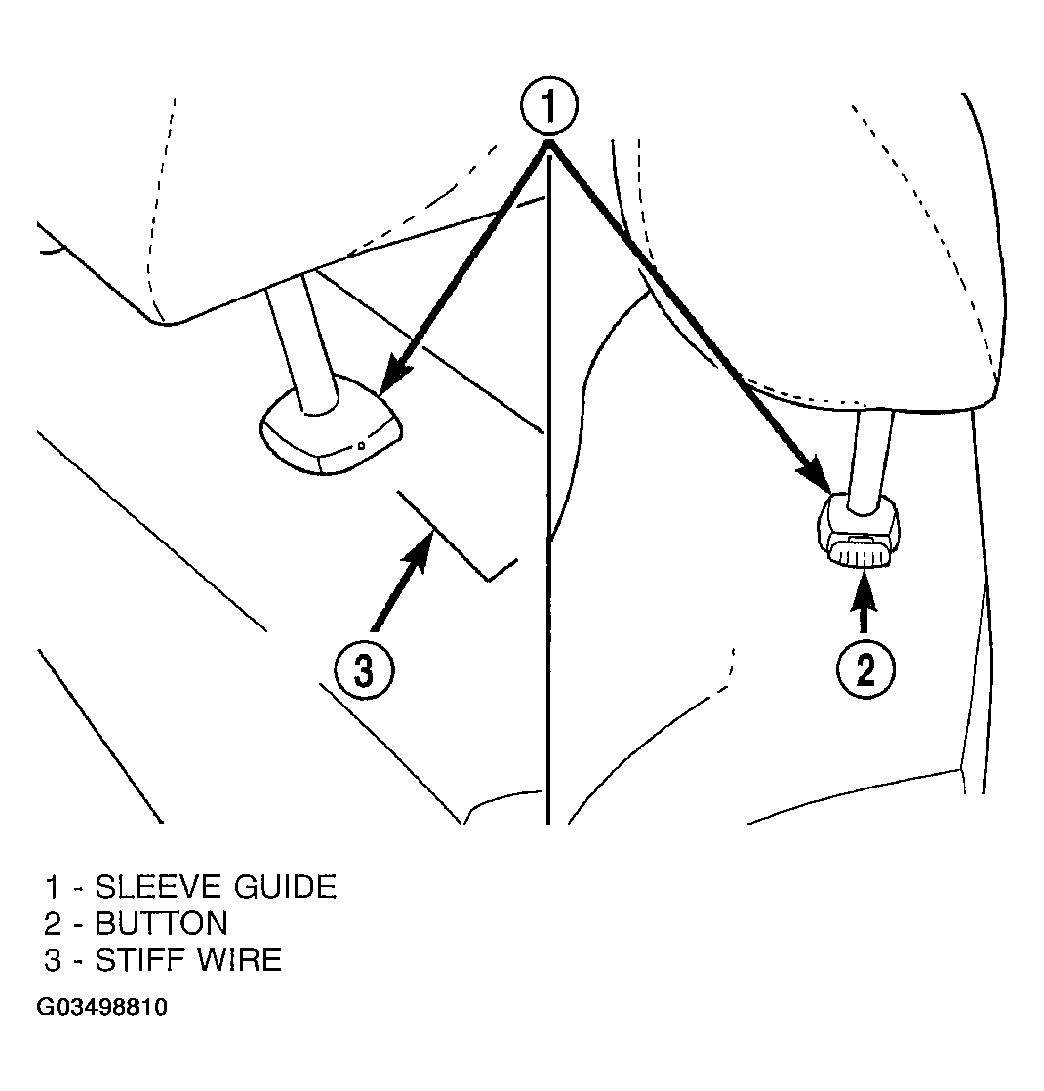

    Fig 1: Head Restraint Removal
    G03498810Courtesy of DAIMLERCHRYSLER CORP.
  3. At the same time, press the button on the head restraint sleeve/guide left hand side and pull upward to release the head restraint.
  4. Remove head restraint from seat back.
