Front Seat Cushion: Installation

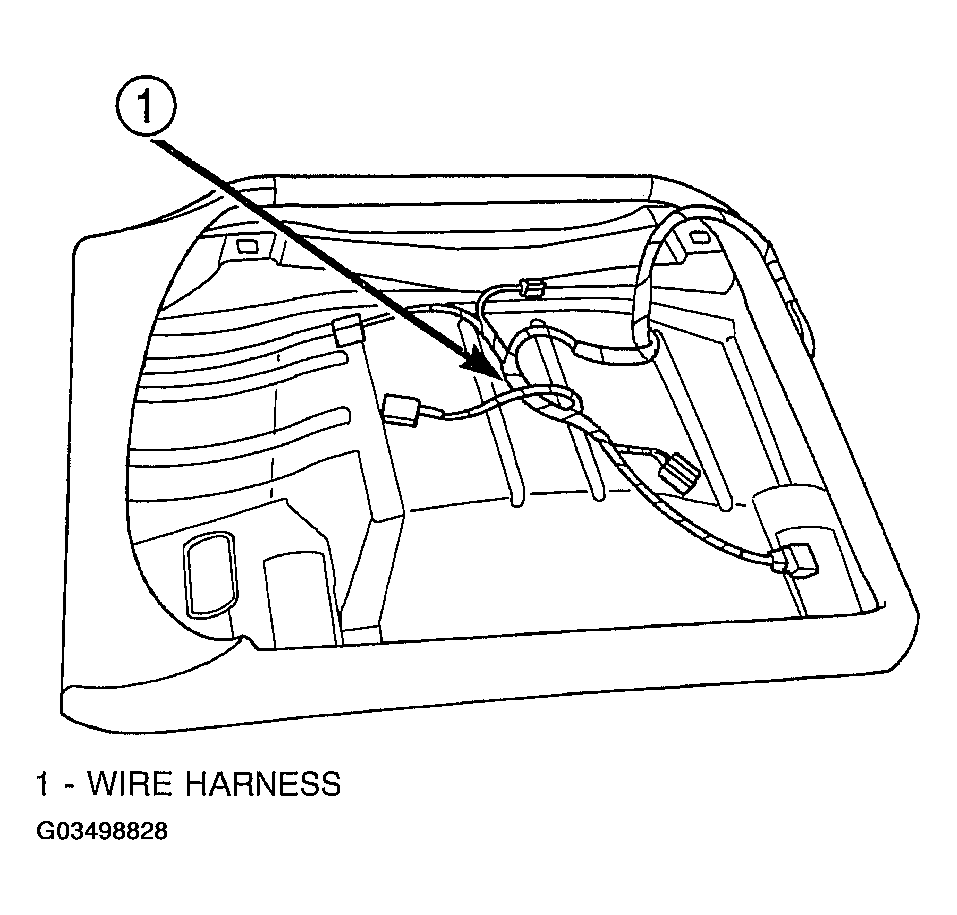

  1. Install wire harness fasteners to cushion frame (Figure ).
  2. Connect seat cushion heater element connector, if equipped.
  3. Install track and recliner assembly (Refer to SEAT TRACK & RECLINER ASSEMBLY  ).
  4. Install front seat back (Refer to FRONT SEAT BACK  ).
