Home >> Chrysler >> 2004 >> Intrepid SXT >> Repair and Diagnosis >> Body & Frame >> Seats >> Seat Heating System >> Driver Heated Seat Switch >> Removal

Driver Heated Seat Switch: Removal

  1. Disconnect and isolate the negative battery cable remote terminal from the remote battery post.
  2. Remove the appropriate seat cushion side shield (Fig 1 ). Refer to SEATS for the procedure.

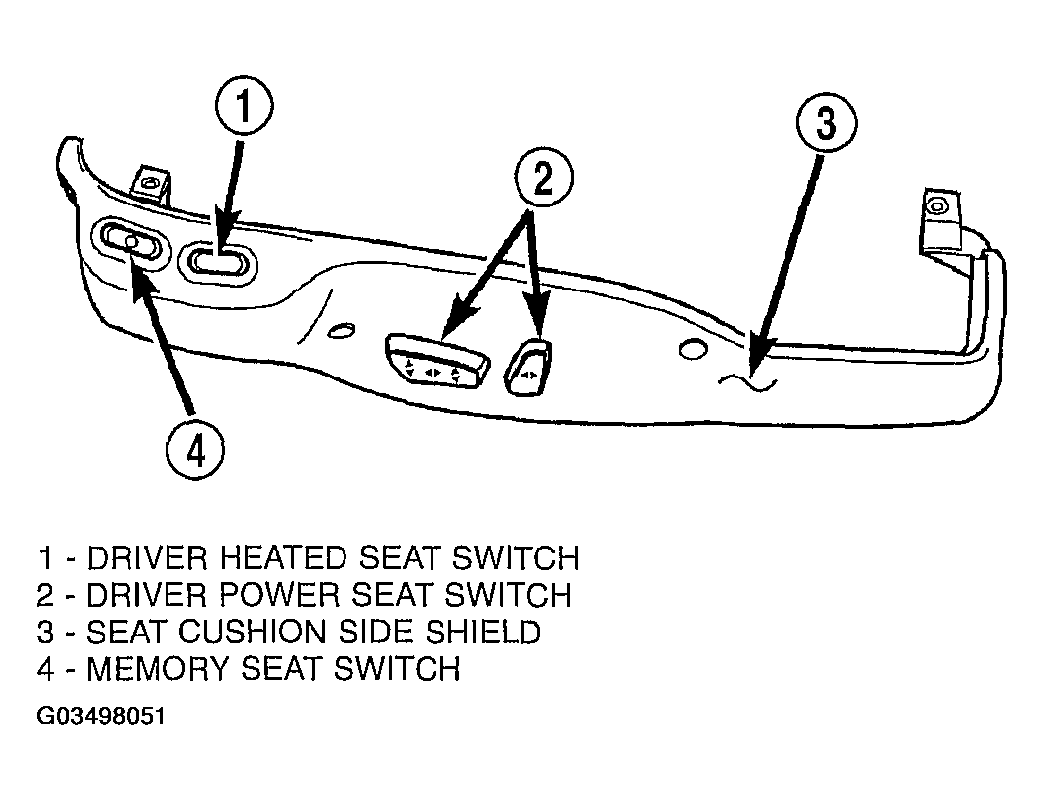

    Fig 1: Heated, Memory and Power Seat Switch Locations
    G03498051Courtesy of DAIMLERCHRYSLER CORP.
  3. Working from the underside of the switch, gently rock the switch back and forth out of its mounting location.
  4. Disconnect the heated seat switch electrical connector and remove the switch.
