Power Seat Track: Removal

WARNING: SOME VEHICLES ARE EQUIPPED WITH SEATBACK MOUNTED AIRBAGS. BEFORE ATTEMPTING TO DIAGNOSE OR SERVICE ANY SEAT OR POWER SEAT SYSTEM COMPONENT YOU MUST FIRST DISCONNECT AND ISOLATE THE BATTERY NEGATIVE CABLE. THEN WAIT TWO MINUTES FOR THE SYSTEM CAPACITOR TO DISCHARGE BEFORE FURTHER SYSTEM SERVICE. THIS IS THE ONLY SURE WAY TO DISABLE THE AIRBAG SYSTEM. FAILURE TO DO SO COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.
  1. Remove the appropriate, front seat from the vehicle. Refer to the SEATS for the procedure.
  2. Remove two seat back mounting bolts and also remove two seat back recliner bolts (Fig 1 ).

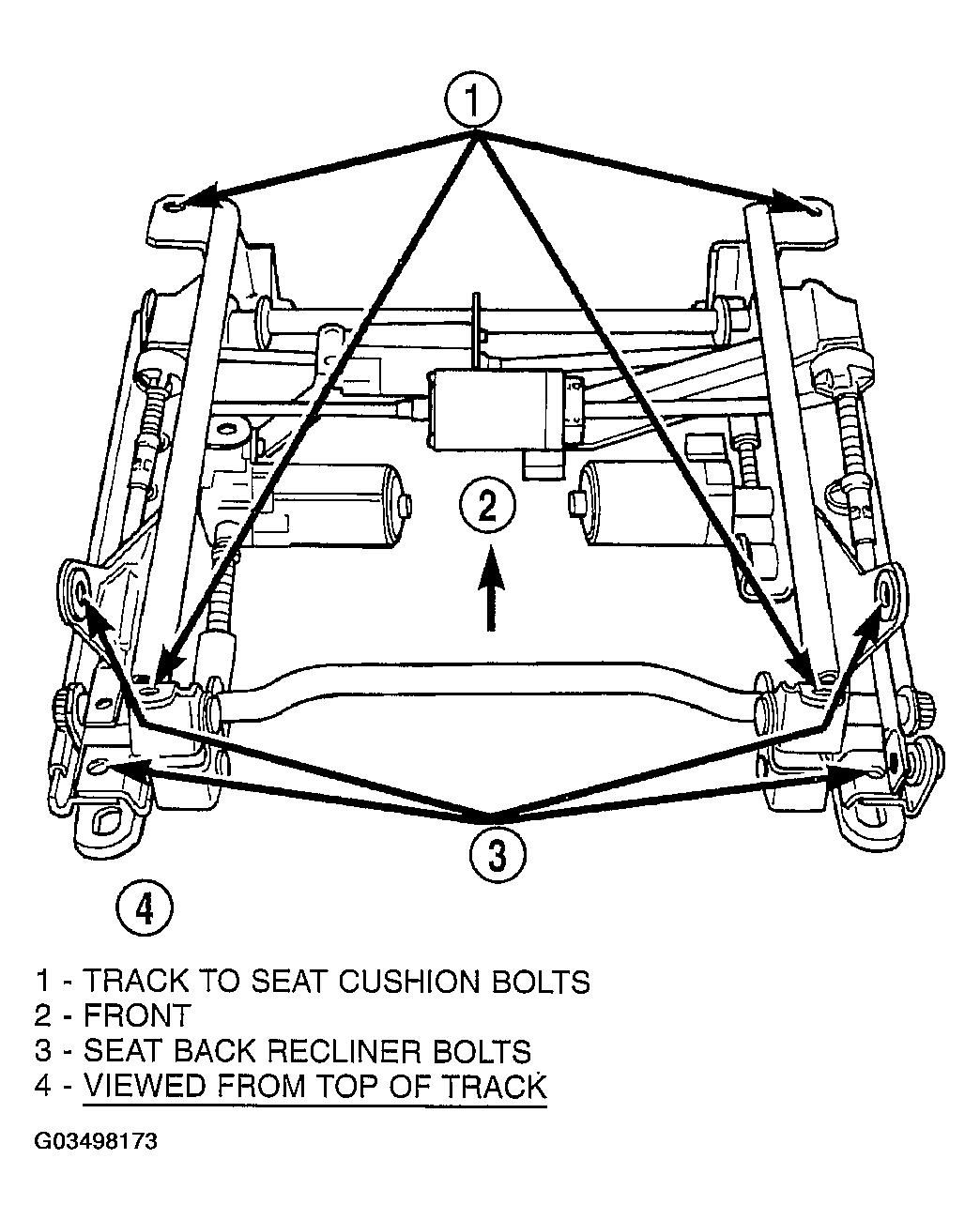

    Fig 1: Seat Track Removal
    G03498173Courtesy of DAIMLERCHRYSLER CORP.
  3. Remove four seat track mounting bolts from cushion pan.
  4. Remove the seat track from seat.
