Driver Power Seat Switch: Removal

  1. Open hood, disconnect and isolate the negative battery cable remote terminal from the remote battery post.
    WARNING: SOME VEHICLES ARE EQUIPPED WITH SEATBACK MOUNTED AIRBAGS. BEFORE ATTEMPTING TO DIAGNOSE OR SERVICE ANY SEAT OR POWER SEAT SYSTEM COMPONENT YOU MUST FIRST DISCONNECT AND ISOLATE THE BATTERY NEGATIVE CABLE. THEN WAIT TWO MINUTES FOR THE SYSTEM CAPACITOR TO DISCHARGE BEFORE FURTHER SYSTEM SERVICE. THIS IS THE ONLY SURE WAY TO DISABLE THE AIRBAG SYSTEM. FAILURE TO DO SO COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.
  2. Remove seat cushion side shield (Fig 1 ). Refer to SEATS for the procedure.
    Fig 1: Power Seat Switch and Seat Side Shield
    G03498167Courtesy of DAIMLERCHRYSLER CORP.
  3. Disconnect wiring from switch.
  4. Remove knobs from the switch (Fig 2 ).

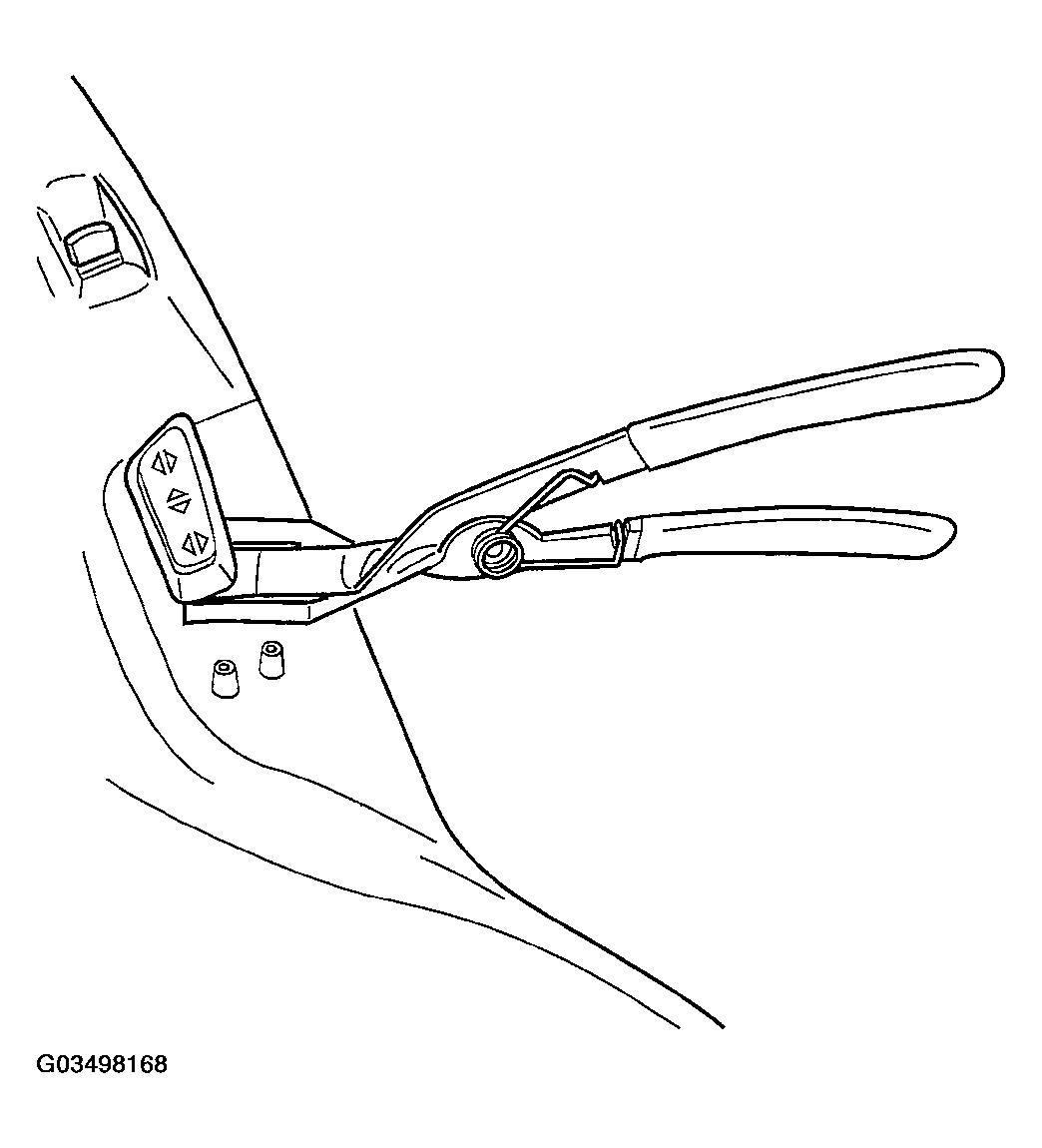

    Fig 2: Removing Switch Control Knobs - Typical
    G03498168Courtesy of DAIMLERCHRYSLER CORP.
  5. Remove switch attaching screws.
  6. Remove switch from cushion side shield
