Front Tow Hook Bracket: Installation

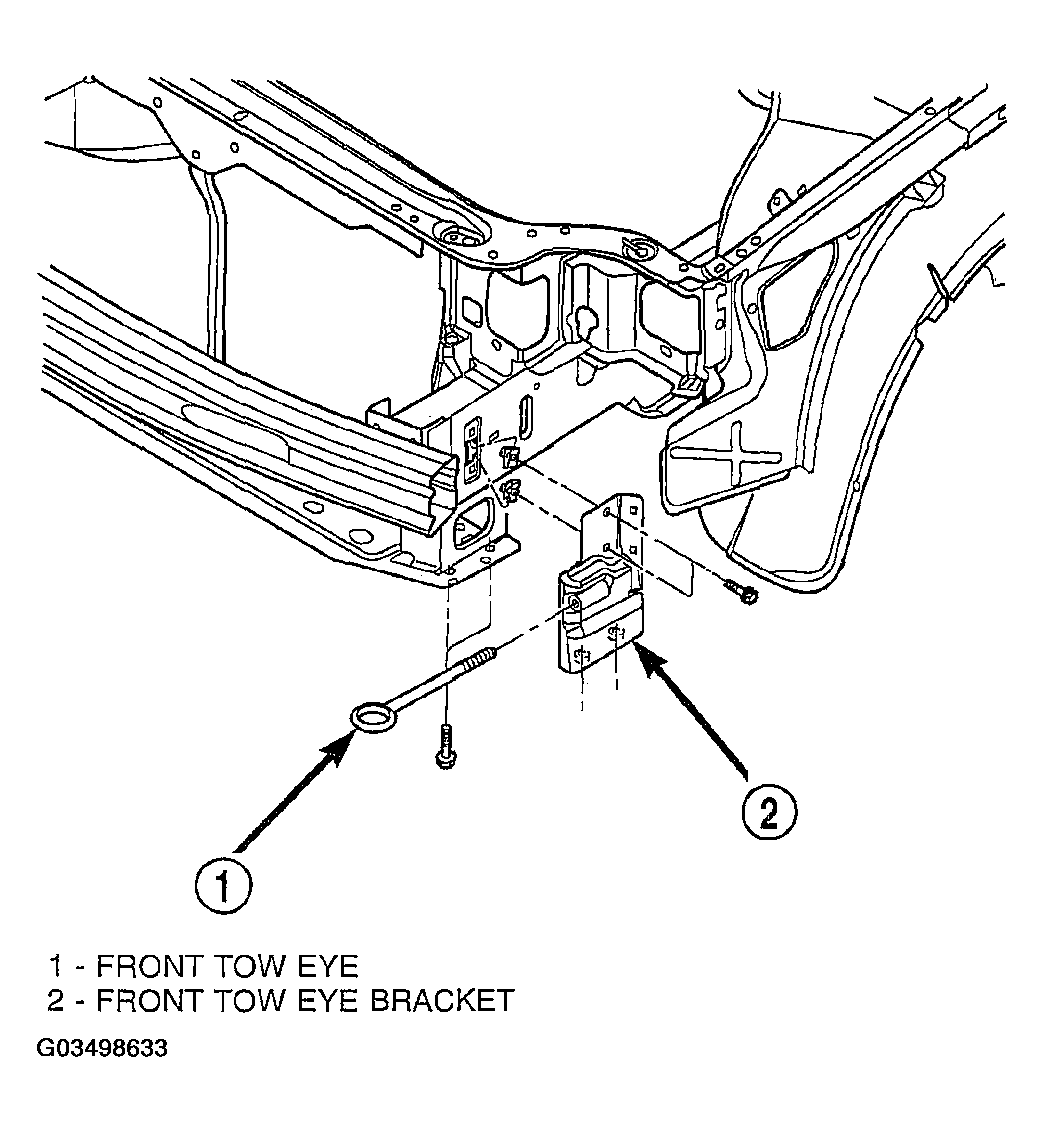

- Install the front tow eye bracket and fasteners. Torque bolts to 23 to 34 N.m (Figure ).
- Reinstall the front fascia as necessary. Refer to FRONT FASCIA for procedure.
- Lower vehicle from the hoist.

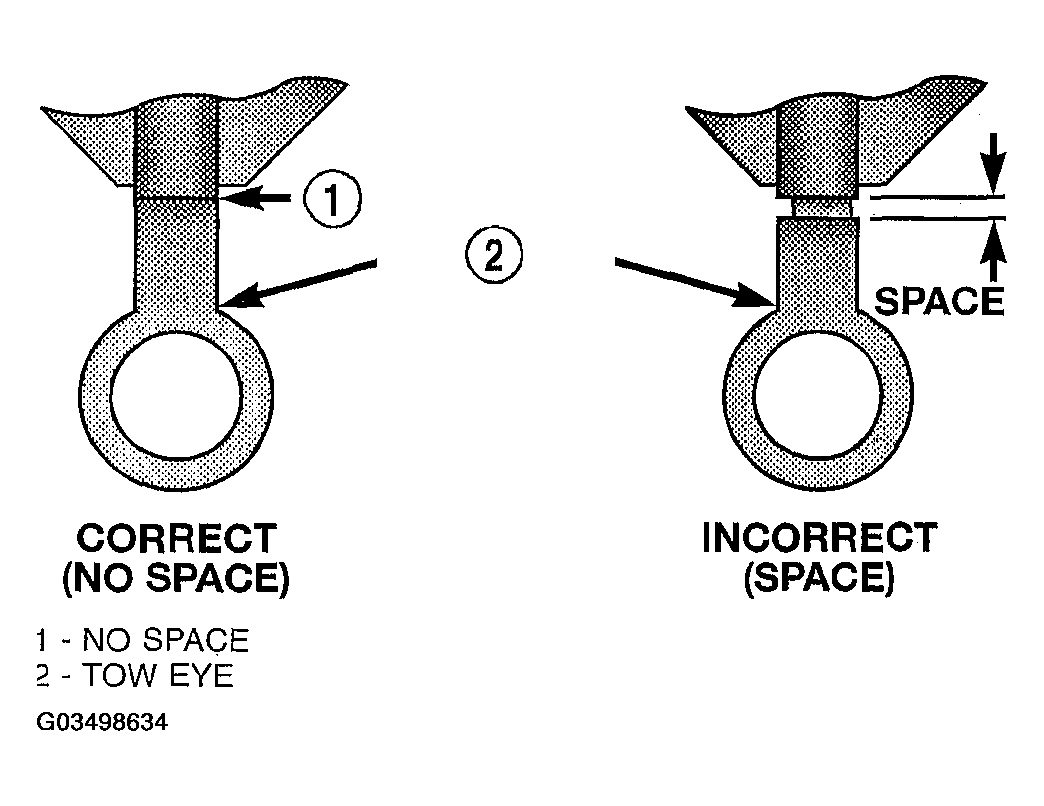

- Install the tow eye into the tow eye bracket. No torque specification is required, hand tighten only (Figure ).
- Reconnect the negative battery cable at the remote battery post.
