Front Fascia: Removal: Removal
- Release hood latch and open hood.

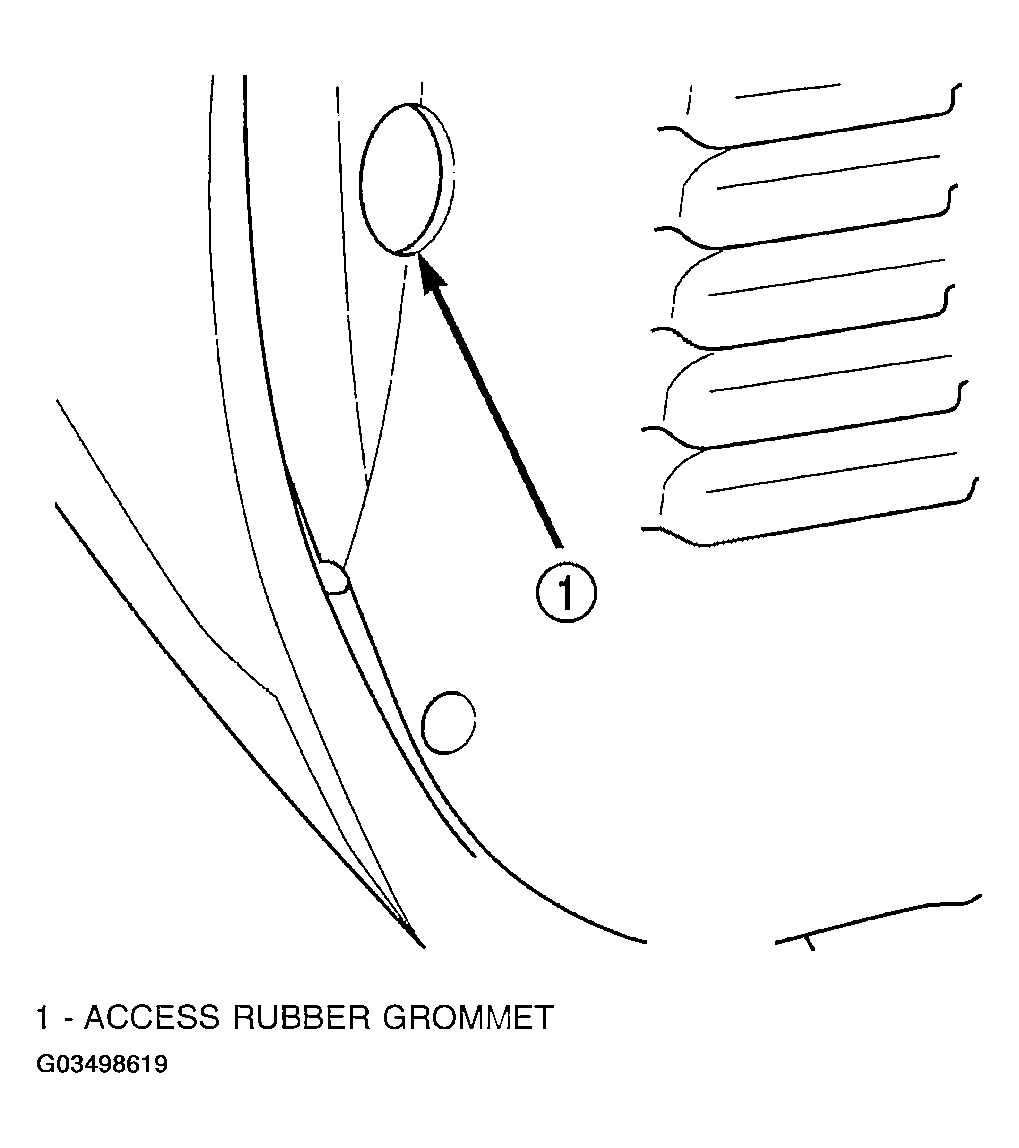

- Remove large rubber grommet (70 mm x 168 mm) from splash shield to gain access to fascia fasteners (Fig 1
).
Courtesy of DAIMLERCHRYSLER CORP.

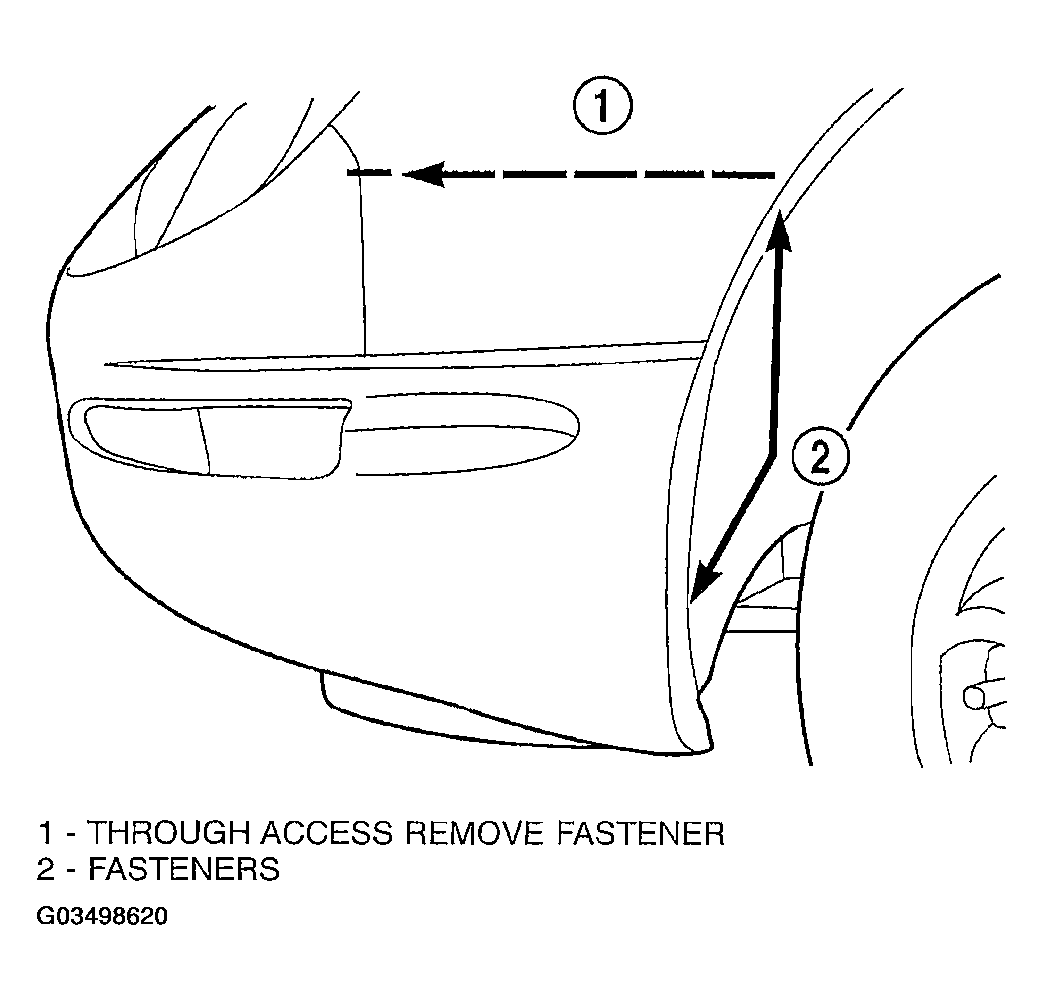

- Remove fasteners attaching fascia to the front fender and splash shield.
- Remove the nuts on the fascia studs through the splash shield access holes on each side (Fig 2
).
Courtesy of DAIMLERCHRYSLER CORP.
- Remove the fasteners attaching the fascia to the lower crossmember (Fig 3
).
Courtesy of DAIMLERCHRYSLER CORP.

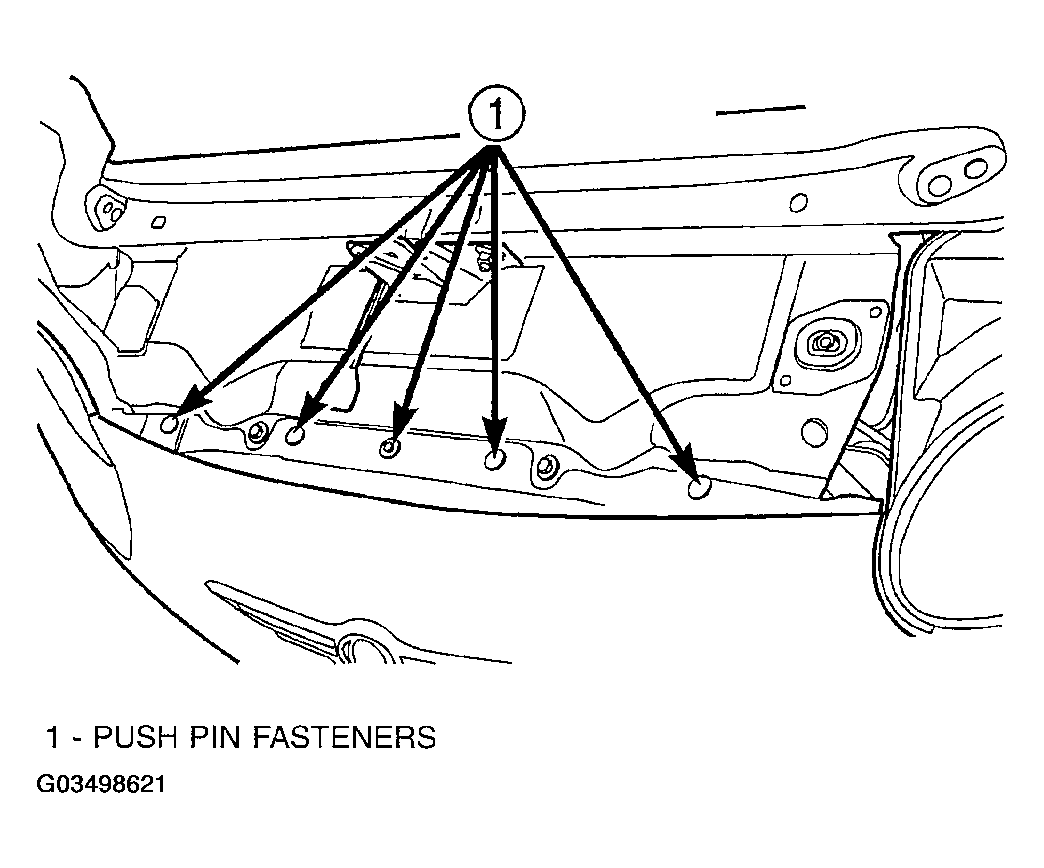

- Remove the fasteners attaching the fascia to the upper radiator closure panel (Fig 3
).

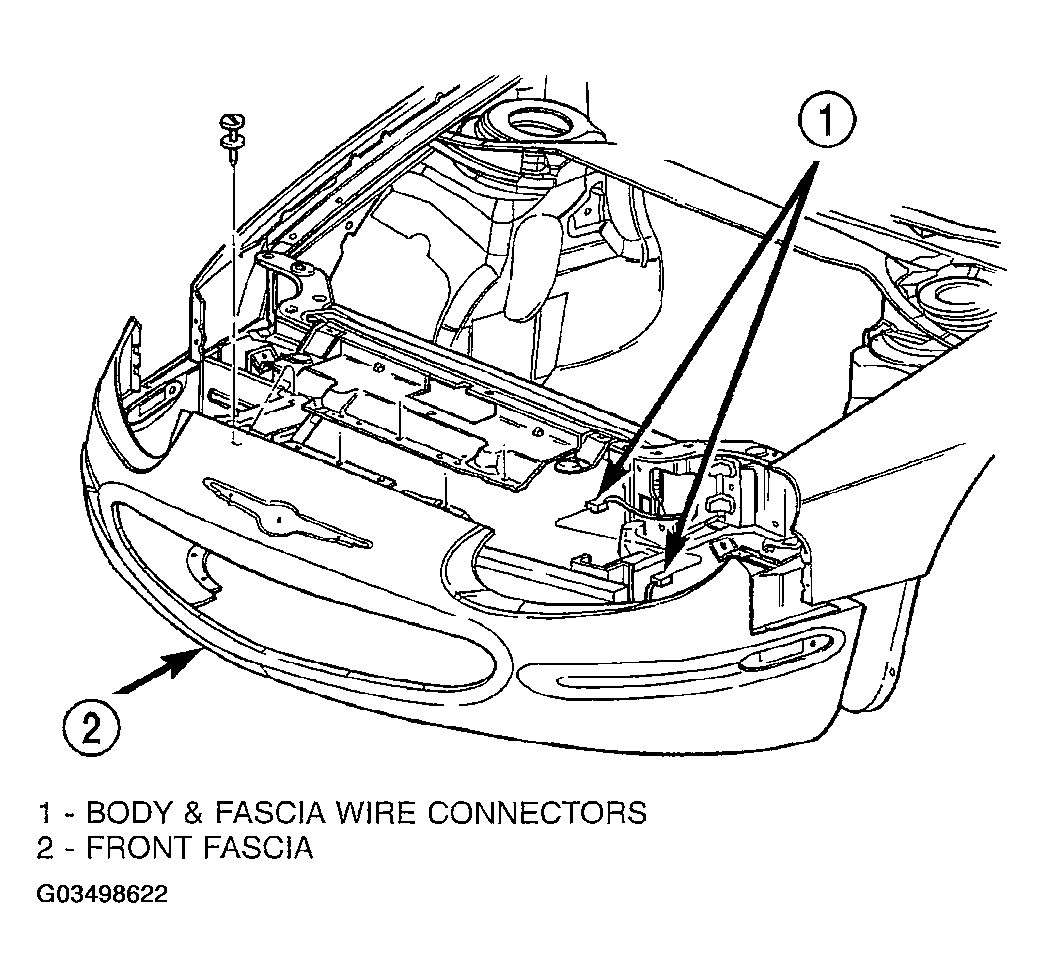

- Disconnect wire connectors (fog lamps, parking/ turn signal, side marker), if equipped (Fig 4
).
Courtesy of DAIMLERCHRYSLER CORP.
- Remove fascia from vehicle.
