Front Bumper Reinforcement: Removal

  1. Remove front fascia.
  2. Remove end plugs in ends of bumper after removing screws in front of bumper.
  3. Remove attaching bolts from bumper reinforcement to adapter plate through ends of the bumper. (Fig 1 ).

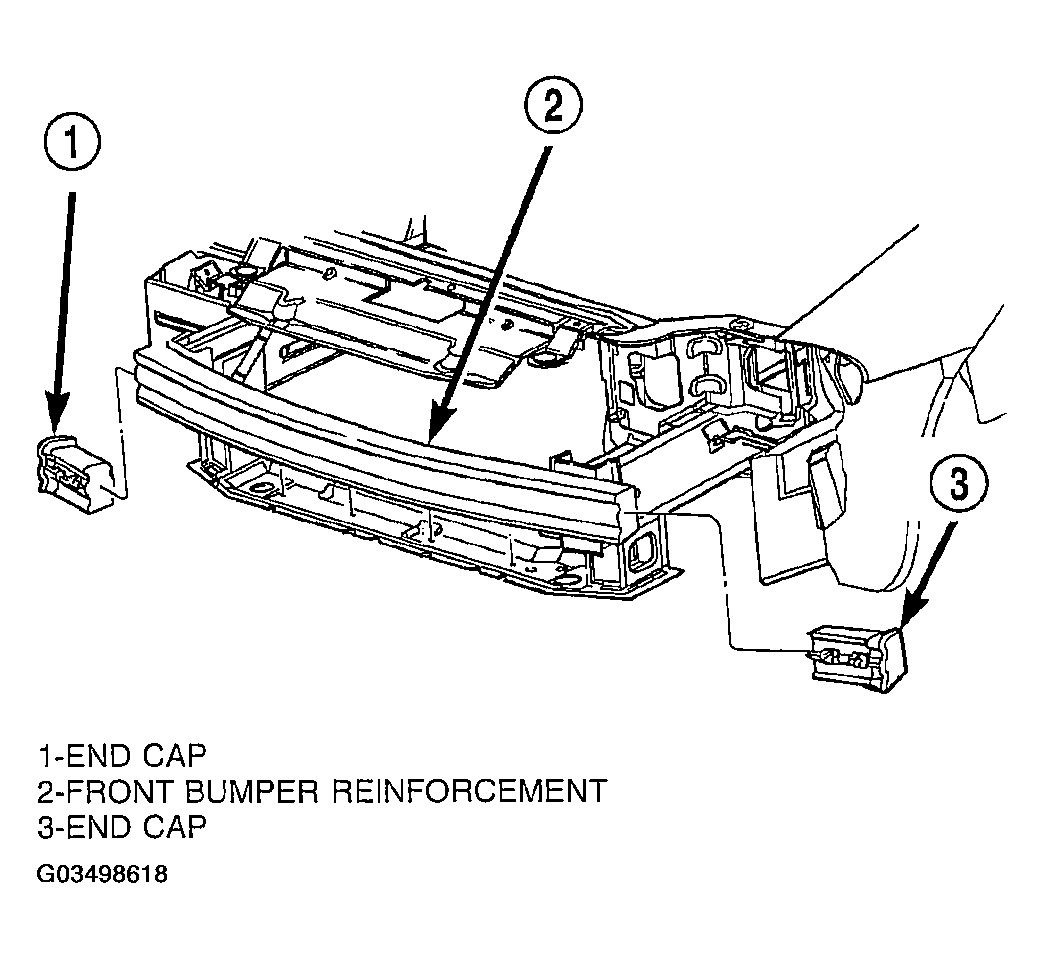

    Fig 1: Front Bumper Reinforcement
    G03498618Courtesy of DAIMLERCHRYSLER CORP.
  4. If beam is damaged, the adapter plate to rail welds will have to be cut off
