Installation - 3.5L

  1. Slide speed control cable into bracket and with locator positioned into notch in bracket, then slide throttle cable into bracket and engage retaining tab.

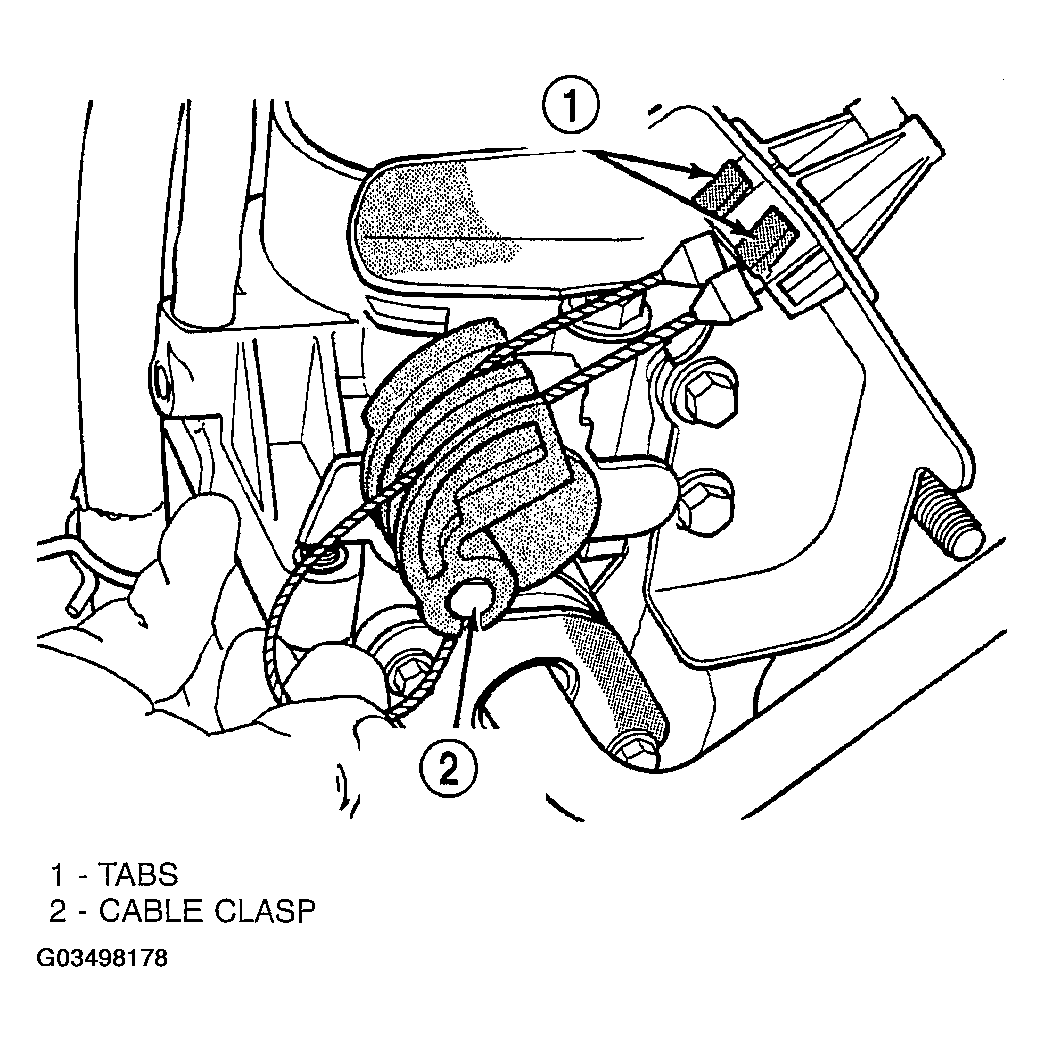

  2. Rotate the throttle cam forward to the wide open position and install speed control cable clasp (Figure ).
  3. Rotate the throttle cam forward to the wide open position and install throttle cable clasp.
  4. Install throttle cable bracket and tighten bolts.
  5. Route cable through bracket and install retaining clip to cable at servo.
  6. Insert servo studs through holes in mounting bracket and speed control cable.
  7. Install nuts, tighten to 6.7 N.m (60 in.lbs.).
  8. Connect vacuum hose to servo.
  9. Connect electrical connector.
  10. Install servo and bracket and tighten bolts.
  11. Connect negative battery cable.
