Passenger Power Window Switch Connector End View

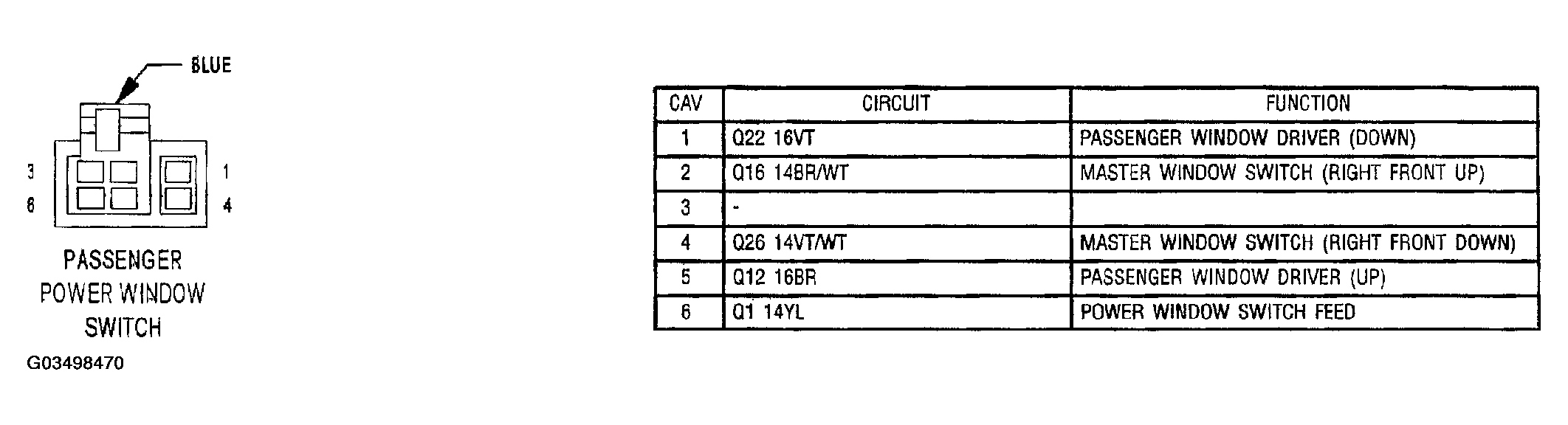

Fig 1: Passenger Power Window Switch Connector End View

G03498470

Courtesy of DAIMLERCHRYSLER CORP.
