Input Speed Sensor Connector End View

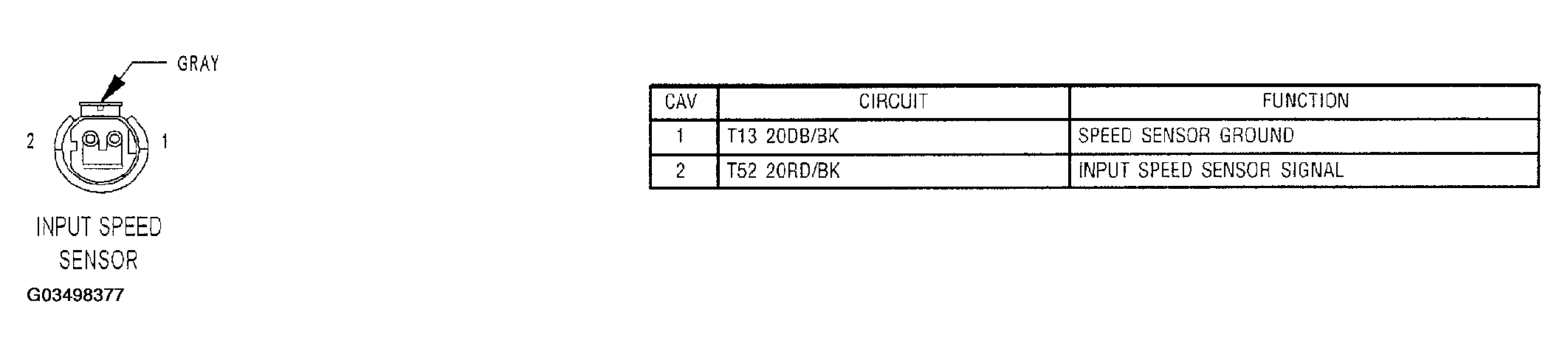

Fig 1: Input Speed Sensor Connector End View

G03498377

Courtesy of DAIMLERCHRYSLER CORP.
