Home >> Chrysler >> 2004 >> Intrepid SXT >> Repair and Diagnosis (Single Page) >> Electrical >> Body Electrical >> Connector End Views >> Connector End Views >> Driver Power Window Switch Connector End View

Driver Power Window Switch Connector End View

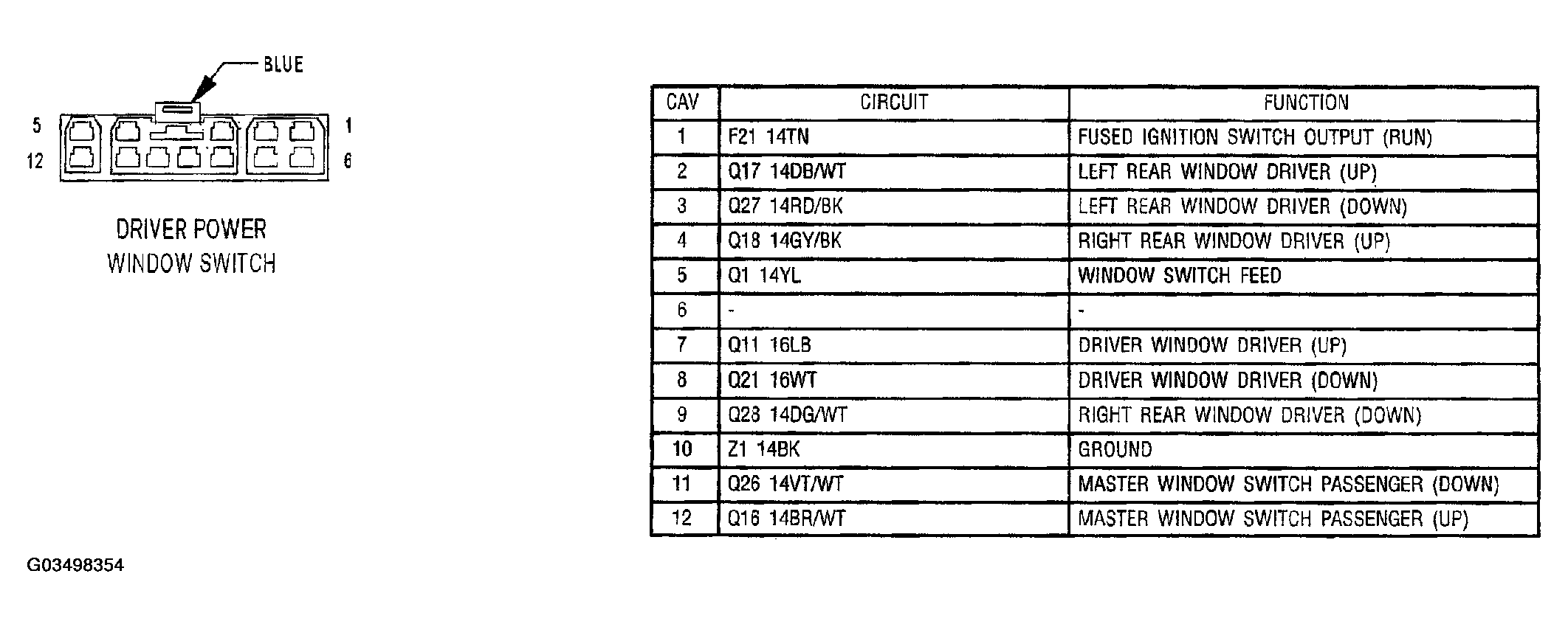

Fig 1: Driver Power Window Switch Connector End View

G03498354

Courtesy of DAIMLERCHRYSLER CORP.
