Right Rear Wheel Speed Sensor Connector End View

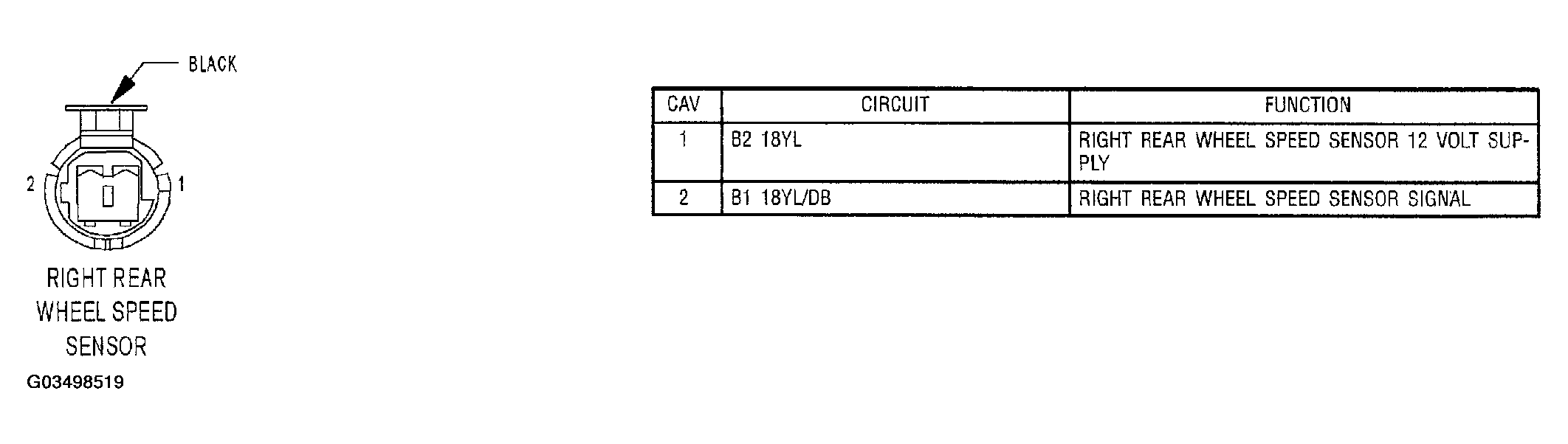

Fig 1: Right Rear Wheel Speed Sensor Connector End View

G03498519

Courtesy of DAIMLERCHRYSLER CORP.
